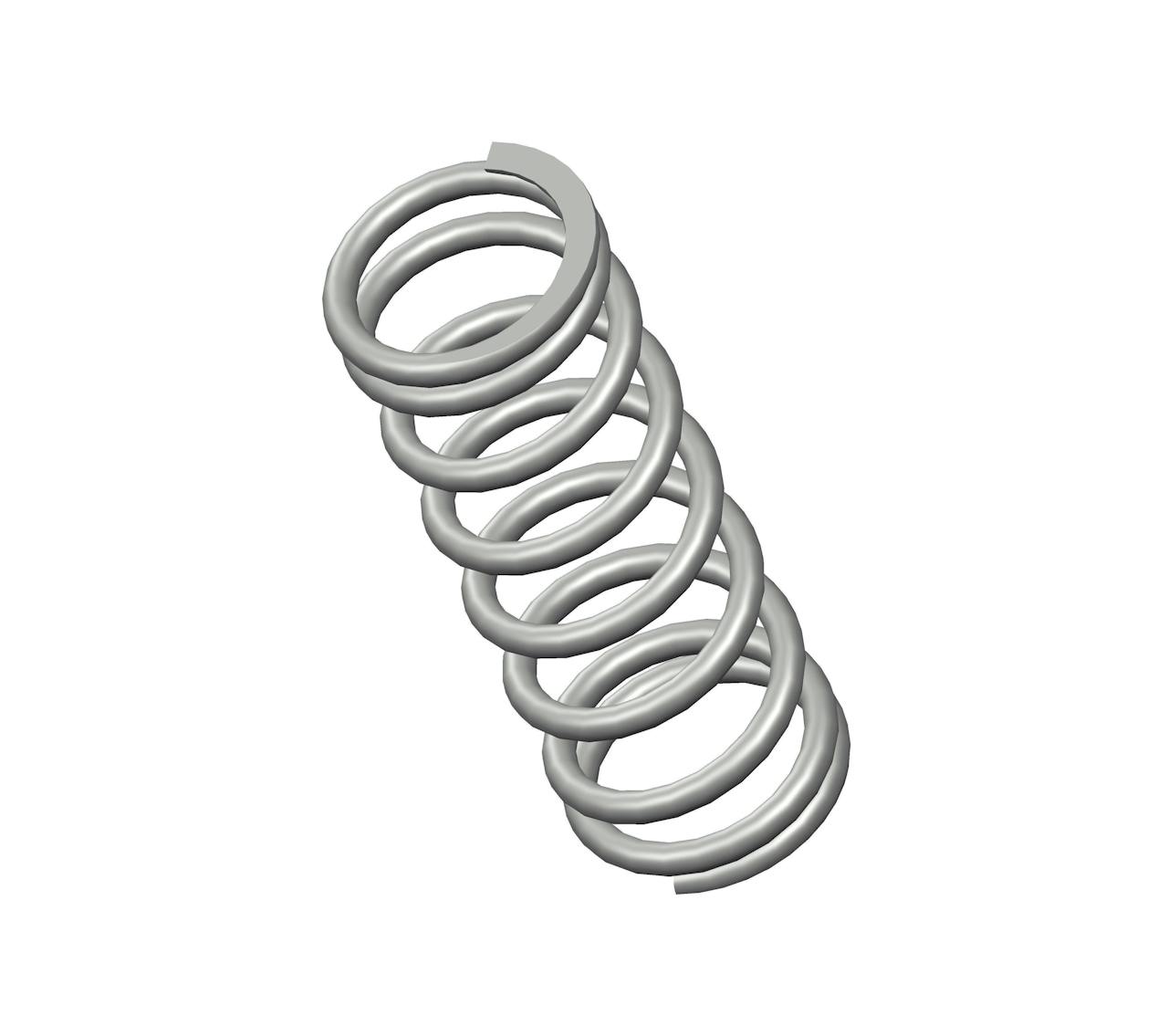

PP-28CS - 0.97" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 8.5 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.263".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | PP-28 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.97 in |
| Inside Diameter | 0.263 in |
| Material | Spring Steel |
| Outside Diameter | 0.343 in |
| Part Type | Standard |
| Rate | 20 lbs/in |
| SKU | PP-28CS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 7.1 lbf |
| Total Coils | 8.5 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | PP-28 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 24.64 mm |
| Inside Diameter | 6.68 mm |
| Material | Spring Steel |
| Outside Diameter | 8.71 mm |
| Part Type | Standard |
| Rate | 3.5 N/mm |
| SKU | PP-28CS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 31.58 N |
| Total Coils | 8.5 |
| Wire Diameter | 1.02 mm |
The compression spring PP-28CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the PP-28 compression spring design exhibits exceptional tensile strength and resilience.
The PP-28 design is manufactured with a free length of 0.97", with an outer diameter of 0.343", an inner diameter of 0.263", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 20 lbs/in.
The PP-28CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring PP-28 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The PP-28 design is manufactured with a free length of 0.97", with an outer diameter of 0.343", an inner diameter of 0.263", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 20 lbs/in.
The PP-28CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring PP-28 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
