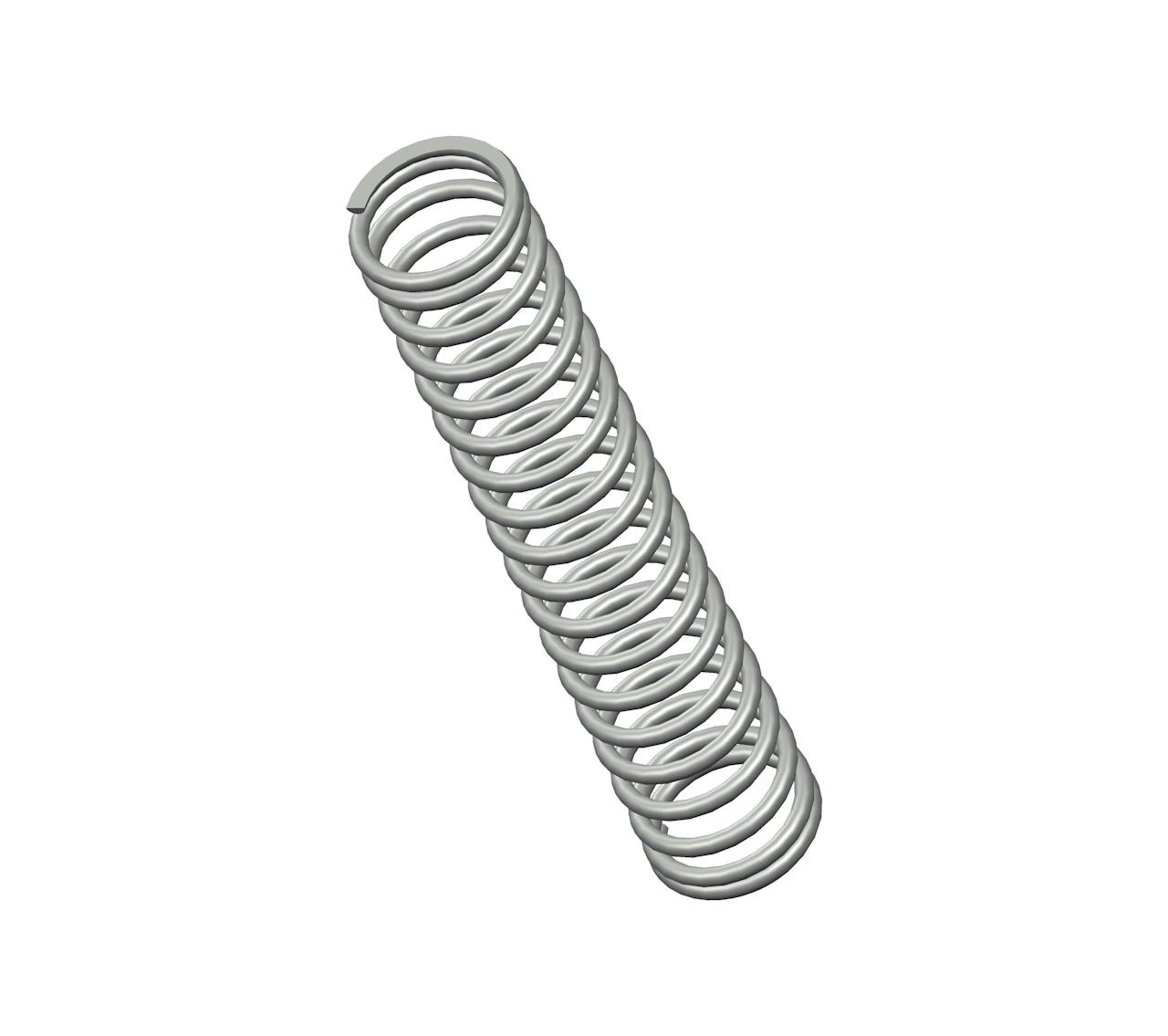

OO-91CS - 2" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 19 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.295".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-91 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2 in |
| Inside Diameter | 0.295 in |
| Material | Spring Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 5.8 lbs/in |
| SKU | OO-91CS |
| Solid Length | 0.76 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 6.5 lbf |
| Total Coils | 19 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-91 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 50.8 mm |
| Inside Diameter | 7.49 mm |
| Material | Spring Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 1.02 N/mm |
| SKU | OO-91CS |
| Solid Length | 19.3 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 28.91 N |
| Total Coils | 19 |
| Wire Diameter | 1.02 mm |
The compression spring OO-91CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the OO-91 compression spring design exhibits exceptional tensile strength and resilience.
The OO-91 design is manufactured with a free length of 2", with an outer diameter of 0.375", an inner diameter of 0.295", and a total of 19 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.8 lbs/in.
The OO-91CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring OO-91 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
