Century Spring

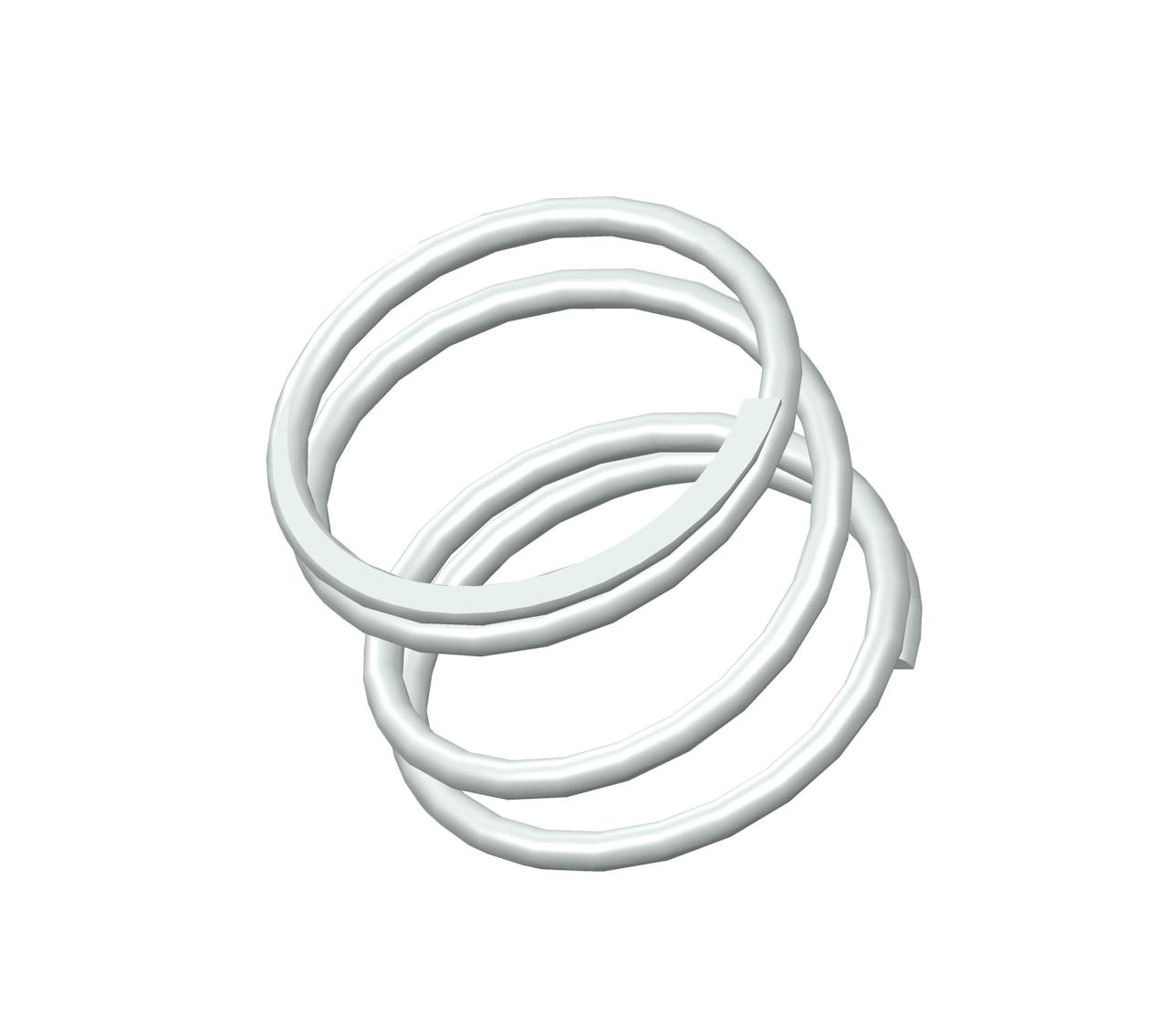

OO-86CS - 0.38" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.414".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name OO-86
Ends Closed & Ground
Finish None
Free Length 0.38 in
Inside Diameter 0.414 in
Material 302/304 Stainless Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 10 lbs/in
SKU OO-86CS
Solid Length 0.14 in
Suggested Max Deflection 0.24 in
Suggested Max Load 2.4 lbf
Total Coils 4
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name OO-86
Ends Closed & Ground
Finish None
Free Length 9.65 mm
Inside Diameter 10.52 mm
Material 302/304 Stainless Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 1.75 N/mm
SKU OO-86CS
Solid Length 3.56 mm
Suggested Max Deflection 6.1 mm
Suggested Max Load 10.68 N
Total Coils 4
Wire Diameter 0.89 mm
The compression spring OO-86CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the OO-86 compression spring design exhibits exceptional tensile strength and resilience.

The OO-86 design is manufactured with a free length of 0.38", with an outer diameter of 0.484", an inner diameter of 0.414", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 10 lbs/in.

The OO-86CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring OO-86 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
