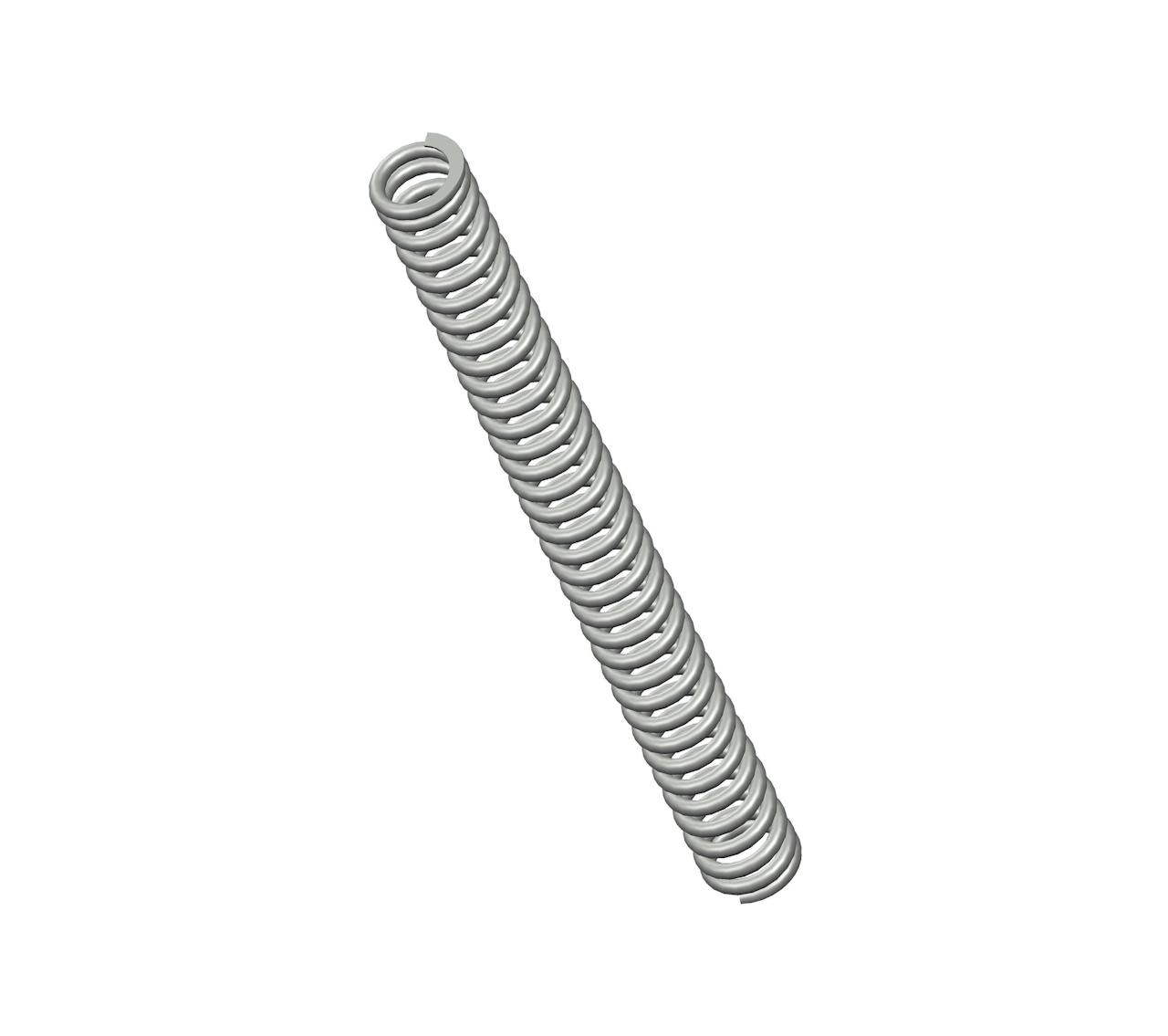

OO-56CS - 2.66" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 34.5 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.17".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-56 |
| Ends | Closed & Ground |
| Finish | Black Oxide |
| Free Length | 2.66 in |
| Inside Diameter | 0.17 in |
| Material | Spring Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | OO-56CS |
| Solid Length | 1.38 in |
| Suggested Max Deflection | 0.77 in |
| Suggested Max Load | 9.5 lbf |
| Total Coils | 34.5 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-56 |
| Ends | Closed & Ground |
| Finish | Black Oxide |
| Free Length | 67.56 mm |
| Inside Diameter | 4.32 mm |
| Material | Spring Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | OO-56CS |
| Solid Length | 35.05 mm |
| Suggested Max Deflection | 19.56 mm |
| Suggested Max Load | 42.26 N |
| Total Coils | 34.5 |
| Wire Diameter | 1.02 mm |
The OO-56 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The OO-56CS compression spring is designed with a free length of 1.28" total of 10 coils, and a rate of 6.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The OO-56 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The OO-56CS compression spring is designed with a free length of 1.28" total of 10 coils, and a rate of 6.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The OO-56 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
