OO-33CS - 0.75" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

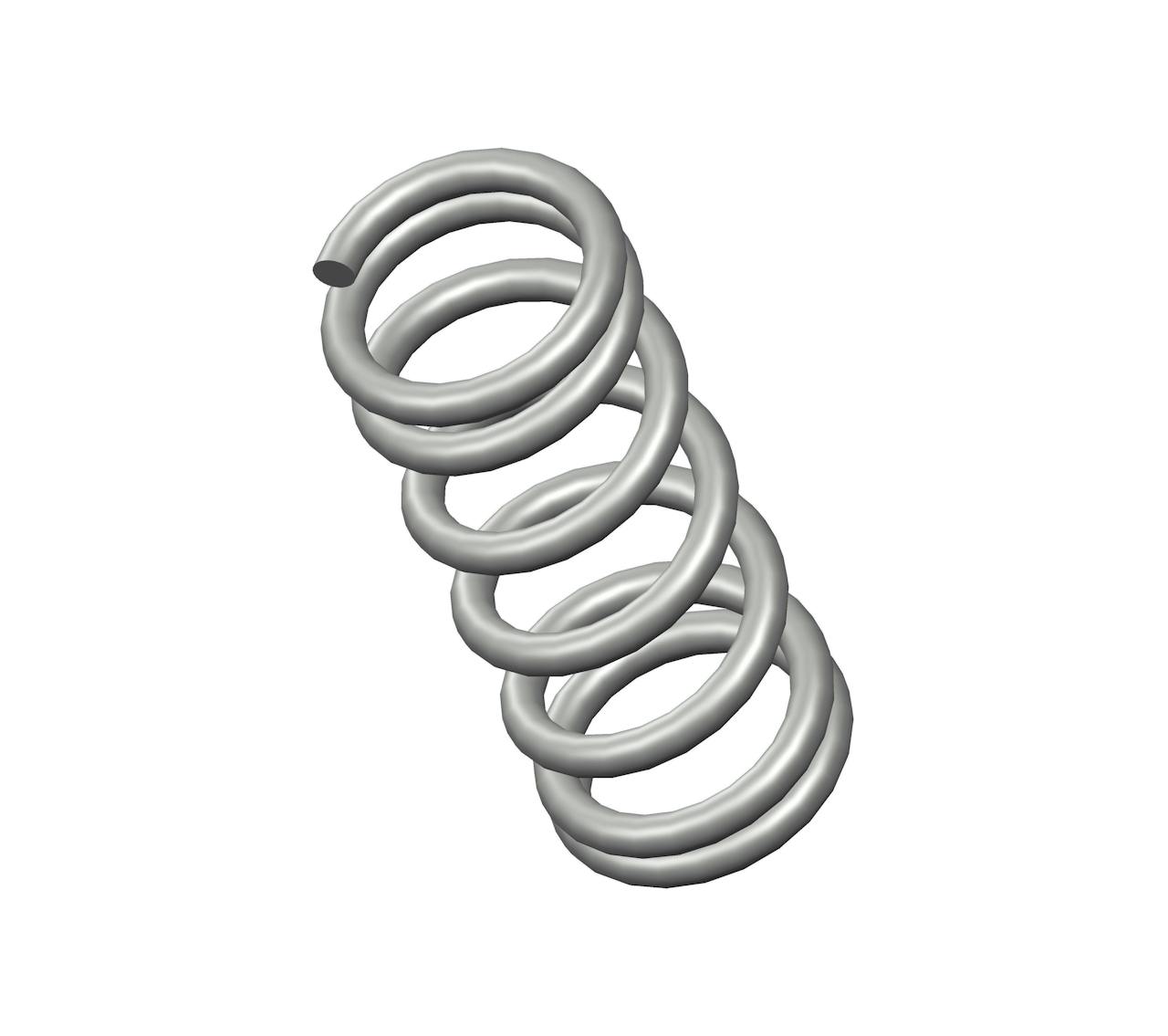

Compression spring manufactured from spring steel with 7 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.216".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-33 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.75 in |
| Inside Diameter | 0.216 in |
| Material | Spring Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 44 lbs/in |
| SKU | OO-33CS |
| Solid Length | 0.32 in |
| Suggested Max Deflection | 0.19 in |
| Suggested Max Load | 8.1 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-33 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 19.05 mm |
| Inside Diameter | 5.49 mm |
| Material | Spring Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 7.7 N/mm |
| SKU | OO-33CS |
| Solid Length | 8.13 mm |
| Suggested Max Deflection | 4.83 mm |
| Suggested Max Load | 36.03 N |
| Total Coils | 7 |
| Wire Diameter | 1.02 mm |
The compression spring OO-33CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the OO-33 compression spring design exhibits exceptional tensile strength and resilience.
The OO-33 design is manufactured with a free length of 0.75", with an outer diameter of 0.296", an inner diameter of 0.216", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The OO-33CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring OO-33 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The OO-33 design is manufactured with a free length of 0.75", with an outer diameter of 0.296", an inner diameter of 0.216", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The OO-33CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring OO-33 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
