OO-29CS - 0.84" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

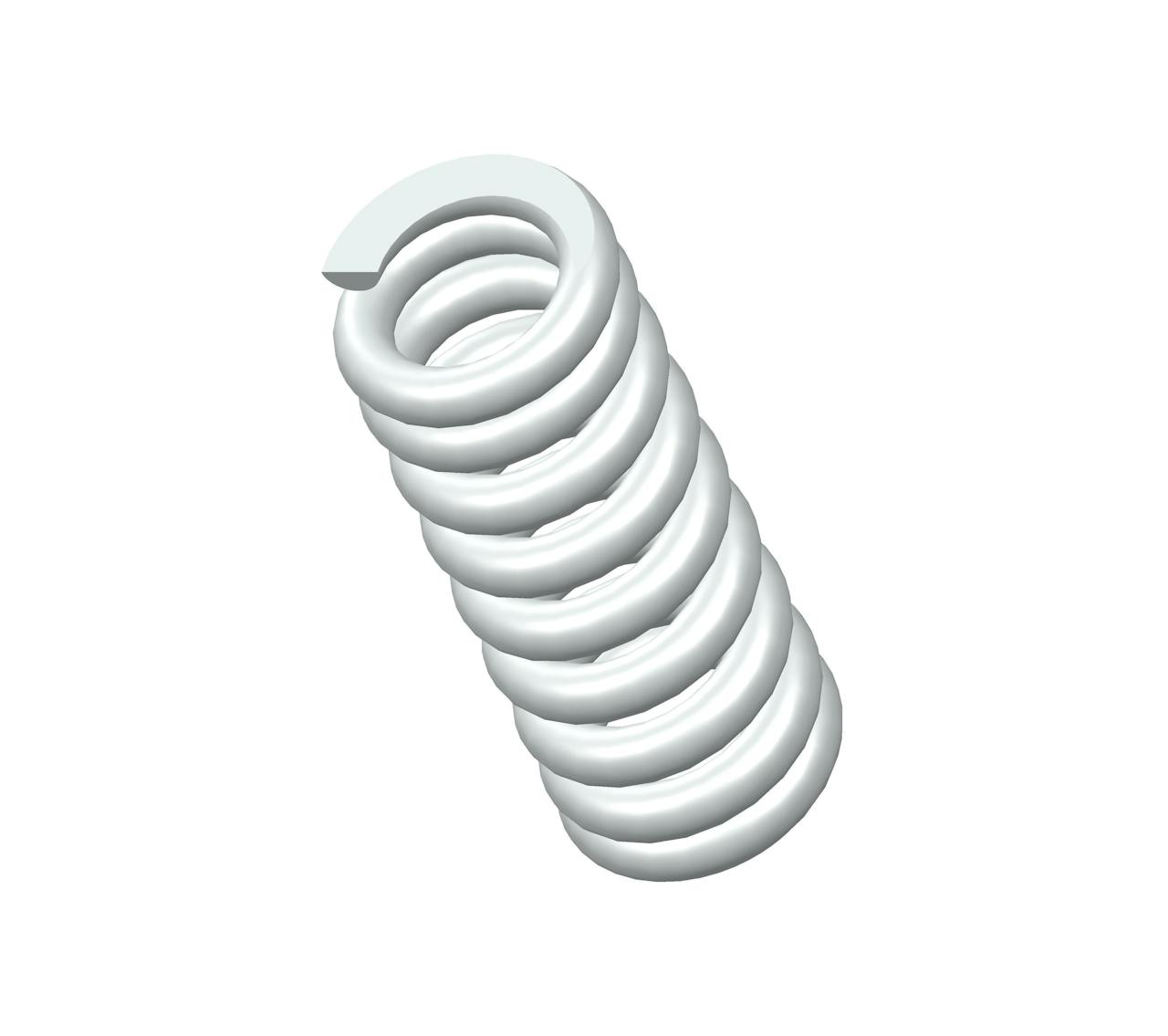

Compression spring manufactured from 302/304 stainless steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.198".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-29 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.84 in |
| Inside Diameter | 0.198 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 175 lbs/in |
| SKU | OO-29CS |
| Solid Length | 0.59 in |
| Suggested Max Deflection | 0.15 in |
| Suggested Max Load | 26 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.065 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-29 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 21.34 mm |
| Inside Diameter | 5.03 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 30.64 N/mm |
| SKU | OO-29CS |
| Solid Length | 14.99 mm |
| Suggested Max Deflection | 3.81 mm |
| Suggested Max Load | 115.65 N |
| Total Coils | 9 |
| Wire Diameter | 1.65 mm |
The compression spring OO-29CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the OO-29 compression spring design exhibits exceptional tensile strength and resilience.
The OO-29 design is manufactured with a free length of 0.84", with an outer diameter of 0.328", an inner diameter of 0.198", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 175 lbs/in.
The OO-29CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring OO-29 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The OO-29 design is manufactured with a free length of 0.84", with an outer diameter of 0.328", an inner diameter of 0.198", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 175 lbs/in.
The OO-29CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring OO-29 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
