Century Spring

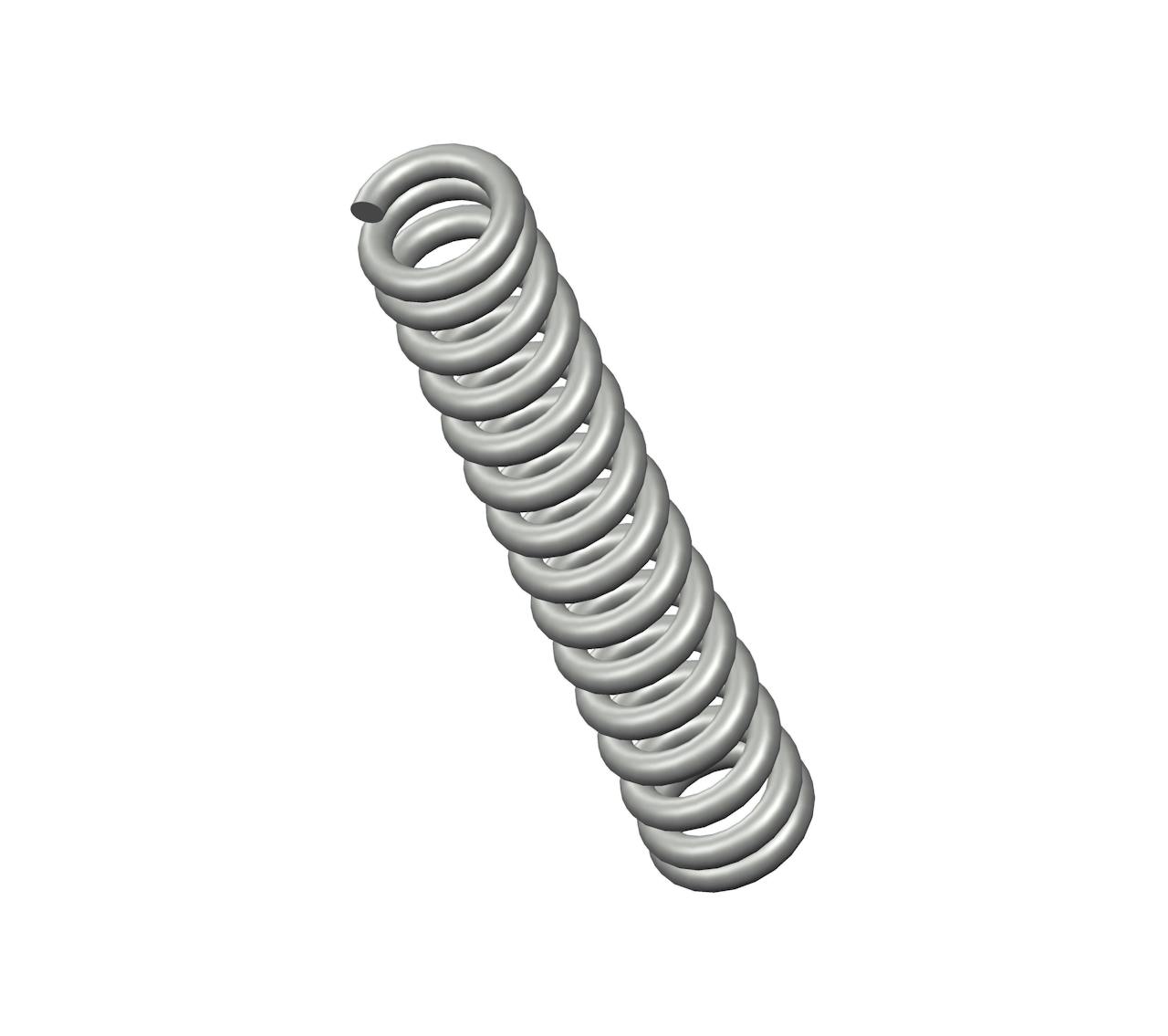

OO-17CS - 0.88" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 15 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.096".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name OO-17
Ends Closed
Finish None
Free Length 0.88 in
Inside Diameter 0.096 in
Material Music Wire
Outside Diameter 0.156 in
Part Type Standard
Rate 45 lbs/in
SKU OO-17CS
Solid Length 0.48 in
Suggested Max Deflection 0.2 in
Suggested Max Load 9.1 lbf
Total Coils 15
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name OO-17
Ends Closed
Finish None
Free Length 22.35 mm
Inside Diameter 2.44 mm
Material Music Wire
Outside Diameter 3.96 mm
Part Type Standard
Rate 7.88 N/mm
SKU OO-17CS
Solid Length 12.19 mm
Suggested Max Deflection 5.08 mm
Suggested Max Load 40.48 N
Total Coils 15
Wire Diameter 0.76 mm
The OO-17CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.03" diameter music wire, the OO-17 spring design exhibits reliable strength across its 15 active coils, withstanding repeated compression cycles with a maximum load of 9.1 lbf without succumbing to fatigue.

We manufacture the OO-17 design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 45 lbs/in along its recommended maximum of 0.2" deflection. For best results, your application should fully accommodate the inner (0.096") and outer (0.156") diameters of this spring and be designed for its closed end configuration.
