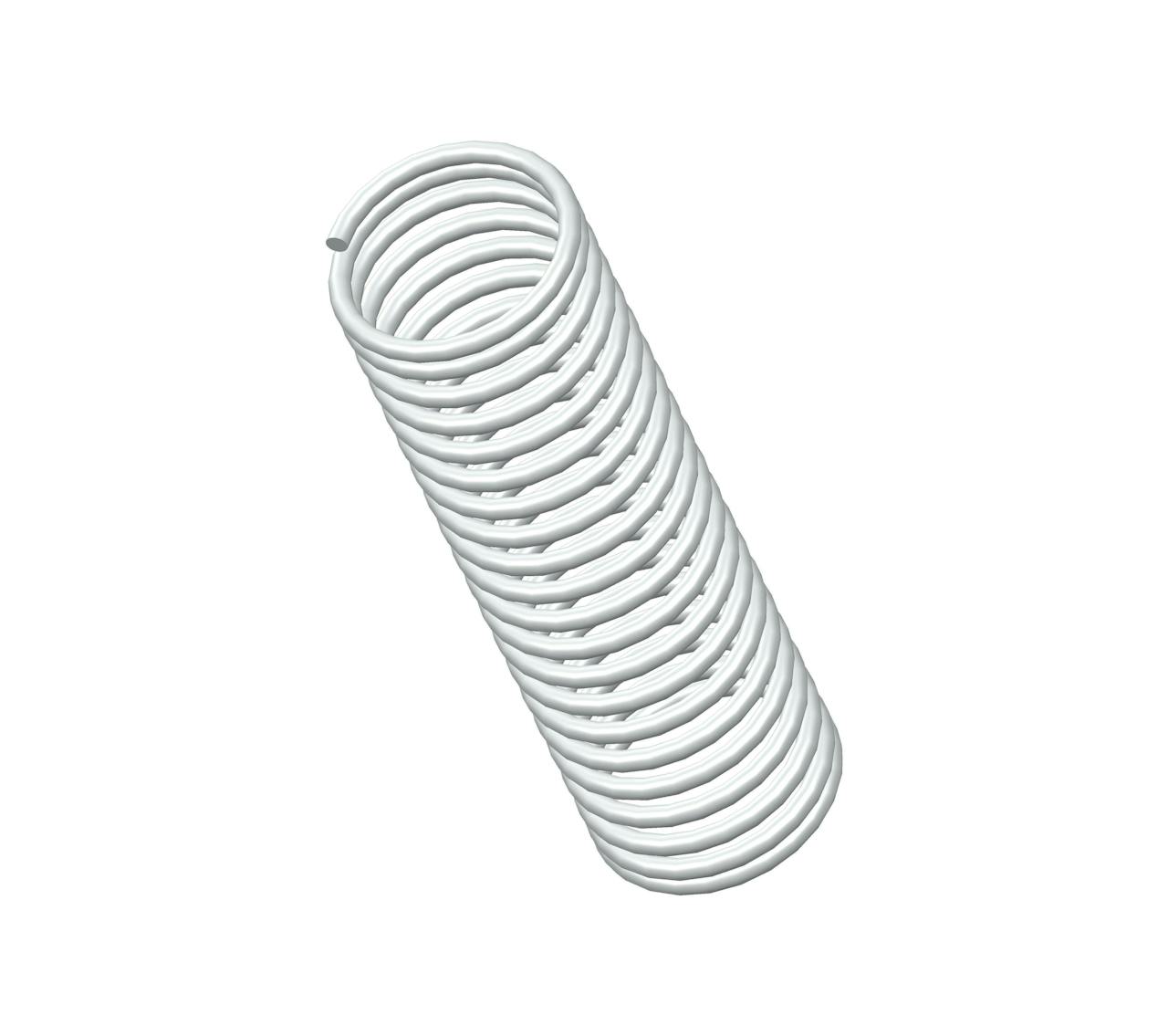

OO-11CS - 0.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 21 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.156".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-11 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.156 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 0.86 lbs/in |
| SKU | OO-11CS |
| Solid Length | 0.35 in |
| Suggested Max Deflection | 0.27 in |
| Suggested Max Load | 0.24 lbf |
| Total Coils | 21 |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | OO-11 |
| Ends | Closed |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 3.96 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.15 N/mm |
| SKU | OO-11CS |
| Solid Length | 8.89 mm |
| Suggested Max Deflection | 6.86 mm |
| Suggested Max Load | 1.07 N |
| Total Coils | 21 |
| Wire Diameter | 0.41 mm |
The OO-11 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The OO-11CS compression spring is designed with a free length of 0.31" total of 8.75 coils, and a rate of 82 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The OO-11 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The OO-11CS compression spring is designed with a free length of 0.31" total of 8.75 coils, and a rate of 82 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The OO-11 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
