Century Spring

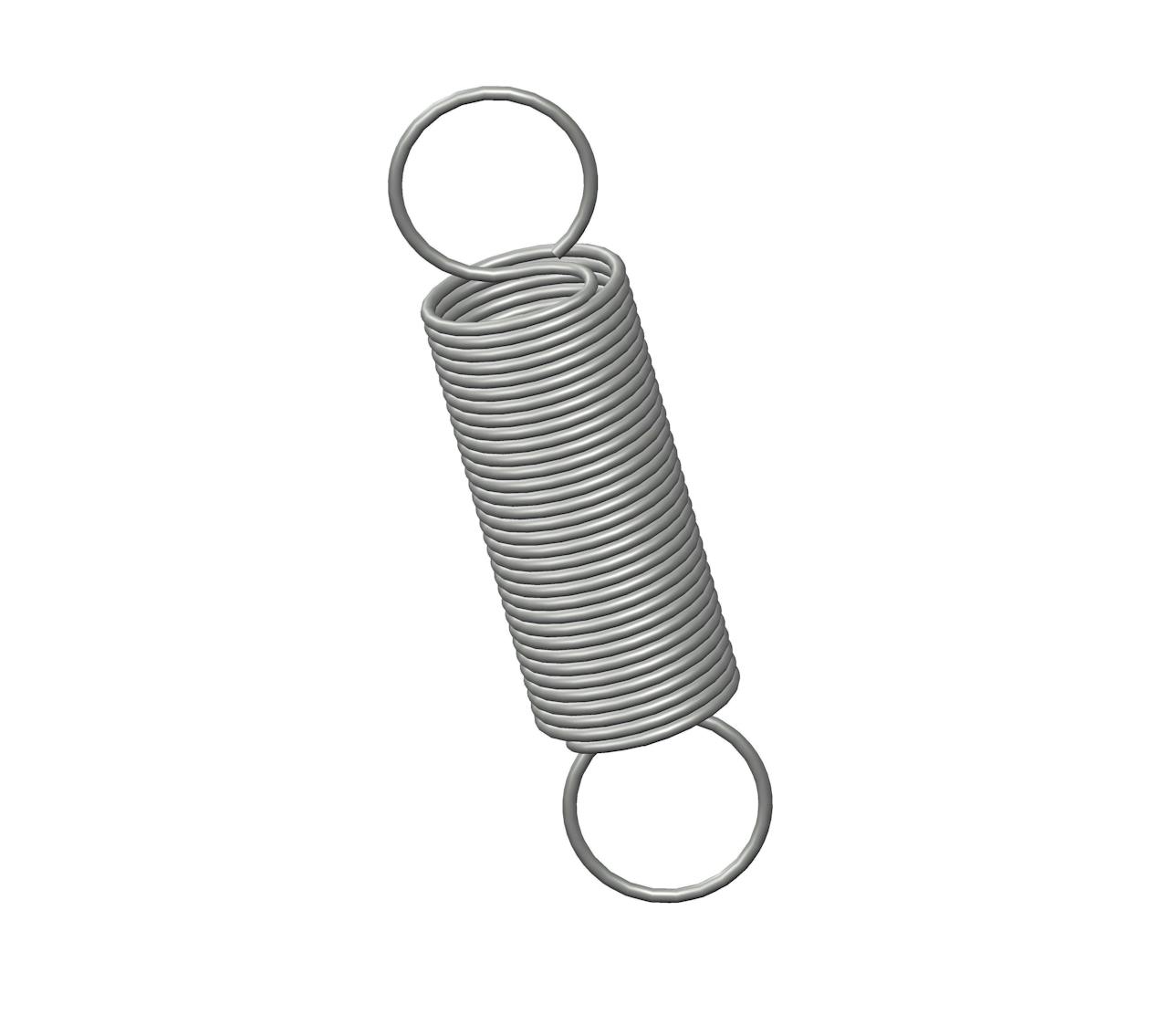

O-91CS - 2.59 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.625 Inch and an initial tension of 0.4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name O-91
Ends Full Loop
Finish None
Initial Tension 0.4 lb
Length 2.59 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 0.57 lbs/in
SKU O-91CS
Sugg Max Deflection 7 in
Sugg Max Load 4.4 lbf
Wind Direction Left
Wire Diameter 0.043 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name O-91
Ends Full Loop
Finish None
Initial Tension 0.18 kg
Length 65.79 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 0.1 N/mm
SKU O-91CS
Sugg Max Deflection 177.8 mm
Sugg Max Load 19.57 N
Wind Direction Left
Wire Diameter 1.09 mm
