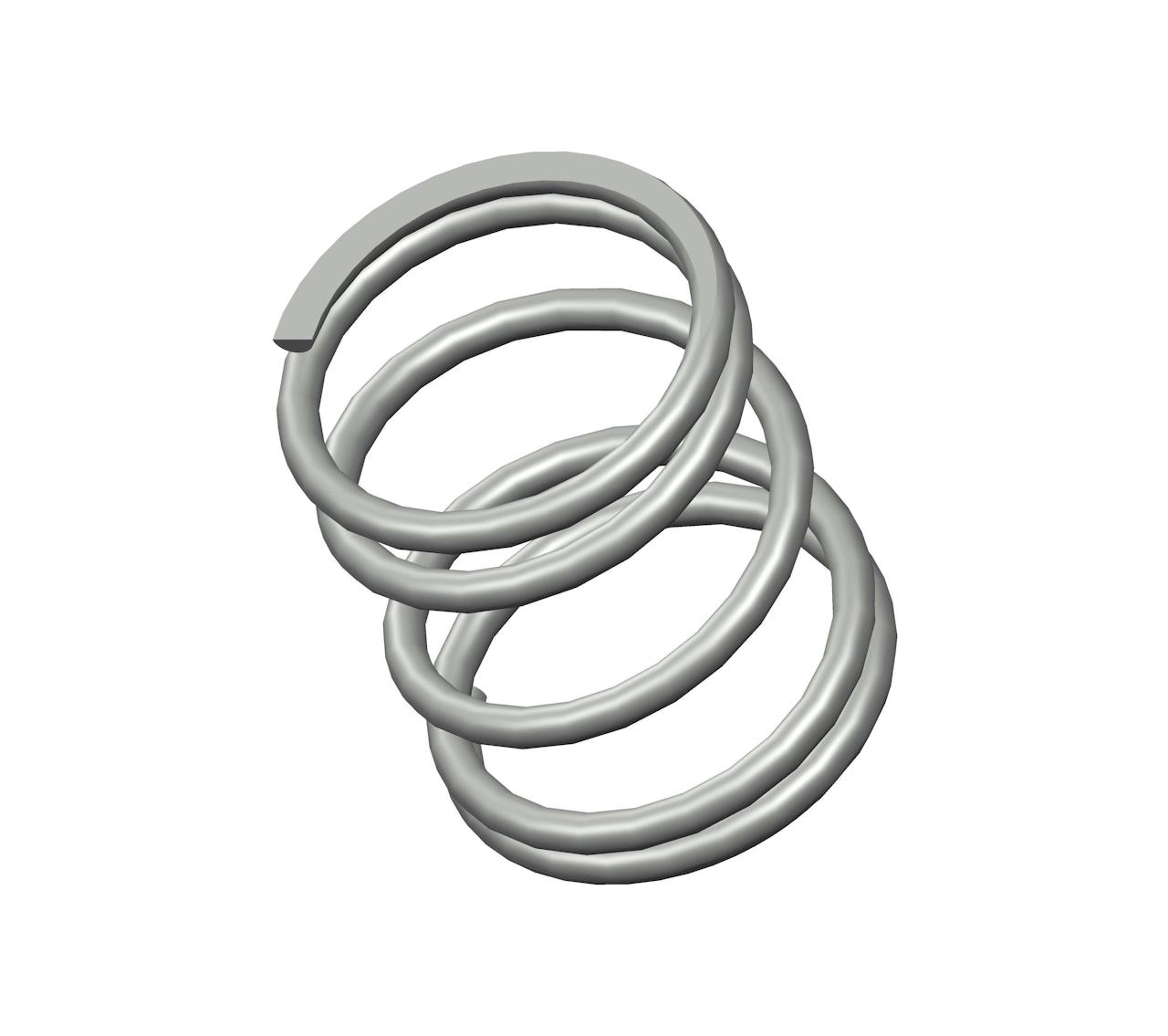

O-79CS - 0.59" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.412".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-79 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.59 in |
| Inside Diameter | 0.412 in |
| Material | Spring Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 19 lbs/in |
| SKU | O-79CS |
| Solid Length | 0.22 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 6.6 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.044 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-79 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 14.99 mm |
| Inside Diameter | 10.46 mm |
| Material | Spring Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 3.33 N/mm |
| SKU | O-79CS |
| Solid Length | 5.59 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 29.36 N |
| Total Coils | 5 |
| Wire Diameter | 1.12 mm |
The compression spring O-79CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the O-79 compression spring design exhibits exceptional tensile strength and resilience.
The O-79 design is manufactured with a free length of 0.59", with an outer diameter of 0.5", an inner diameter of 0.412", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The O-79CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring O-79 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The O-79 design is manufactured with a free length of 0.59", with an outer diameter of 0.5", an inner diameter of 0.412", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The O-79CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring O-79 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
