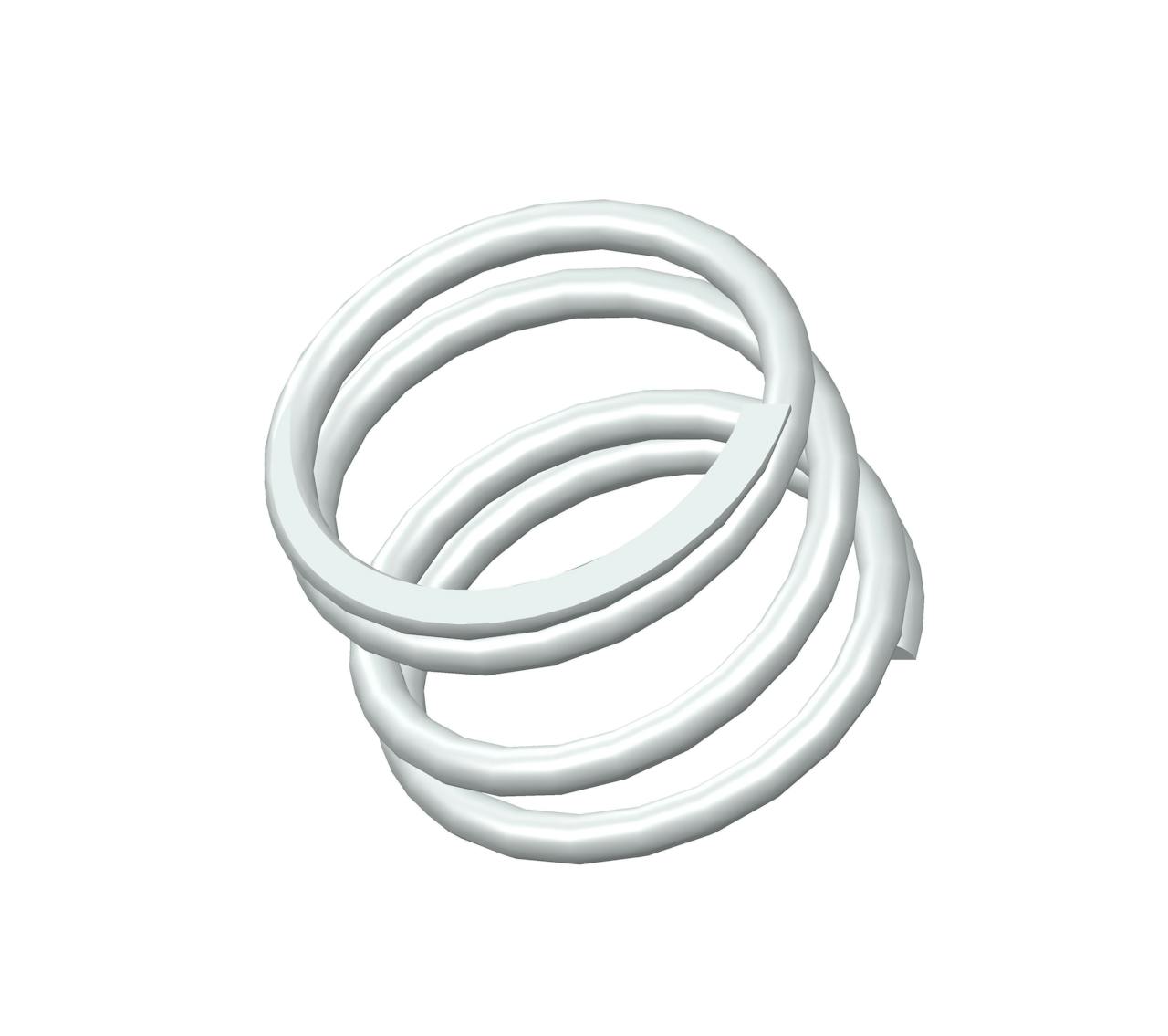

O-73CS - 0.44" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.609", and an I.D. of 0.501".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-73 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.44 in |
| Inside Diameter | 0.501 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.609 in |
| Part Type | Standard |
| Rate | 31 lbs/in |
| SKU | O-73CS |
| Solid Length | 0.22 in |
| Suggested Max Deflection | 0.22 in |
| Suggested Max Load | 6.9 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.054 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-73 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 11.18 mm |
| Inside Diameter | 12.73 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 15.47 mm |
| Part Type | Standard |
| Rate | 5.43 N/mm |
| SKU | O-73CS |
| Solid Length | 5.59 mm |
| Suggested Max Deflection | 5.59 mm |
| Suggested Max Load | 30.69 N |
| Total Coils | 4 |
| Wire Diameter | 1.37 mm |
The compression spring O-73CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the O-73 compression spring design exhibits exceptional tensile strength and resilience.
The O-73 design is manufactured with a free length of 0.44", with an outer diameter of 0.609", an inner diameter of 0.501", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The O-73CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring O-73 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
