O-71CS - 0.38" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

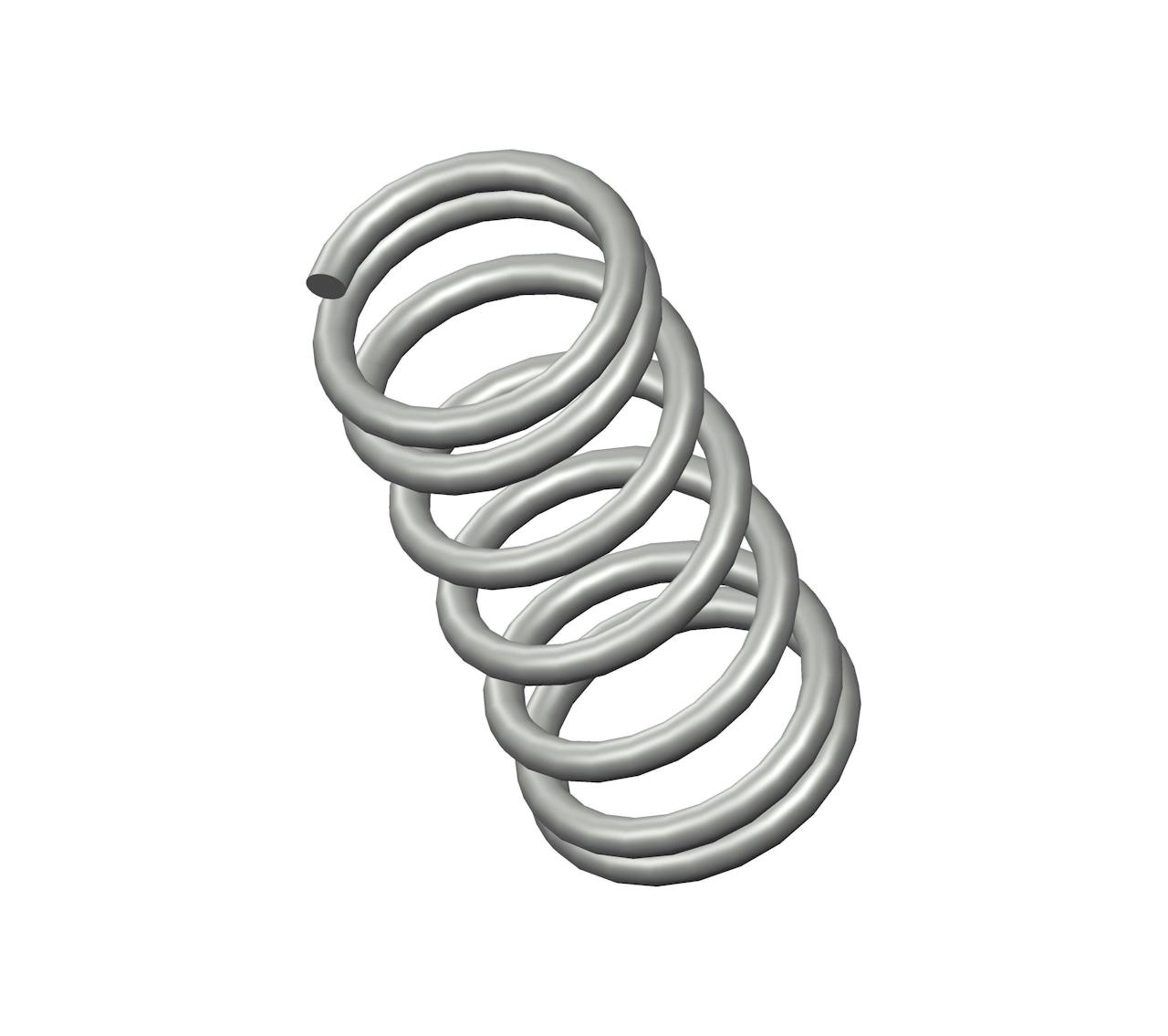

Compression spring manufactured from music wire with 7 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.132".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-71 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.38 in |
| Inside Diameter | 0.132 in |
| Material | Music Wire |
| Outside Diameter | 0.172 in |
| Part Type | Standard |
| Rate | 13 lbs/in |
| SKU | O-71CS |
| Solid Length | 0.16 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 2.7 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-71 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 9.65 mm |
| Inside Diameter | 3.35 mm |
| Material | Music Wire |
| Outside Diameter | 4.37 mm |
| Part Type | Standard |
| Rate | 2.28 N/mm |
| SKU | O-71CS |
| Solid Length | 4.06 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 12.01 N |
| Total Coils | 7 |
| Wire Diameter | 0.51 mm |
The O-71 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The O-71CS compression spring is designed with a free length of 0.41" total of 3 coils, and a rate of 110 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The O-71 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The O-71CS compression spring is designed with a free length of 0.41" total of 3 coils, and a rate of 110 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The O-71 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
