O-64CS - 0.81" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

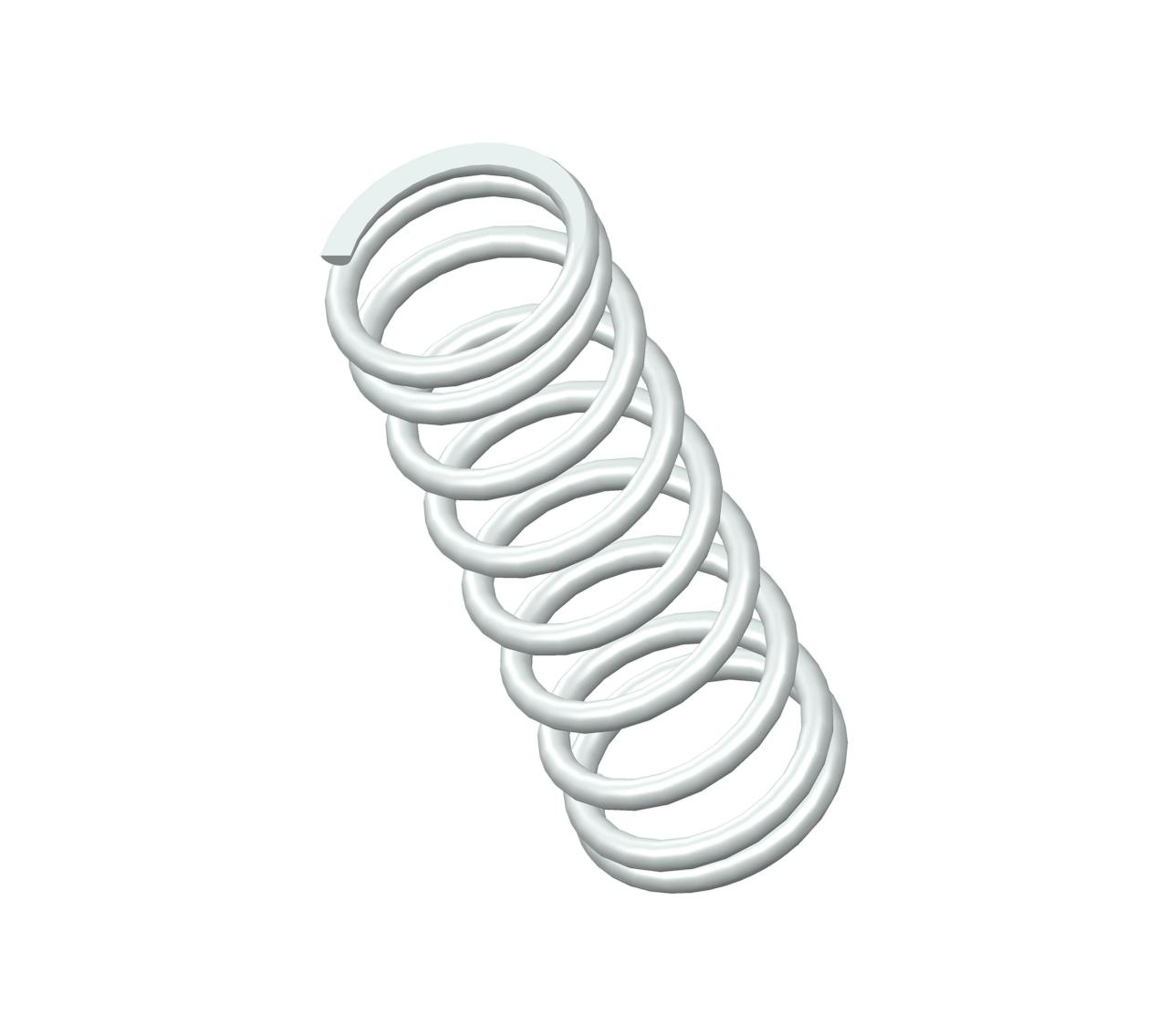

Compression spring manufactured from 302/304 stainless steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.281", and an I.D. of 0.219".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-64 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.81 in |
| Inside Diameter | 0.219 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 10.6 lbs/in |
| SKU | O-64CS |
| Solid Length | 0.28 in |
| Suggested Max Deflection | 0.375 in |
| Suggested Max Load | 4 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.031 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-64 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 20.57 mm |
| Inside Diameter | 5.56 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 1.86 N/mm |
| SKU | O-64CS |
| Solid Length | 7.11 mm |
| Suggested Max Deflection | 9.53 mm |
| Suggested Max Load | 17.79 N |
| Total Coils | 9 |
| Wire Diameter | 0.79 mm |
The compression spring O-64CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the O-64 compression spring design exhibits exceptional tensile strength and resilience.
The O-64 design is manufactured with a free length of 0.81", with an outer diameter of 0.281", an inner diameter of 0.219", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 10.6 lbs/in.
The O-64CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring O-64 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The O-64 design is manufactured with a free length of 0.81", with an outer diameter of 0.281", an inner diameter of 0.219", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 10.6 lbs/in.
The O-64CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring O-64 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
