Century Spring

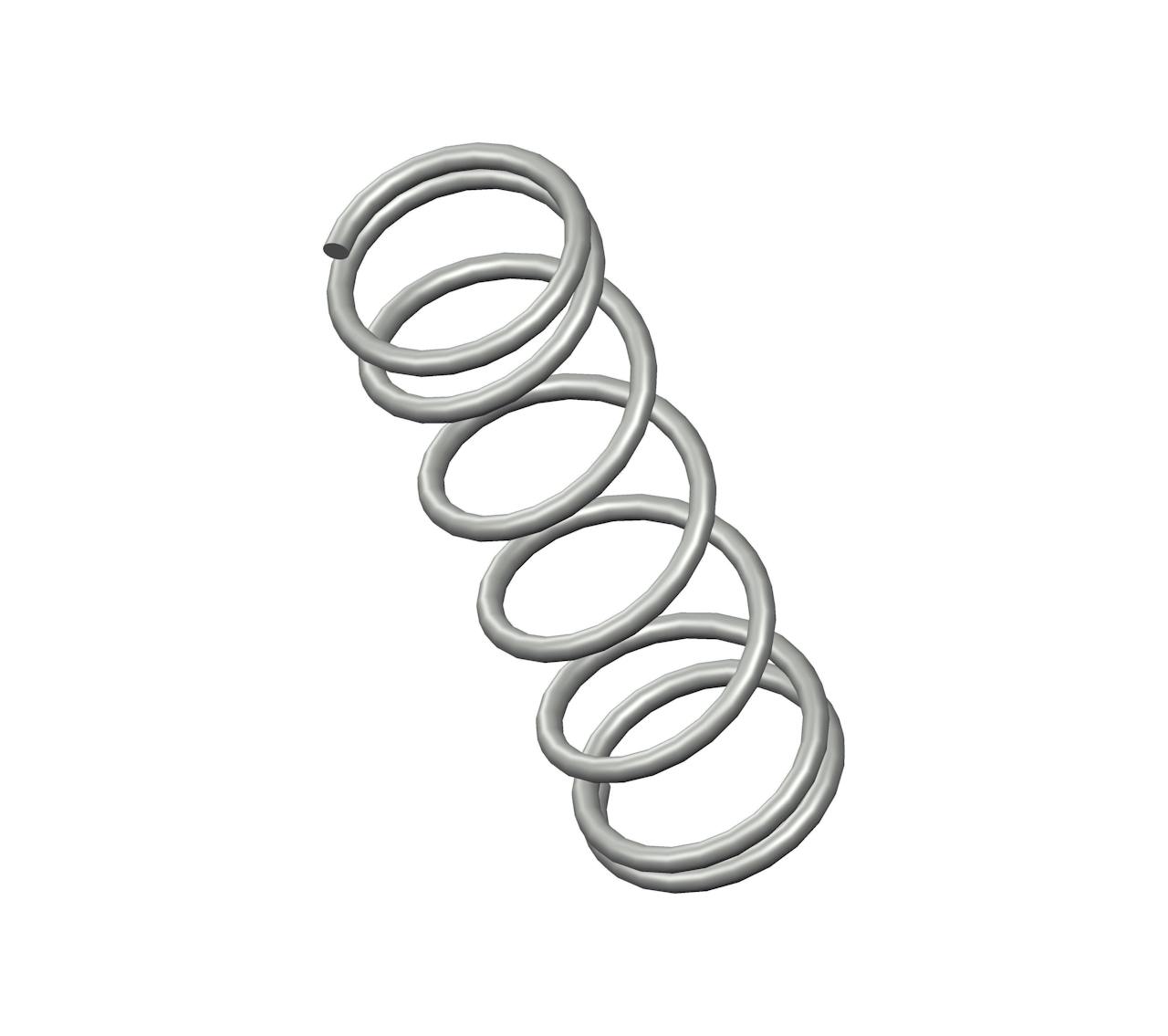

O-36CS - 0.59" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 7 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.152".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name O-36
Ends Closed
Finish None
Free Length 0.59 in
Inside Diameter 0.152 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 6.1 lbs/in
SKU O-36CS
Solid Length 0.14 in
Suggested Max Deflection 0.3 in
Suggested Max Load 1.8 lbf
Total Coils 7
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name O-36
Ends Closed
Finish None
Free Length 14.99 mm
Inside Diameter 3.86 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 1.07 N/mm
SKU O-36CS
Solid Length 3.56 mm
Suggested Max Deflection 7.62 mm
Suggested Max Load 8.01 N
Total Coils 7
Wire Diameter 0.46 mm
The O-36 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The O-36CS compression spring is designed with a free length of 0.88" total of 8 coils, and a rate of 149 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The O-36 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
