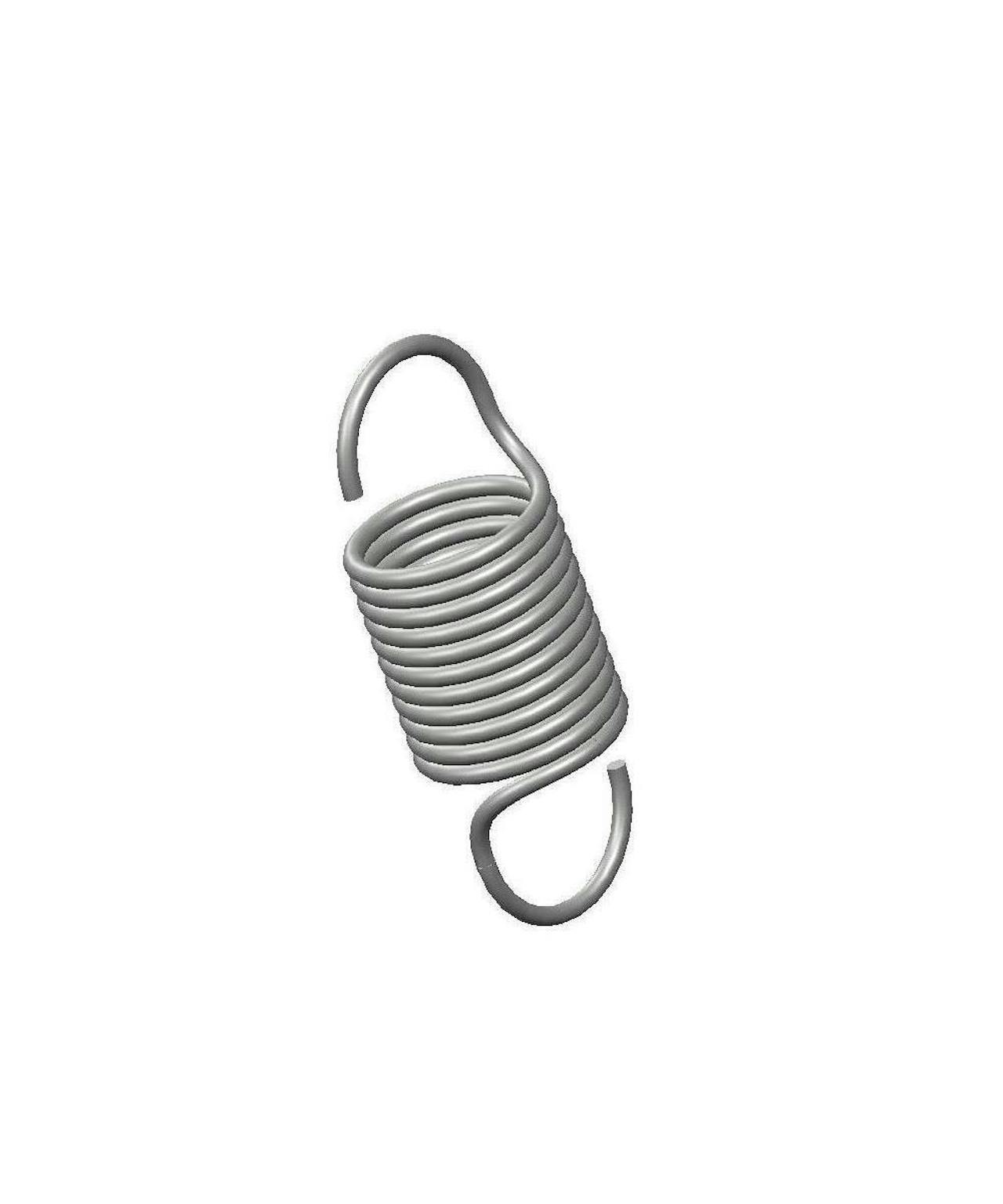

O-25CS - 0.38 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.125 Inch and an initial tension of 0.06 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name O-25
Ends Machine Hook
Finish Zinc
Initial Tension 0.06 lb
Length 0.38 in
Material Music Wire
Outside Diameter 0.125 in
Part Type Standard
Rate 1.5 lbs/in
SKU O-25CS
Sugg Max Deflection 0.5 in
Sugg Max Load 0.8 lbf
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name O-25
Ends Machine Hook
Finish Zinc
Initial Tension 0.03 kg
Length 9.65 mm
Material Music Wire
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.26 N/mm
SKU O-25CS
Sugg Max Deflection 12.7 mm
Sugg Max Load 3.56 N
Wire Diameter 0.3 mm
