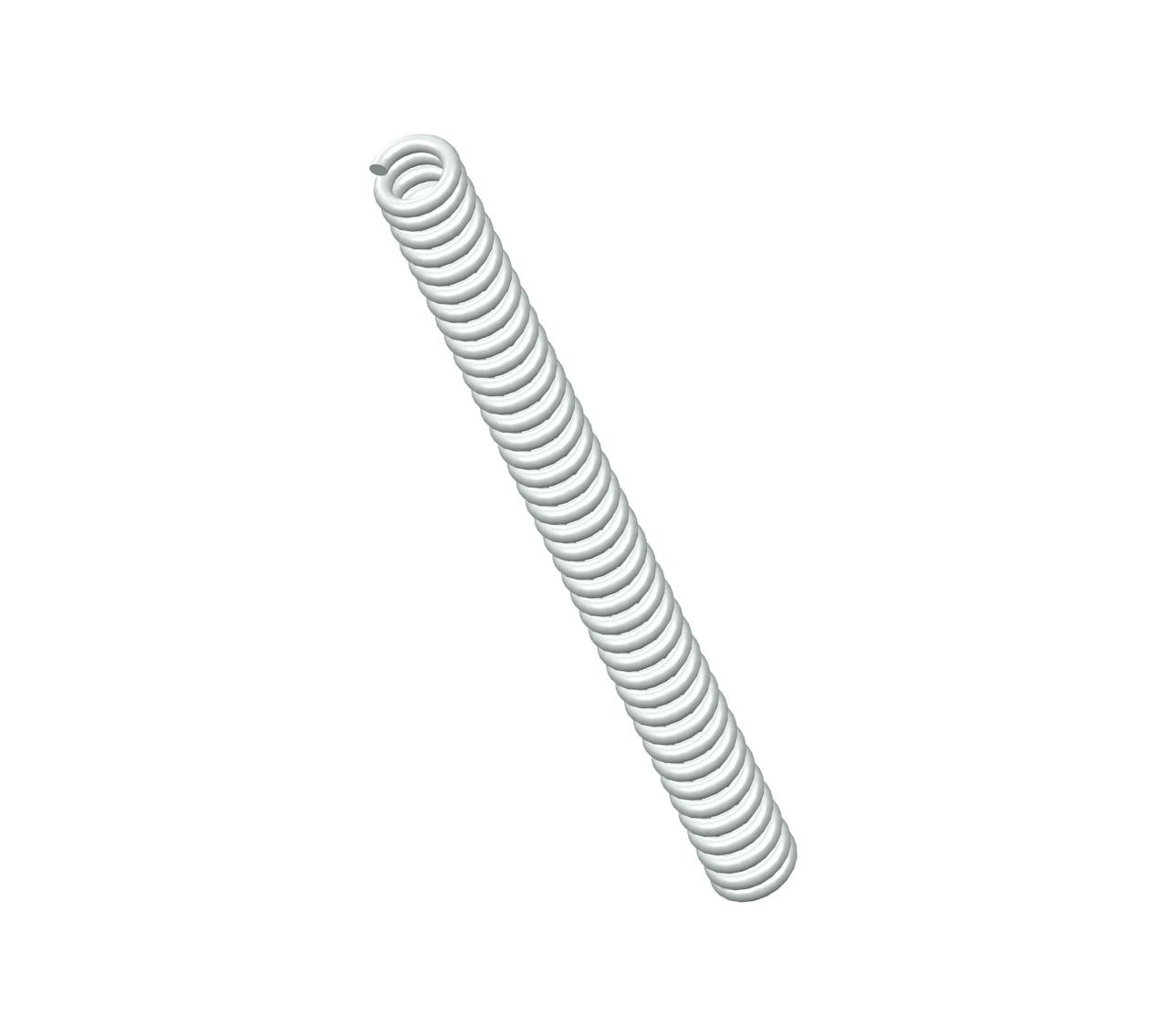

NN-94CS - 1.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 39 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.075".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | NN-94 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.5 in |
| Inside Diameter | 0.075 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 13 lbs/in |
| SKU | NN-94CS |
| Solid Length | 1 in |
| Suggested Max Deflection | 0.33 in |
| Suggested Max Load | 4.4 lbf |
| Total Coils | 39 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | NN-94 |
| Ends | Closed |
| Finish | None |
| Free Length | 38.1 mm |
| Inside Diameter | 1.91 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 2.28 N/mm |
| SKU | NN-94CS |
| Solid Length | 25.4 mm |
| Suggested Max Deflection | 8.38 mm |
| Suggested Max Load | 19.57 N |
| Total Coils | 39 |
| Wire Diameter | 0.64 mm |
The compression spring NN-94CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the NN-94 compression spring design exhibits exceptional tensile strength and resilience.
The NN-94 design is manufactured with a free length of 1.5", with an outer diameter of 0.125", an inner diameter of 0.075", and a total of 39 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The NN-94CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring NN-94 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The NN-94 design is manufactured with a free length of 1.5", with an outer diameter of 0.125", an inner diameter of 0.075", and a total of 39 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The NN-94CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring NN-94 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
