Century Spring

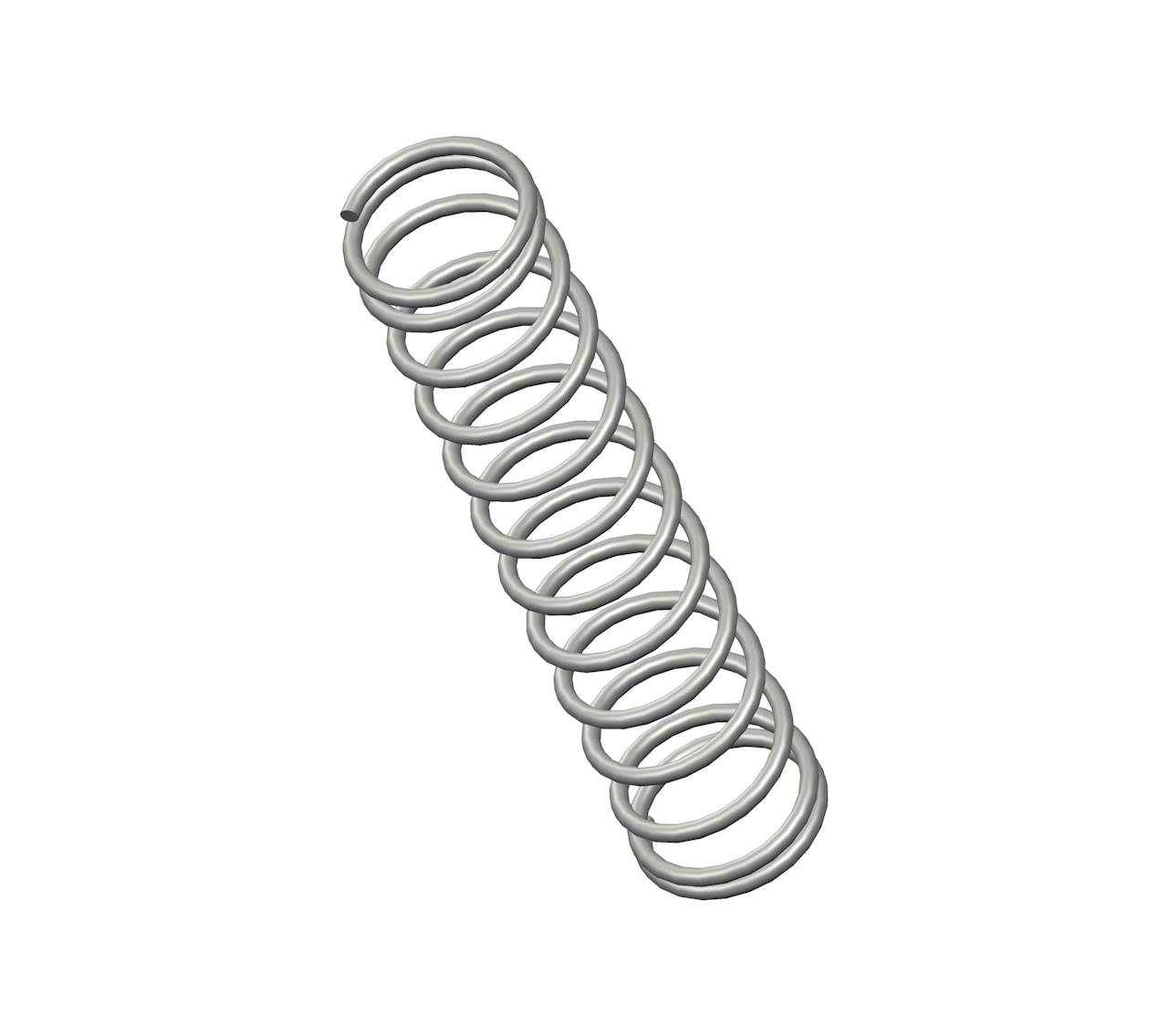

NN-65CS - 1.34" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 13 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.229".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name NN-65
Ends Closed
Finish None
Free Length 1.34 in
Inside Diameter 0.229 in
Material Music Wire
Outside Diameter 0.281 in
Part Type Standard
Rate 3.6 lbs/in
SKU NN-65CS
Solid Length 0.36 in
Suggested Max Deflection 0.98 in
Suggested Max Load 3.5 lbf
Total Coils 13
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name NN-65
Ends Closed
Finish None
Free Length 34.04 mm
Inside Diameter 5.82 mm
Material Music Wire
Outside Diameter 7.14 mm
Part Type Standard
Rate 0.63 N/mm
SKU NN-65CS
Solid Length 9.14 mm
Suggested Max Deflection 24.89 mm
Suggested Max Load 15.57 N
Total Coils 13
Wire Diameter 0.66 mm
The compression spring NN-65CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the NN-65 compression spring design exhibits exceptional tensile strength and resilience.

The NN-65 design is manufactured with a free length of 1.34", with an outer diameter of 0.281", an inner diameter of 0.229", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.6 lbs/in.

The NN-65CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring NN-65 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
