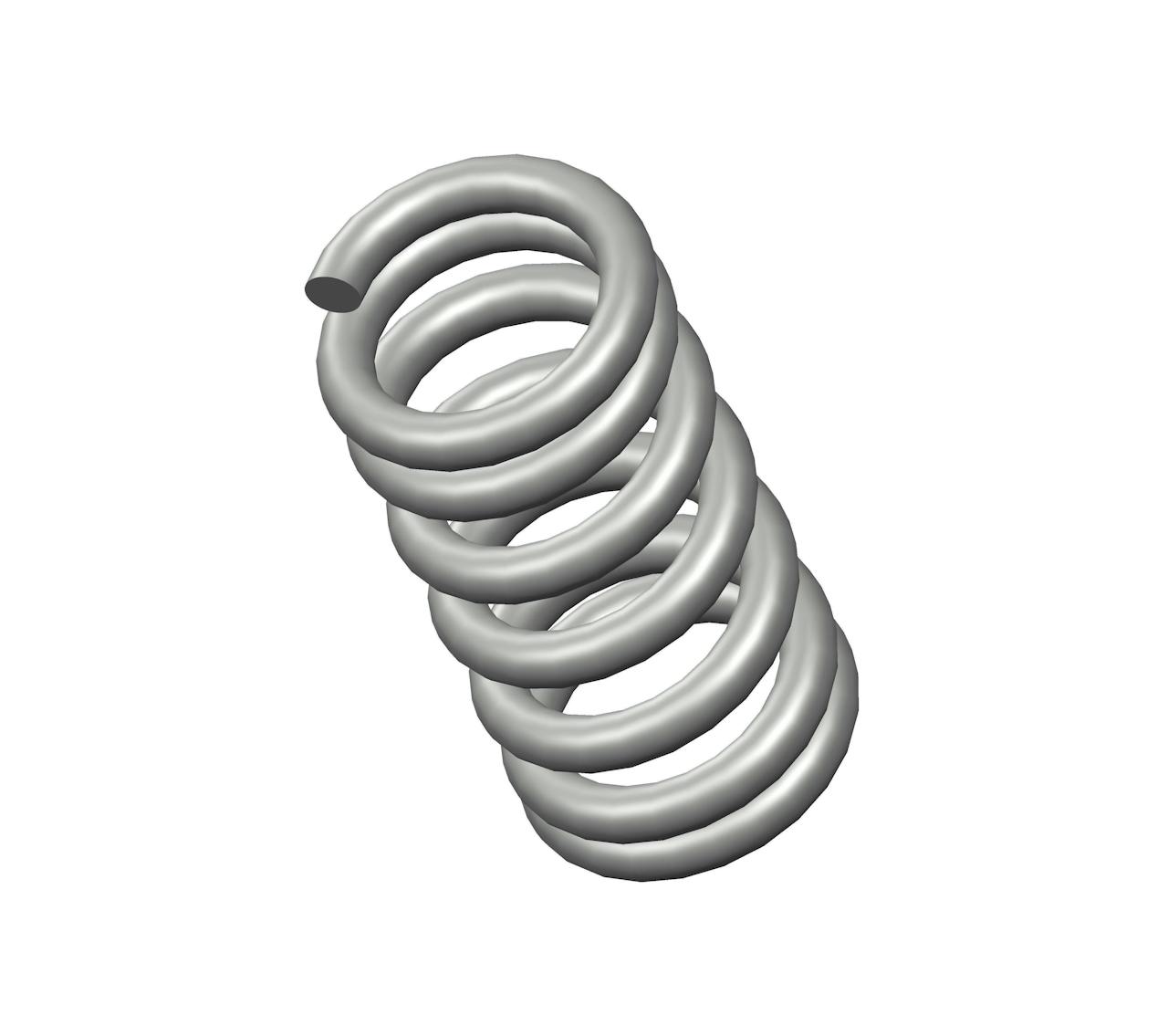

NN-39CS - 0.53" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 7 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.17".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name NN-39
Ends Closed
Finish None
Free Length 0.53 in
Inside Diameter 0.17 in
Material Spring Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 79 lbs/in
SKU NN-39CS
Solid Length 0.32 in
Suggested Max Deflection 0.12 in
Suggested Max Load 9.5 lbf
Total Coils 7
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name NN-39
Ends Closed
Finish None
Free Length 13.46 mm
Inside Diameter 4.32 mm
Material Spring Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 13.83 N/mm
SKU NN-39CS
Solid Length 8.13 mm
Suggested Max Deflection 3.05 mm
Suggested Max Load 42.26 N
Total Coils 7
Wire Diameter 1.02 mm
The compression spring NN-39CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the NN-39 compression spring design exhibits exceptional tensile strength and resilience.

The NN-39 design is manufactured with a free length of 0.53", with an outer diameter of 0.25", an inner diameter of 0.17", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 79 lbs/in.

The NN-39CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring NN-39 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
