N-67CS - 0.94" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

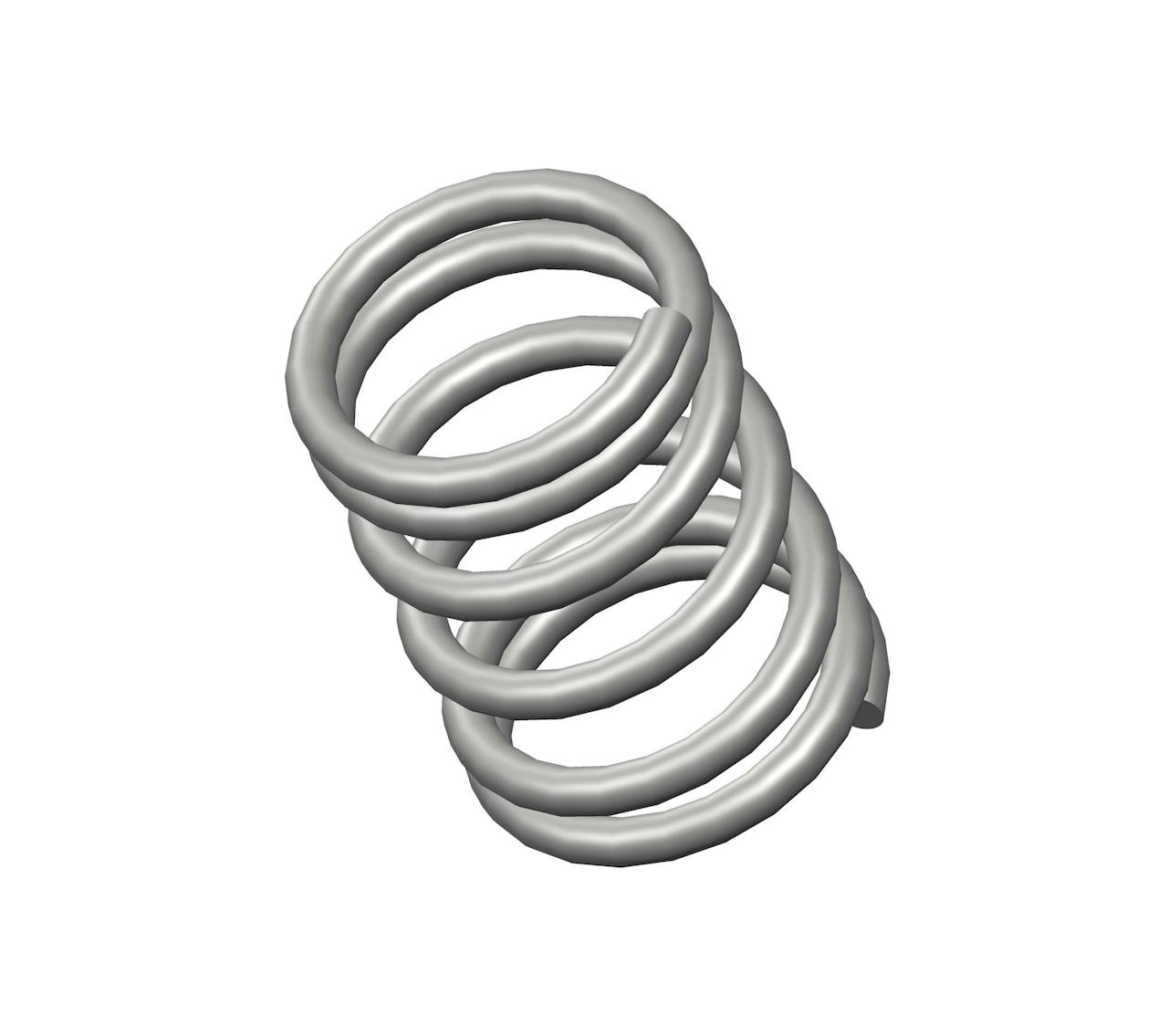

Compression spring manufactured from spring steel with 6 coils and closed ends. This spring features an O.D. of 0.609", and an I.D. of 0.469".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | N-67 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.94 in |
| Inside Diameter | 0.469 in |
| Material | Spring Steel |
| Outside Diameter | 0.609 in |
| Part Type | Standard |
| Rate | 55 lbs/in |
| SKU | N-67CS |
| Solid Length | 0.49 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 19 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.07 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | N-67 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 23.88 mm |
| Inside Diameter | 11.91 mm |
| Material | Spring Steel |
| Outside Diameter | 15.47 mm |
| Part Type | Standard |
| Rate | 9.63 N/mm |
| SKU | N-67CS |
| Solid Length | 12.45 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 84.51 N |
| Total Coils | 6 |
| Wire Diameter | 1.78 mm |
The N-67 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The N-67CS compression spring is designed with a free length of 0.5" total of 5 coils, and a rate of 16 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The N-67 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The N-67CS compression spring is designed with a free length of 0.5" total of 5 coils, and a rate of 16 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The N-67 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
