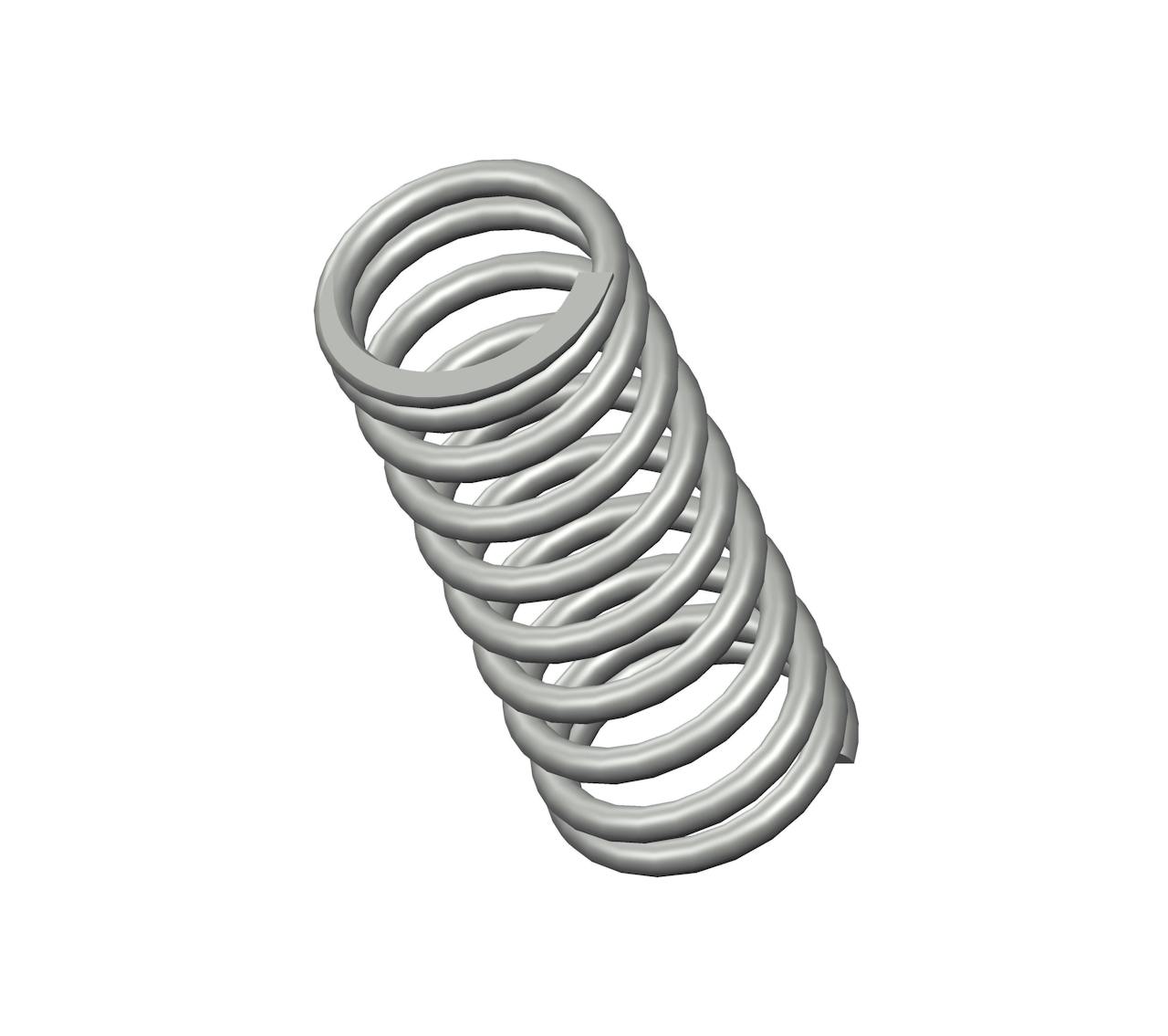

N-28CS - 0.38" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 10 coils and closed & ground ends. This spring features an O.D. of 0.156", and an I.D. of 0.12".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | N-28 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.38 in |
| Inside Diameter | 0.12 in |
| Material | Music Wire |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 7.2 lbs/in |
| SKU | N-28CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.2 in |
| Suggested Max Load | 1.4 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | N-28 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 9.65 mm |
| Inside Diameter | 3.05 mm |
| Material | Music Wire |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 1.26 N/mm |
| SKU | N-28CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 5.08 mm |
| Suggested Max Load | 6.23 N |
| Total Coils | 10 |
| Wire Diameter | 0.46 mm |
The compression spring N-28CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the N-28 compression spring design exhibits exceptional tensile strength and resilience.
The N-28 design is manufactured with a free length of 0.38", with an outer diameter of 0.156", an inner diameter of 0.12", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.2 lbs/in.
The N-28CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring N-28 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The N-28 design is manufactured with a free length of 0.38", with an outer diameter of 0.156", an inner diameter of 0.12", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.2 lbs/in.
The N-28CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring N-28 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
