Century Spring

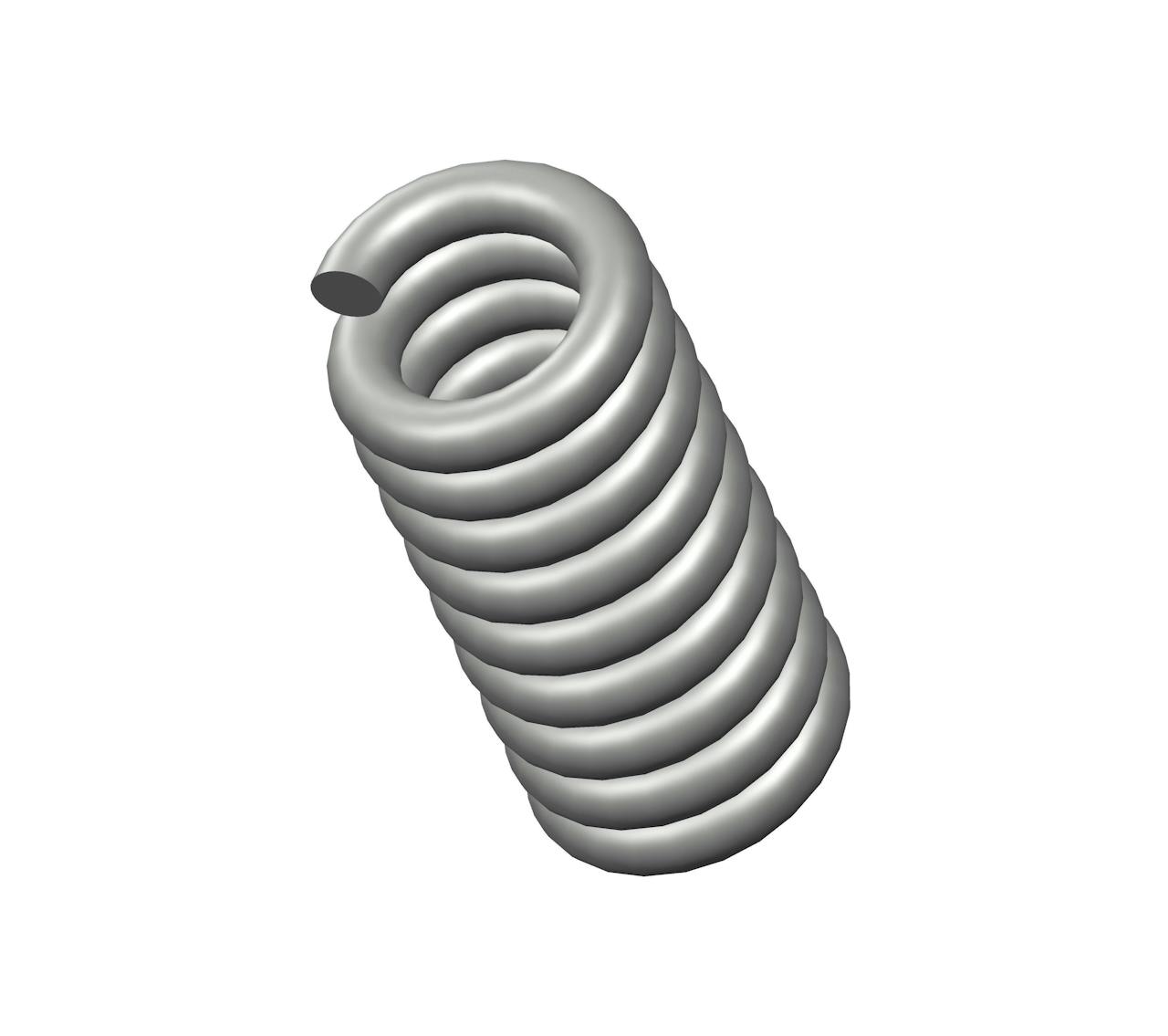

N-157CS - 0.14" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 9 coils and closed ends. This spring features an O.D. of 0.062", and an I.D. of 0.036".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name N-157
Ends Closed
Finish None
Free Length 0.14 in
Inside Diameter 0.036 in
Material Music Wire
Outside Diameter 0.062 in
Part Type Standard
Rate 50 lbs/in
SKU N-157CS
Solid Length 0.13 in
Suggested Max Deflection 0.01 in
Suggested Max Load 0.5 lbf
Total Coils 9
Wire Diameter 0.013 in
The N-157 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The N-157CS compression spring is designed with a free length of 0.41" total of 9 coils, and a rate of 7.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The N-157 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
