N-13CS - 0.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

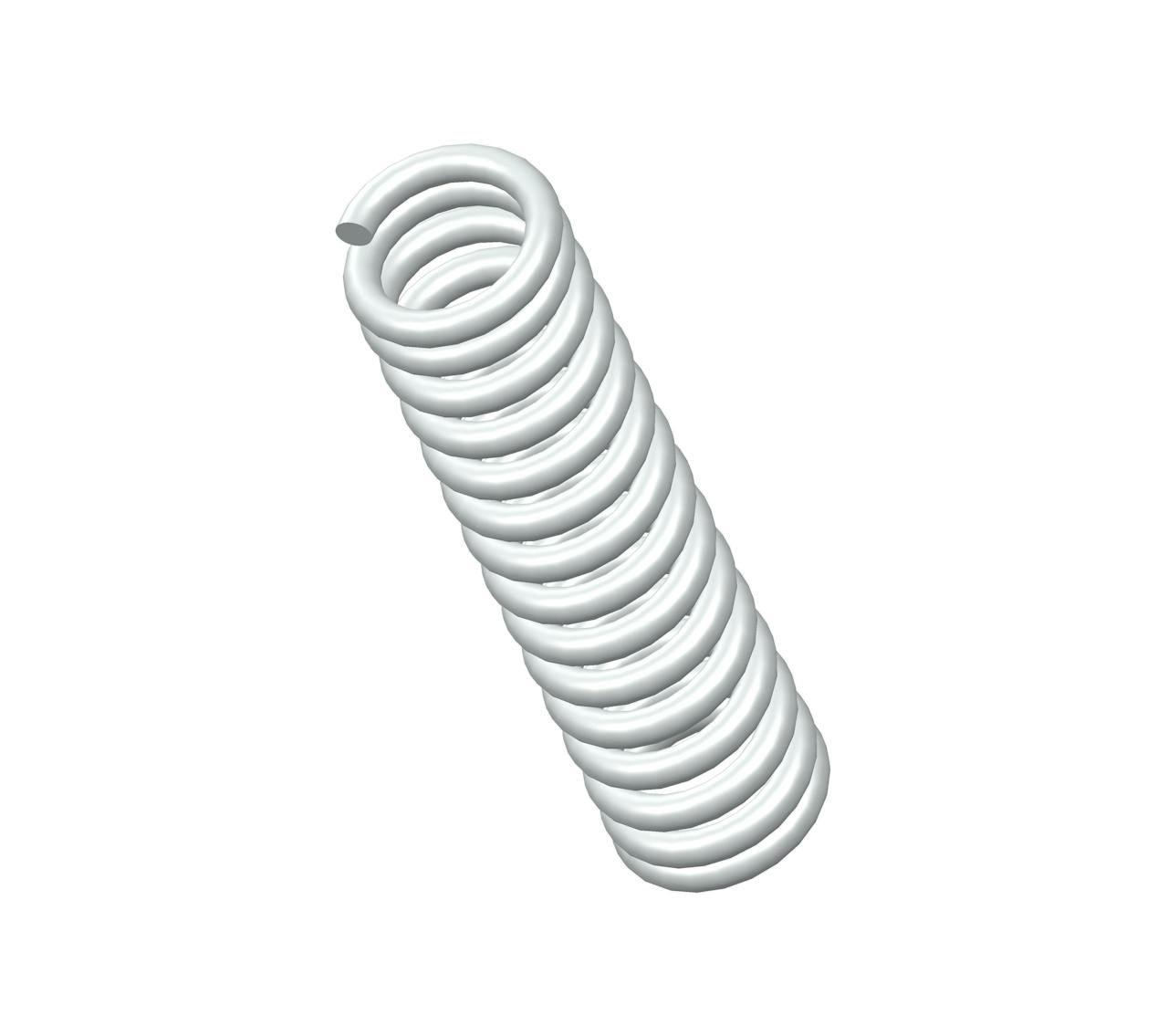

Compression spring manufactured from 302/304 stainless steel with 15 coils and closed ends. This spring features an O.D. of 0.062", and an I.D. of 0.042".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | N-13 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.25 in |
| Inside Diameter | 0.042 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.062 in |
| Part Type | Standard |
| Rate | 7 lbs/in |
| SKU | N-13CS |
| Solid Length | 0.16 in |
| Suggested Max Deflection | 0.09 in |
| Suggested Max Load | 0.63 lbf |
| Total Coils | 15 |
| Wire Diameter | 0.01 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | N-13 |
| Ends | Closed |
| Finish | None |
| Free Length | 6.35 mm |
| Inside Diameter | 1.07 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.57 mm |
| Part Type | Standard |
| Rate | 1.23 N/mm |
| SKU | N-13CS |
| Solid Length | 4.06 mm |
| Suggested Max Deflection | 2.29 mm |
| Suggested Max Load | 2.8 N |
| Total Coils | 15 |
| Wire Diameter | 0.25 mm |
The compression spring N-13CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the N-13 compression spring design exhibits exceptional tensile strength and resilience.
The N-13 design is manufactured with a free length of 0.25", with an outer diameter of 0.062", an inner diameter of 0.042", and a total of 15 coils, expertly designed to deliver consistent compression characteristics including a rate of 7 lbs/in.
The N-13CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring N-13 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
