N-137CS - 0.94" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

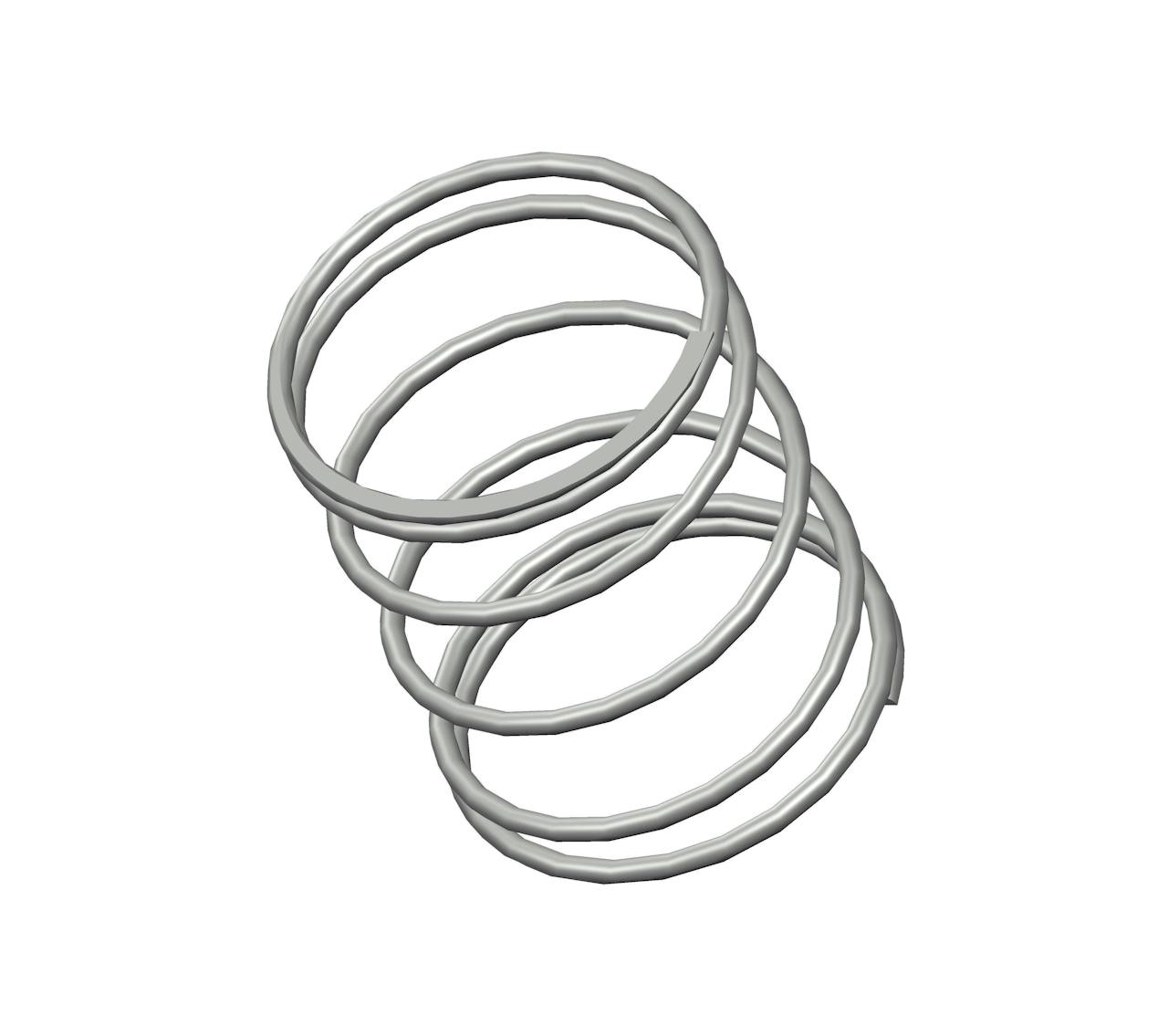

Compression spring manufactured from spring steel with 6 coils and closed ends. This spring features an O.D. of 0.75", and an I.D. of 0.672".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name N-137
Ends Closed
Finish None
Free Length 0.94 in
Inside Diameter 0.672 in
Material Spring Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 2.3 lbs/in
SKU N-137CS
Solid Length 0.23 in
Suggested Max Deflection 0.7 in
Suggested Max Load 1.6 lbf
Total Coils 6
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name N-137
Ends Closed
Finish None
Free Length 23.88 mm
Inside Diameter 17.07 mm
Material Spring Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 0.4 N/mm
SKU N-137CS
Solid Length 5.84 mm
Suggested Max Deflection 17.78 mm
Suggested Max Load 7.12 N
Total Coils 6
Wire Diameter 0.99 mm
The N-137 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The N-137CS compression spring is designed with a free length of 0.91" total of 10.5 coils, and a rate of 0.79 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The N-137 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
