Accurate Screw Machine

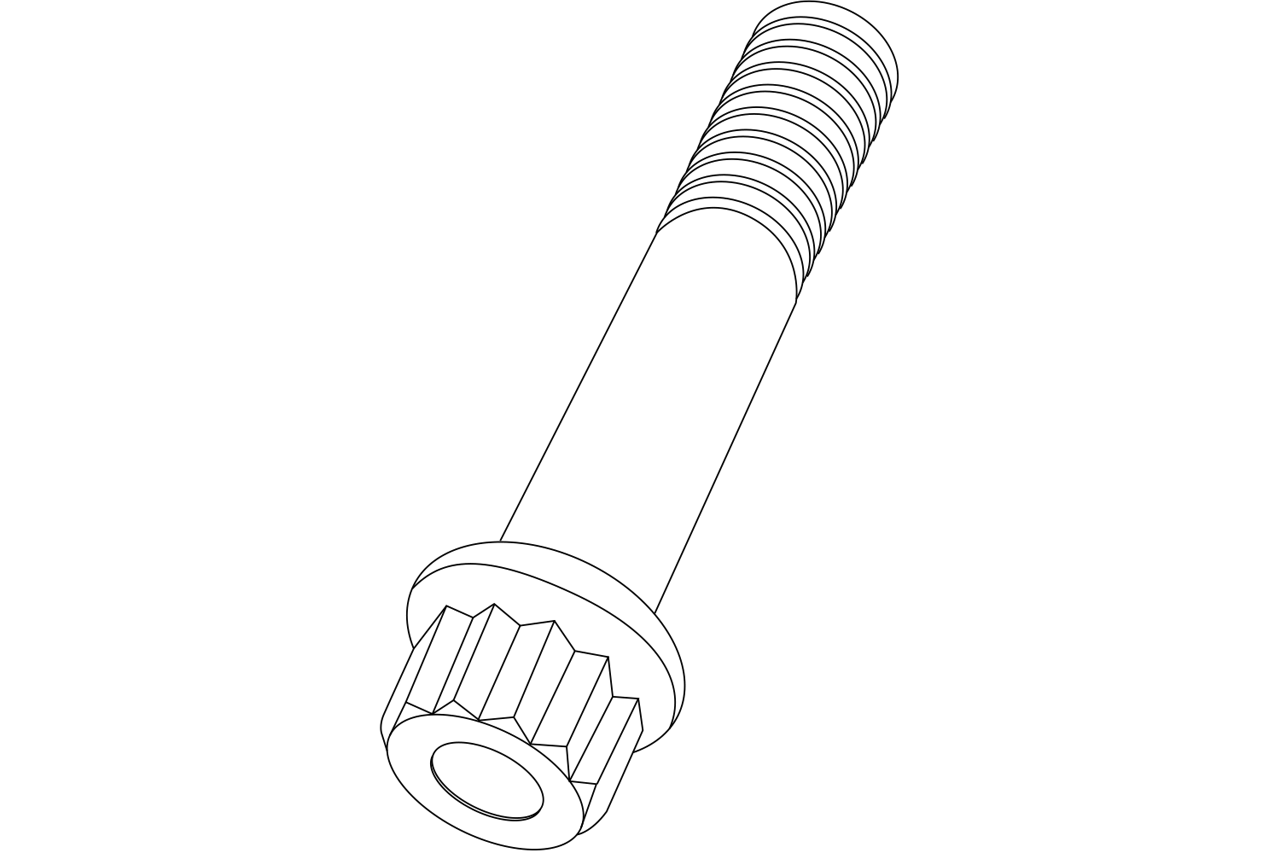

MS21250-08018 Bolts

1.9063 Inch Steel External Wrenching bolts manufactured with 1/2-20 UNF 3A threads.

Unit System
Specs (in standard)
Label Value
Brand Accurate Screw
Display Name MS21250-08018
Drive Type Hex Socket
Finish Cadmium + Chromate
Head Diameter 0.818 in
Head Height 0.504 in
Head Type External Wrenching
Length
(Overall) 		1 29/32 in
Length
(Shank/Grip) 		1 1/8 in
Length
(Thread) 		0.768 in
Material Steel
Max Head Diameter 0.828 in
SKU MS21250-08018
Tensile Strength 180000 psi
Thread Size 1/2-20 UNF 3A
Specs (in metric)
Label Value
Brand Accurate Screw
Display Name MS21250-08018
Drive Type Hex Socket
Finish Cadmium + Chromate
Head Diameter 20.78 mm
Head Height 12.8 mm
Head Type External Wrenching
Length
(Overall) 		48.42 mm
Length
(Shank/Grip) 		28.58 mm
Length
(Thread) 		19.51 mm
Material Steel
Max Head Diameter 21.03 mm
SKU MS21250-08018
Tensile Strength 1241100 kPa
Thread Size 1/2-20 UNF 3A
