MM-98CS - 0.69" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

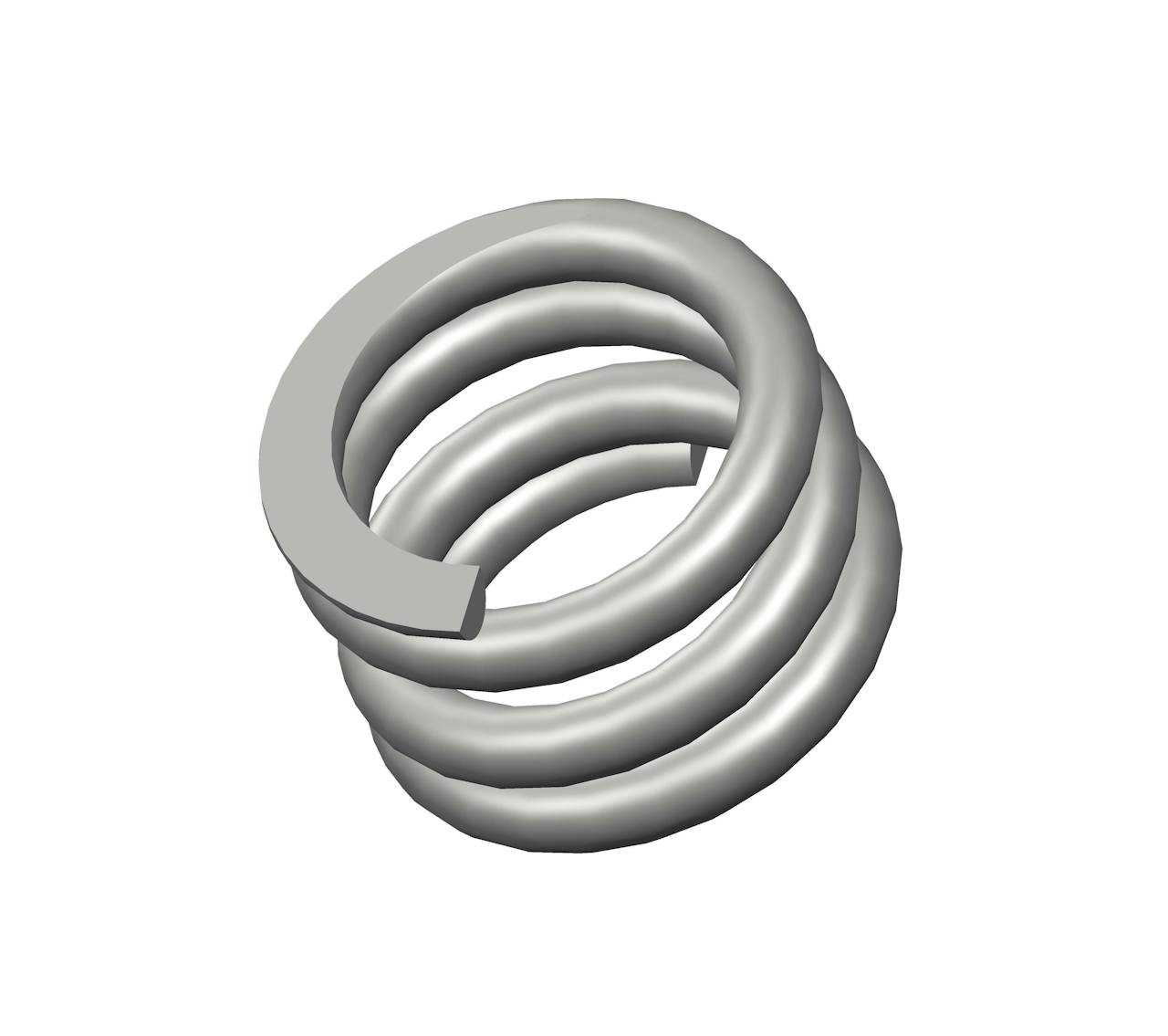

Compression spring manufactured from spring steel with 3.5 coils and closed & ground ends. This spring features an O.D. of 1.031", and an I.D. of 0.731".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-98 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.69 in |
| Inside Diameter | 0.731 in |
| Material | Spring Steel |
| Outside Diameter | 1.031 in |
| Part Type | Standard |
| Rate | 710 lbs/in |
| SKU | MM-98CS |
| Solid Length | 0.53 in |
| Suggested Max Deflection | 0.13 in |
| Suggested Max Load | 96 lbf |
| Total Coils | 3.5 |
| Wire Diameter | 0.15 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-98 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 17.53 mm |
| Inside Diameter | 18.57 mm |
| Material | Spring Steel |
| Outside Diameter | 26.19 mm |
| Part Type | Standard |
| Rate | 124.32 N/mm |
| SKU | MM-98CS |
| Solid Length | 13.46 mm |
| Suggested Max Deflection | 3.3 mm |
| Suggested Max Load | 427.01 N |
| Total Coils | 3.5 |
| Wire Diameter | 3.81 mm |
The compression spring MM-98CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the MM-98 compression spring design exhibits exceptional tensile strength and resilience.
The MM-98 design is manufactured with a free length of 0.69", with an outer diameter of 1.031", an inner diameter of 0.731", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 710 lbs/in.
The MM-98CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring MM-98 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The MM-98 design is manufactured with a free length of 0.69", with an outer diameter of 1.031", an inner diameter of 0.731", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 710 lbs/in.
The MM-98CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring MM-98 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
