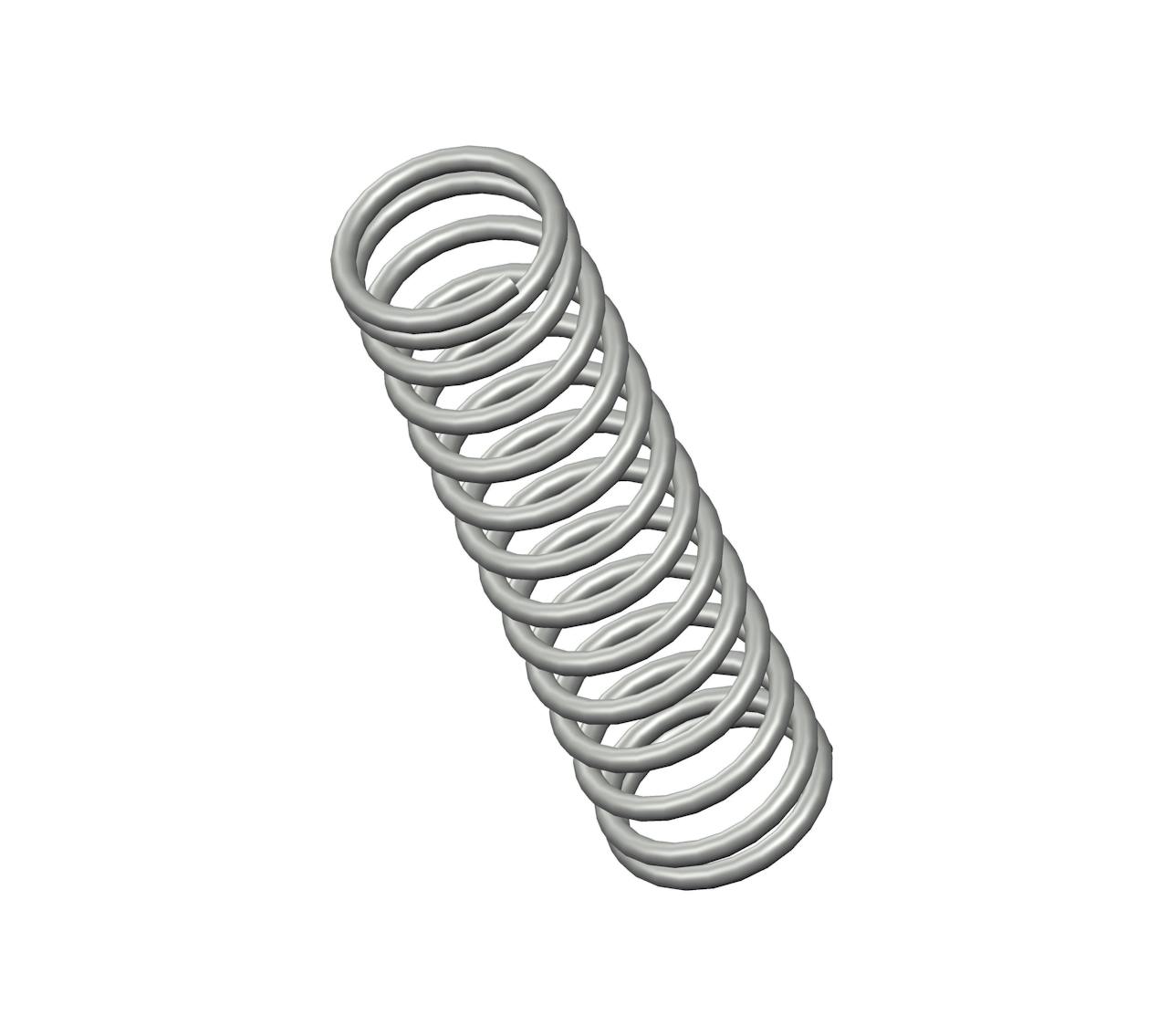

MM-84CS - 1.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 13.8 coils and closed ends. This spring features an O.D. of 0.39", and an I.D. of 0.308".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-84 |
| Ends | Closed |
| Finish | Black Oxide |
| Free Length | 1.5 in |
| Inside Diameter | 0.308 in |
| Material | Spring Steel |
| Outside Diameter | 0.39 in |
| Part Type | Standard |
| Rate | 8.1 lbs/in |
| SKU | MM-84CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 0.83 in |
| Suggested Max Load | 6.8 lbf |
| Total Coils | 13.8 |
| Wire Diameter | 0.041 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-84 |
| Ends | Closed |
| Finish | Black Oxide |
| Free Length | 38.1 mm |
| Inside Diameter | 7.82 mm |
| Material | Spring Steel |
| Outside Diameter | 9.91 mm |
| Part Type | Standard |
| Rate | 1.42 N/mm |
| SKU | MM-84CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 21.08 mm |
| Suggested Max Load | 30.25 N |
| Total Coils | 13.8 |
| Wire Diameter | 1.04 mm |
The compression spring MM-84CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the MM-84 compression spring design exhibits exceptional tensile strength and resilience.
The MM-84 design is manufactured with a free length of 1.5", with an outer diameter of 0.39", an inner diameter of 0.308", and a total of 13.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.1 lbs/in.
The MM-84CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring MM-84 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
