MM-64CS - 0.5" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

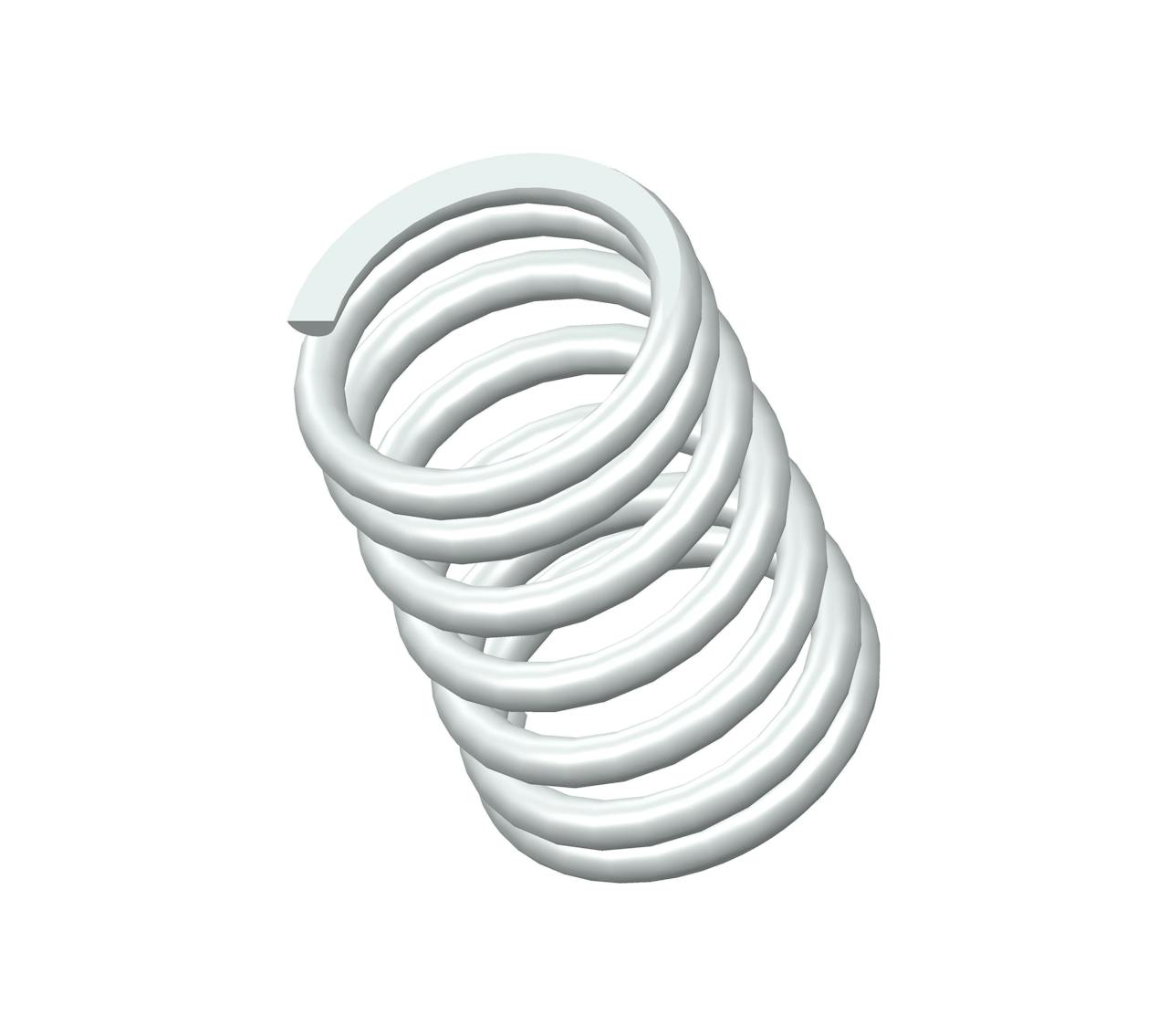

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.263".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-64 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.263 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.343 in |
| Part Type | Standard |
| Rate | 23 lbs/in |
| SKU | MM-64CS |
| Solid Length | 0.28 in |
| Suggested Max Deflection | 0.22 in |
| Suggested Max Load | 5.1 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-64 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 6.68 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 8.71 mm |
| Part Type | Standard |
| Rate | 4.03 N/mm |
| SKU | MM-64CS |
| Solid Length | 7.11 mm |
| Suggested Max Deflection | 5.59 mm |
| Suggested Max Load | 22.68 N |
| Total Coils | 7 |
| Wire Diameter | 1.02 mm |
The compression spring MM-64CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the MM-64 compression spring design exhibits exceptional tensile strength and resilience.
The MM-64 design is manufactured with a free length of 0.5", with an outer diameter of 0.343", an inner diameter of 0.263", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 23 lbs/in.
The MM-64CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring MM-64 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The MM-64 design is manufactured with a free length of 0.5", with an outer diameter of 0.343", an inner diameter of 0.263", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 23 lbs/in.
The MM-64CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring MM-64 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
