MM-61CS - 0.44" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

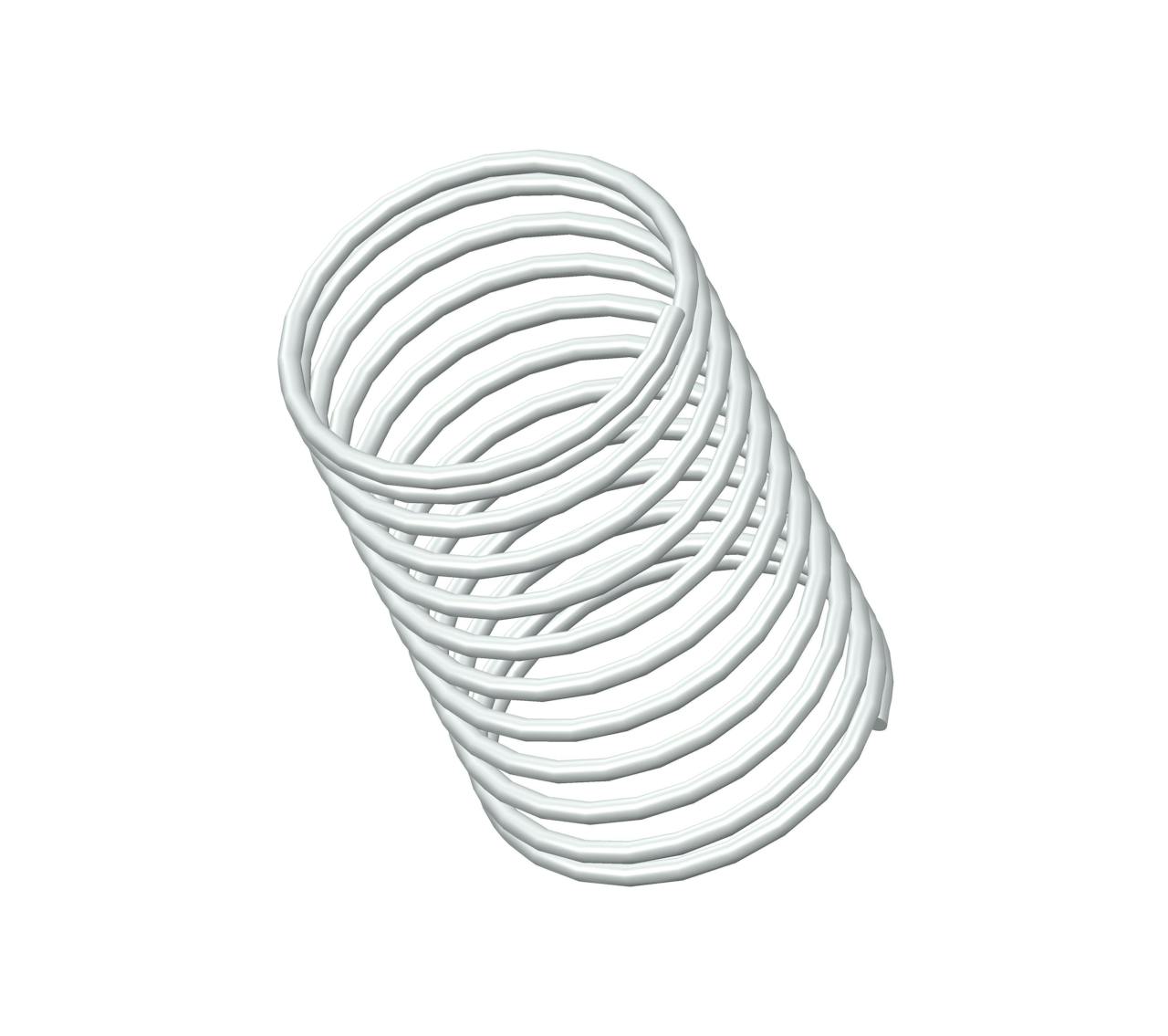

Compression spring manufactured from 302/304 stainless steel with 12 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.251".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name MM-61
Ends Closed
Finish None
Free Length 0.44 in
Inside Diameter 0.251 in
Material 302/304 Stainless Steel
Outside Diameter 0.281 in
Part Type Standard
Rate 0.34 lbs/in
SKU MM-61CS
Solid Length 0.2 in
Suggested Max Deflection 0.24 in
Suggested Max Load 0.08 lbf
Total Coils 12
Wire Diameter 0.015 in
The MM-61 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The MM-61CS compression spring is designed with a free length of 0.41" total of 3.5 coils, and a rate of 44 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The MM-61 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
