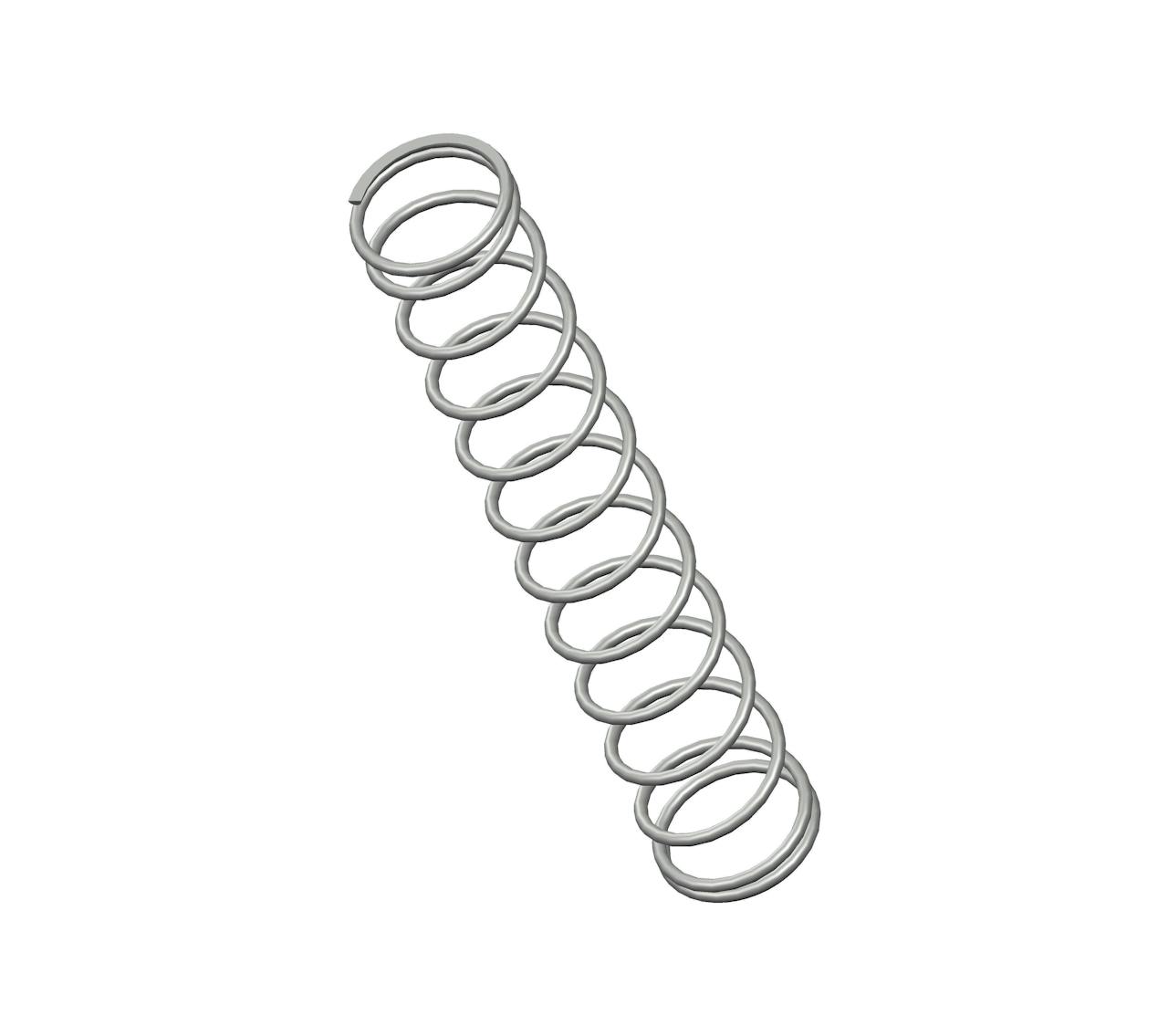

MM-57CS - 2.19" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 13 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.315".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-57 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 2.19 in |
| Inside Diameter | 0.315 in |
| Material | Music Wire |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 2.6 lbs/in |
| SKU | MM-57CS |
| Solid Length | 0.39 in |
| Suggested Max Deflection | 1.6 in |
| Suggested Max Load | 4.1 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-57 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 55.63 mm |
| Inside Diameter | 8 mm |
| Material | Music Wire |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 0.46 N/mm |
| SKU | MM-57CS |
| Solid Length | 9.91 mm |
| Suggested Max Deflection | 40.64 mm |
| Suggested Max Load | 18.24 N |
| Total Coils | 13 |
| Wire Diameter | 0.76 mm |
The compression spring MM-57CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the MM-57 compression spring design exhibits exceptional tensile strength and resilience.
The MM-57 design is manufactured with a free length of 2.19", with an outer diameter of 0.375", an inner diameter of 0.315", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.6 lbs/in.
The MM-57CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring MM-57 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The MM-57 design is manufactured with a free length of 2.19", with an outer diameter of 0.375", an inner diameter of 0.315", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.6 lbs/in.
The MM-57CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring MM-57 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
