Maryland Precision Spring

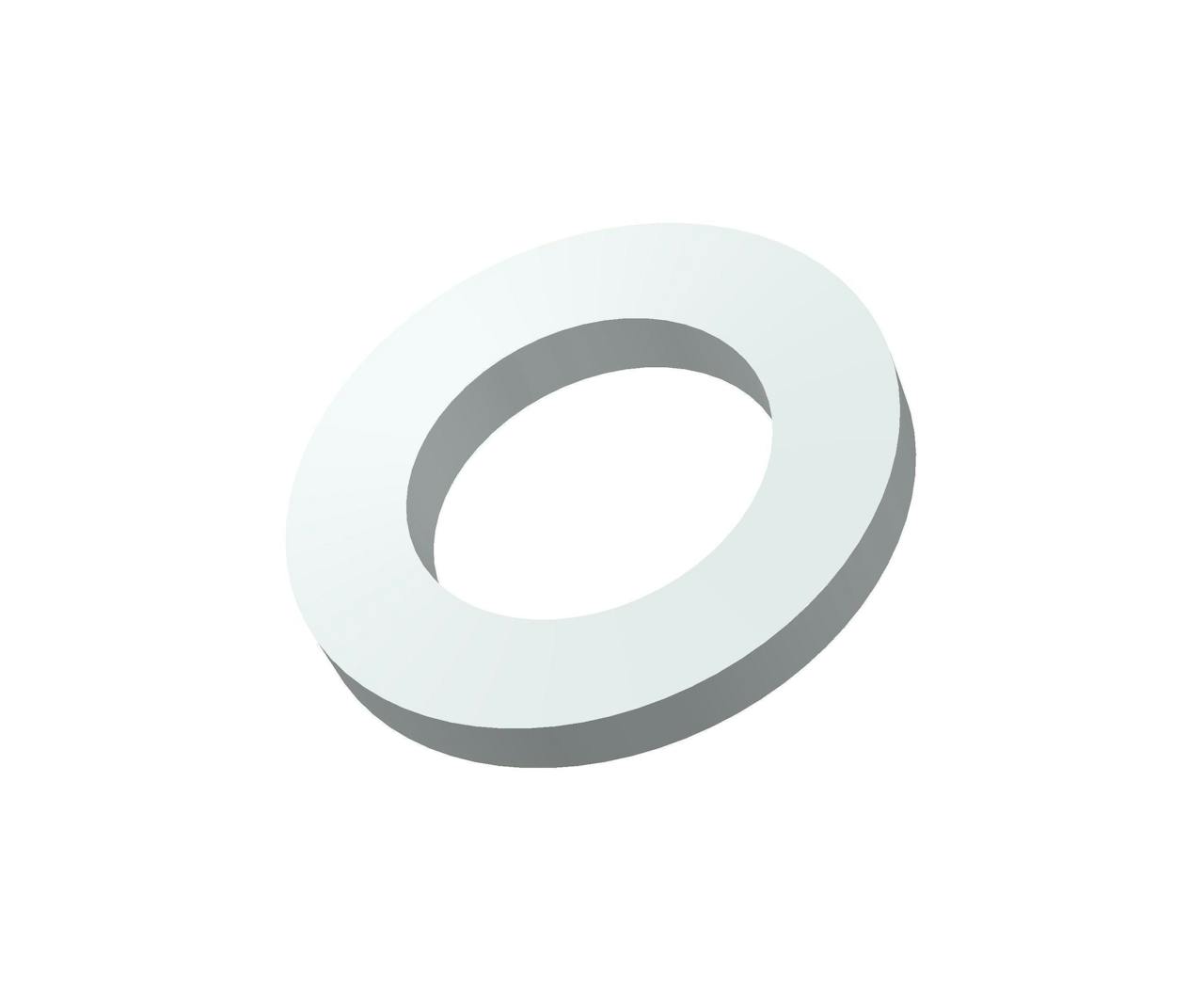

MFL-10078 - 10.4 Millimeter ID 18 Millimeter OD Stainless Steel Disc Spring Washer

Disc spring manufactured from Stainless Steel with an inside diameter of 10.4 Millimeter and an outside diameter of 18 Millimeter.

Unit System
Specs (in standard)
Label Value
Bolt Size 10
Brand Maryland Precision Spring
Display Name MFL-10078
Finish Plain
Inside Diameter 0.4094 in
Load at Flat 2471.3333 lb
Material Stainless Steel
Measurement Units Standard
Outside Diameter 0.7087 in
Outside Height 0.0906 in
SKU MFL-10078
Screw Size M10
T 0.0787 in
Torque to Flat 137.0645 lbs/in
Specs (in metric)
Label Value
Bolt Size 10
Brand Maryland Precision Spring
Display Name MFL-10078
Finish Plain
Inside Diameter 10.4 mm
Load at Flat 1120.79 kg
Material Stainless Steel
Measurement Units Standard
Outside Diameter 18 mm
Outside Height 2.3 mm
SKU MFL-10078
Screw Size M10
T 2 mm
Torque to Flat 24 ft-lb
