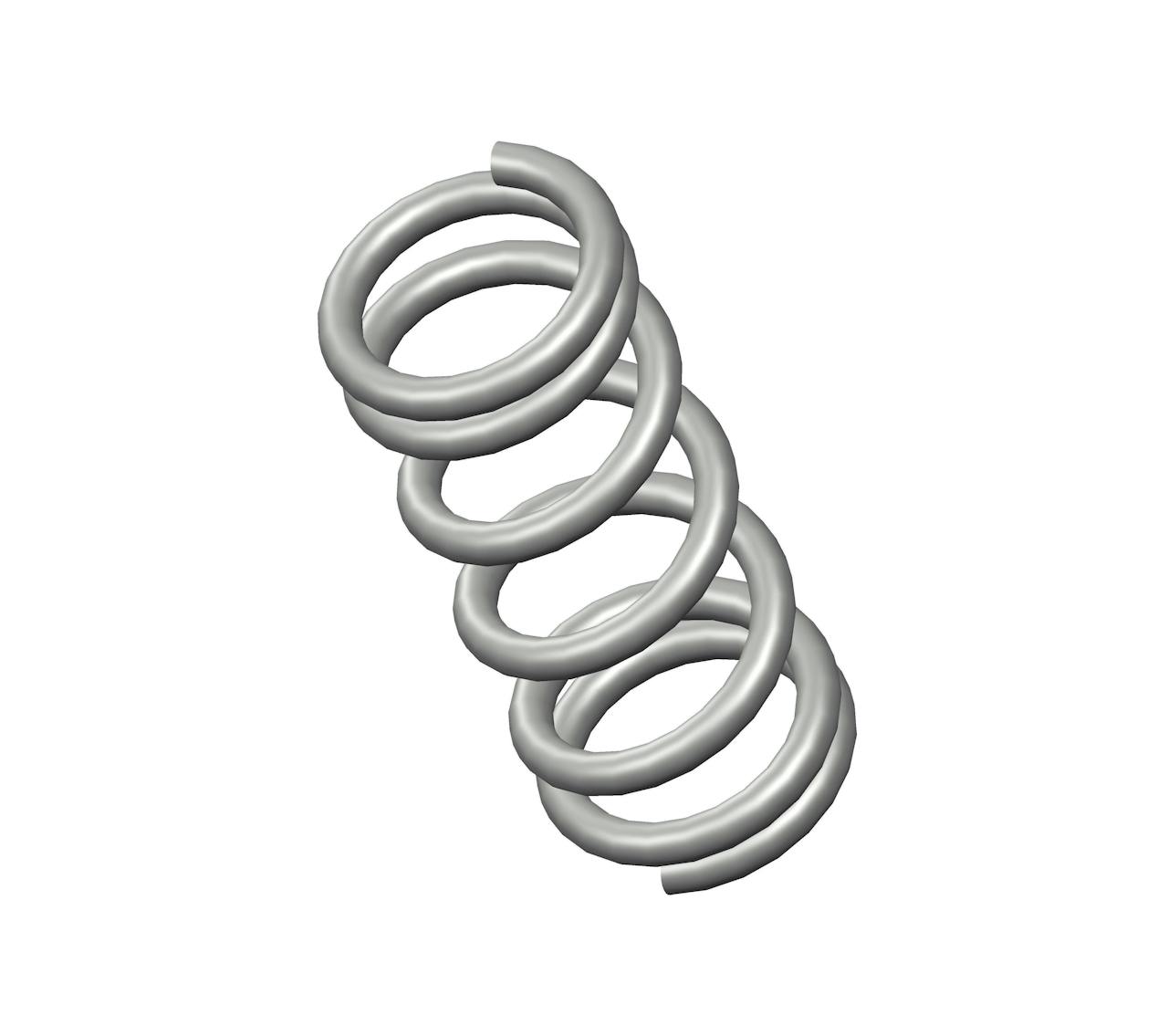

M-81CS - 0.59" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 6.5 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.17".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-81 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.59 in |
| Inside Diameter | 0.17 in |
| Material | Spring Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 41 lbs/in |
| SKU | M-81CS |
| Solid Length | 0.24 in |
| Suggested Max Deflection | 0.14 in |
| Suggested Max Load | 5.5 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.032 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-81 |
| Ends | Closed |
| Finish | None |
| Free Length | 14.99 mm |
| Inside Diameter | 4.32 mm |
| Material | Spring Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 7.18 N/mm |
| SKU | M-81CS |
| Solid Length | 6.1 mm |
| Suggested Max Deflection | 3.56 mm |
| Suggested Max Load | 24.46 N |
| Total Coils | 6.5 |
| Wire Diameter | 0.81 mm |
The compression spring M-81CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the M-81 compression spring design exhibits exceptional tensile strength and resilience.
The M-81 design is manufactured with a free length of 0.59", with an outer diameter of 0.234", an inner diameter of 0.17", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 41 lbs/in.
The M-81CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring M-81 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The M-81 design is manufactured with a free length of 0.59", with an outer diameter of 0.234", an inner diameter of 0.17", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 41 lbs/in.
The M-81CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring M-81 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
