M-71CS - 0.47" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

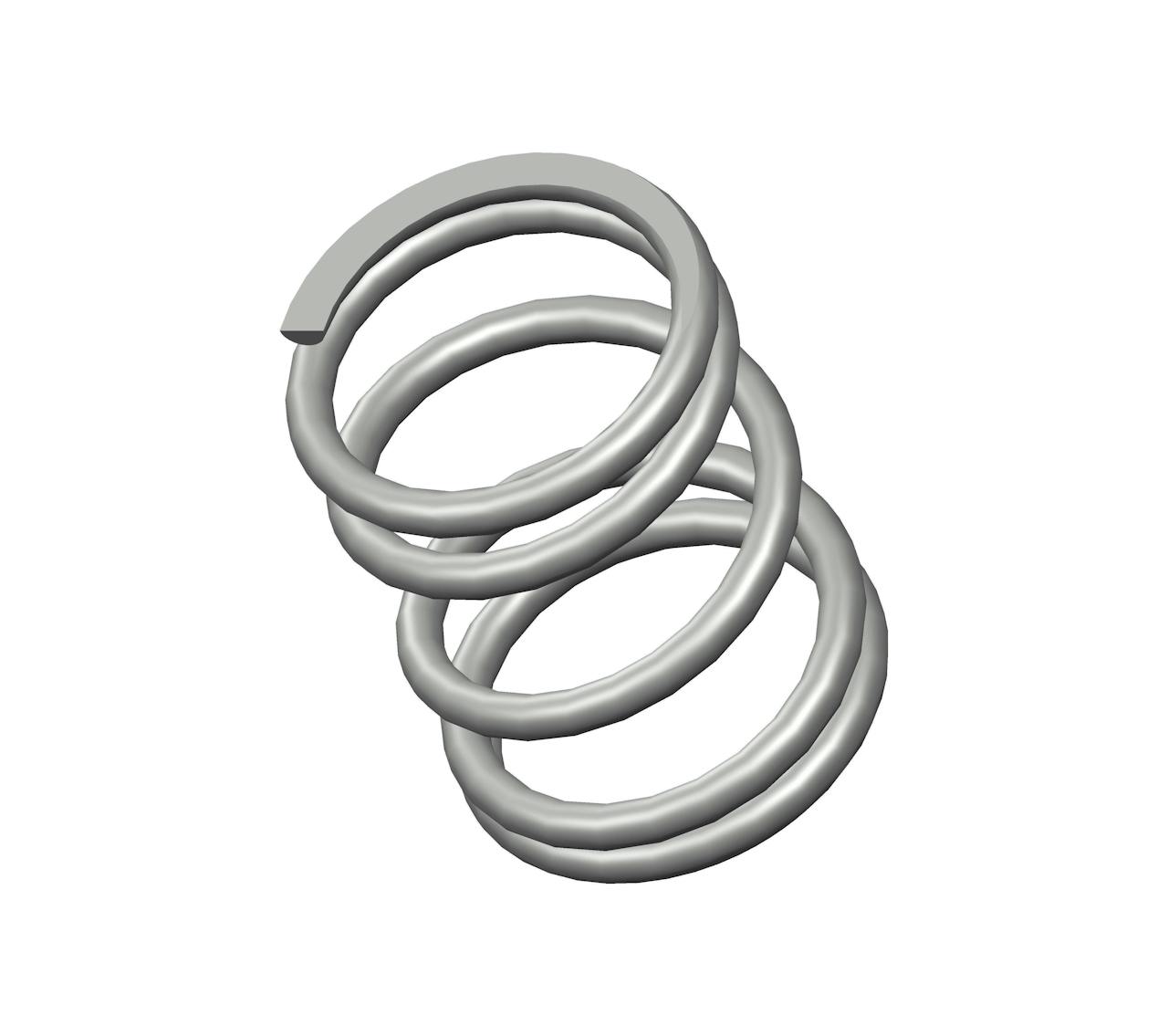

Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.286".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-71 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.47 in |
| Inside Diameter | 0.286 in |
| Material | Spring Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 27 lbs/in |
| SKU | M-71CS |
| Solid Length | 0.19 in |
| Suggested Max Deflection | 0.2 in |
| Suggested Max Load | 5.4 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-71 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 11.94 mm |
| Inside Diameter | 7.26 mm |
| Material | Spring Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 4.73 N/mm |
| SKU | M-71CS |
| Solid Length | 4.83 mm |
| Suggested Max Deflection | 5.08 mm |
| Suggested Max Load | 24.02 N |
| Total Coils | 5 |
| Wire Diameter | 0.94 mm |
The compression spring M-71CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the M-71 compression spring design exhibits exceptional tensile strength and resilience.
The M-71 design is manufactured with a free length of 0.47", with an outer diameter of 0.36", an inner diameter of 0.286", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.
The M-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring M-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The M-71 design is manufactured with a free length of 0.47", with an outer diameter of 0.36", an inner diameter of 0.286", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.
The M-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring M-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
