Century Spring

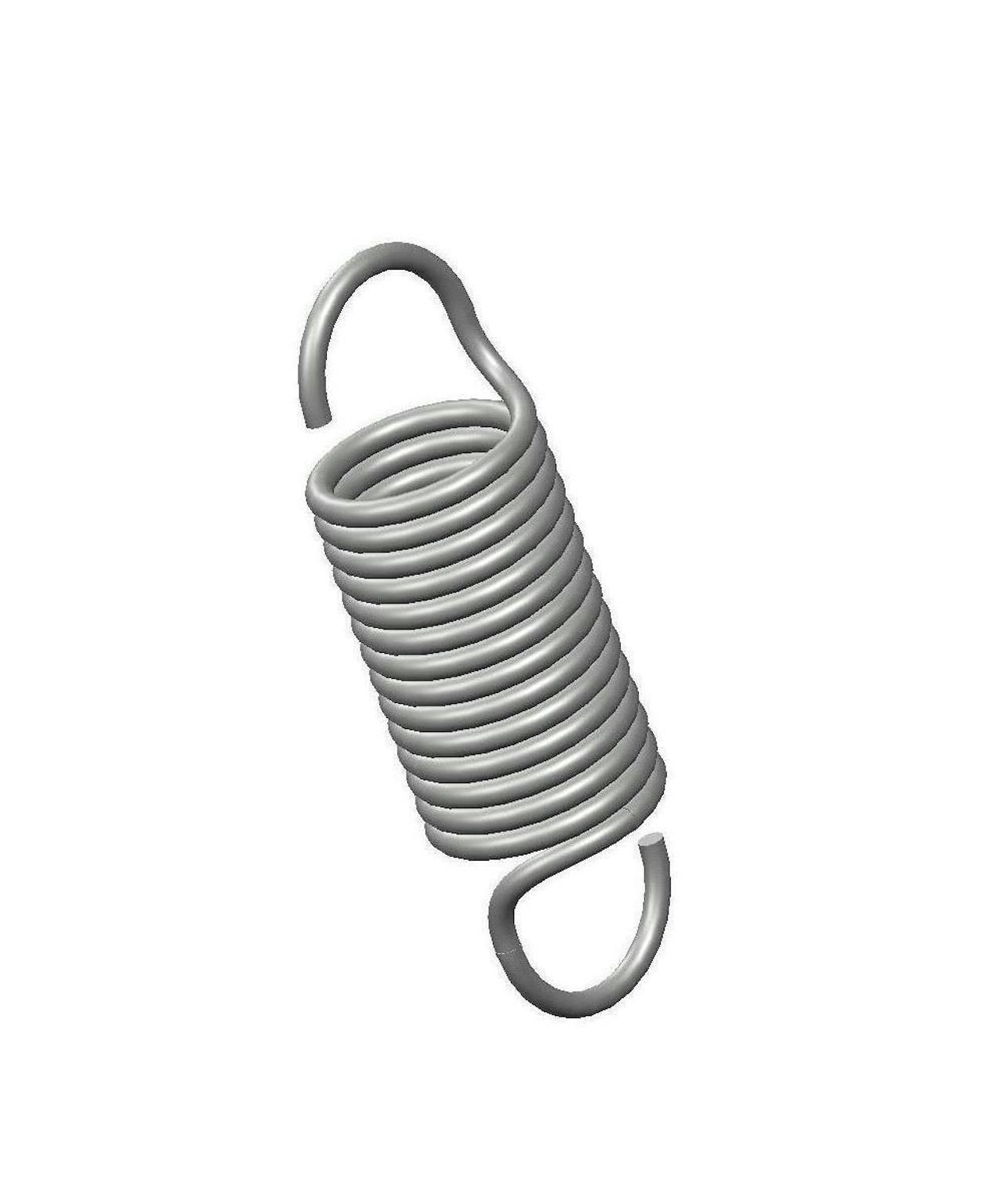

M-35CS - 0.5 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.14 Inch and an initial tension of 0.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-35
Ends Machine Hook
Finish Gold Iridite
Initial Tension 0.2 lb
Length 0.5 in
Material Music Wire
Outside Diameter 0.14 in
Part Type Standard
Rate 2.4 lbs/in
SKU M-35CS
Sugg Max Deflection 0.57 in
Sugg Max Load 1.5 lbf
Wind Direction Left
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name M-35
Ends Machine Hook
Finish Gold Iridite
Initial Tension 0.09 kg
Length 12.7 mm
Material Music Wire
Outside Diameter 3.56 mm
Part Type Standard
Rate 0.42 N/mm
SKU M-35CS
Sugg Max Deflection 14.48 mm
Sugg Max Load 6.67 N
Wind Direction Left
Wire Diameter 0.41 mm
