Century Spring

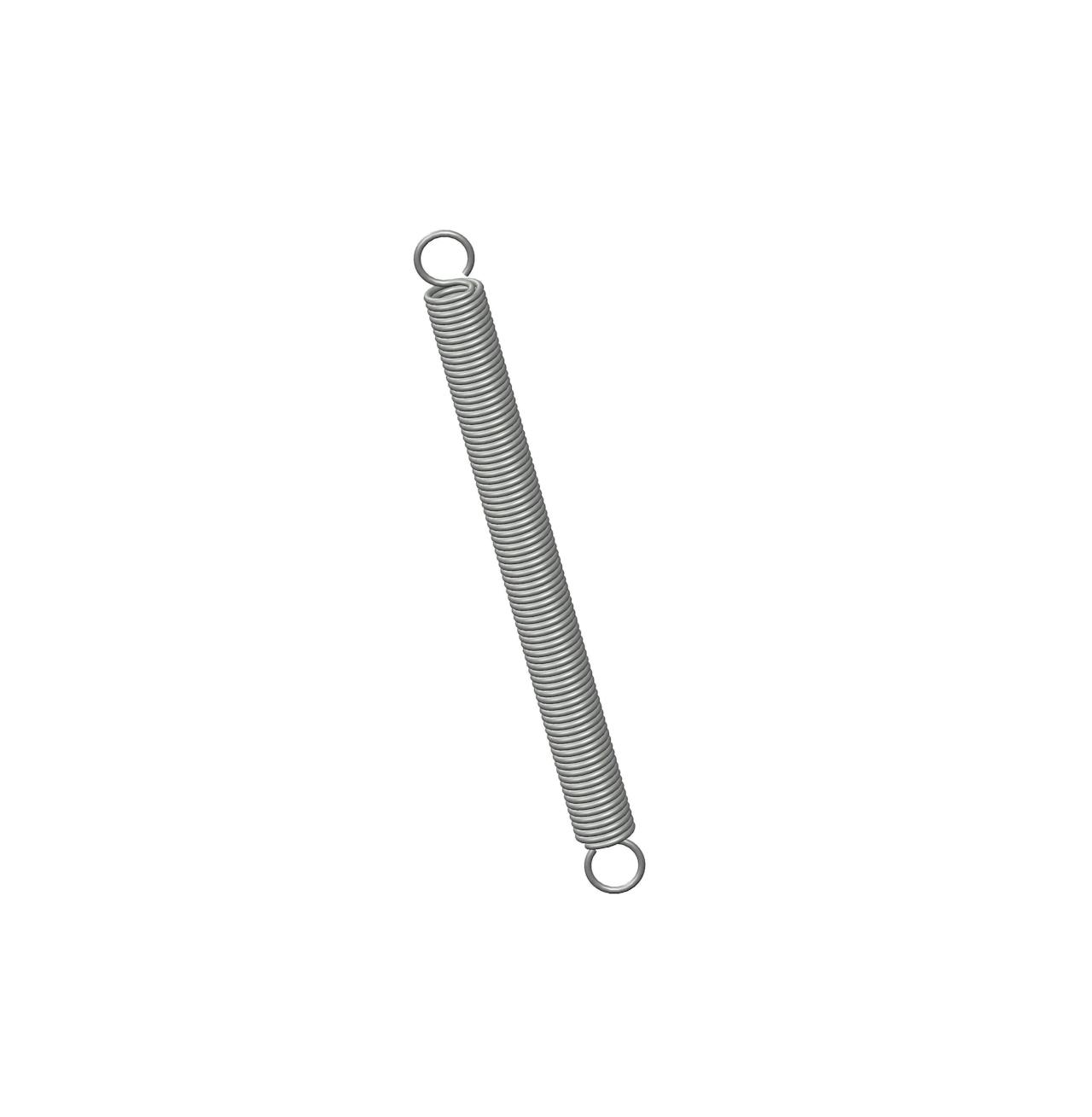

M-136CS - 2.94 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.25 Inch and an initial tension of 0.7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-136
Ends Full Loop
Finish Zinc
Initial Tension 0.7 lb
Length 2.94 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 1.2 lbs/in
SKU M-136CS
Sugg Max Deflection 3.9 in
Sugg Max Load 5.4 lbf
Wind Direction Left
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name M-136
Ends Full Loop
Finish Zinc
Initial Tension 0.32 kg
Length 74.68 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.21 N/mm
SKU M-136CS
Sugg Max Deflection 99.06 mm
Sugg Max Load 24.02 N
Wind Direction Left
Wire Diameter 0.76 mm
