M-131CS - 0.63" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

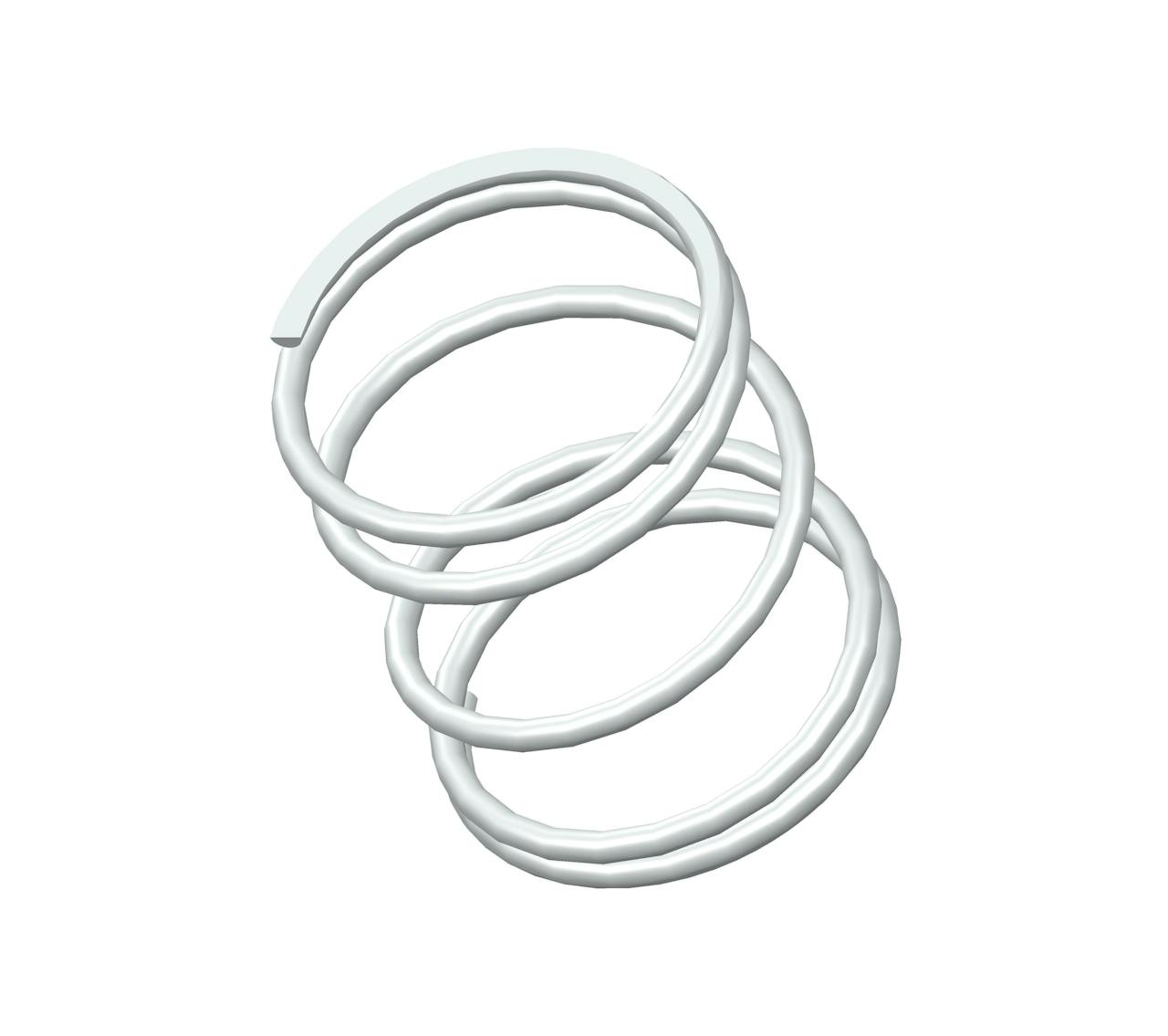

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.531", and an I.D. of 0.459".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-131
Ends Closed & Ground
Finish None
Free Length 0.63 in
Inside Diameter 0.459 in
Material 302/304 Stainless Steel
Outside Diameter 0.531 in
Part Type Standard
Rate 5.9 lbs/in
SKU M-131CS
Solid Length 0.18 in
Suggested Max Deflection 0.45 in
Suggested Max Load 2.6 lbf
Total Coils 5
Wire Diameter 0.036 in
The compression spring M-131CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the M-131 compression spring design exhibits exceptional tensile strength and resilience.

The M-131 design is manufactured with a free length of 0.63", with an outer diameter of 0.531", an inner diameter of 0.459", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.9 lbs/in.

The M-131CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring M-131 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
