Century Spring

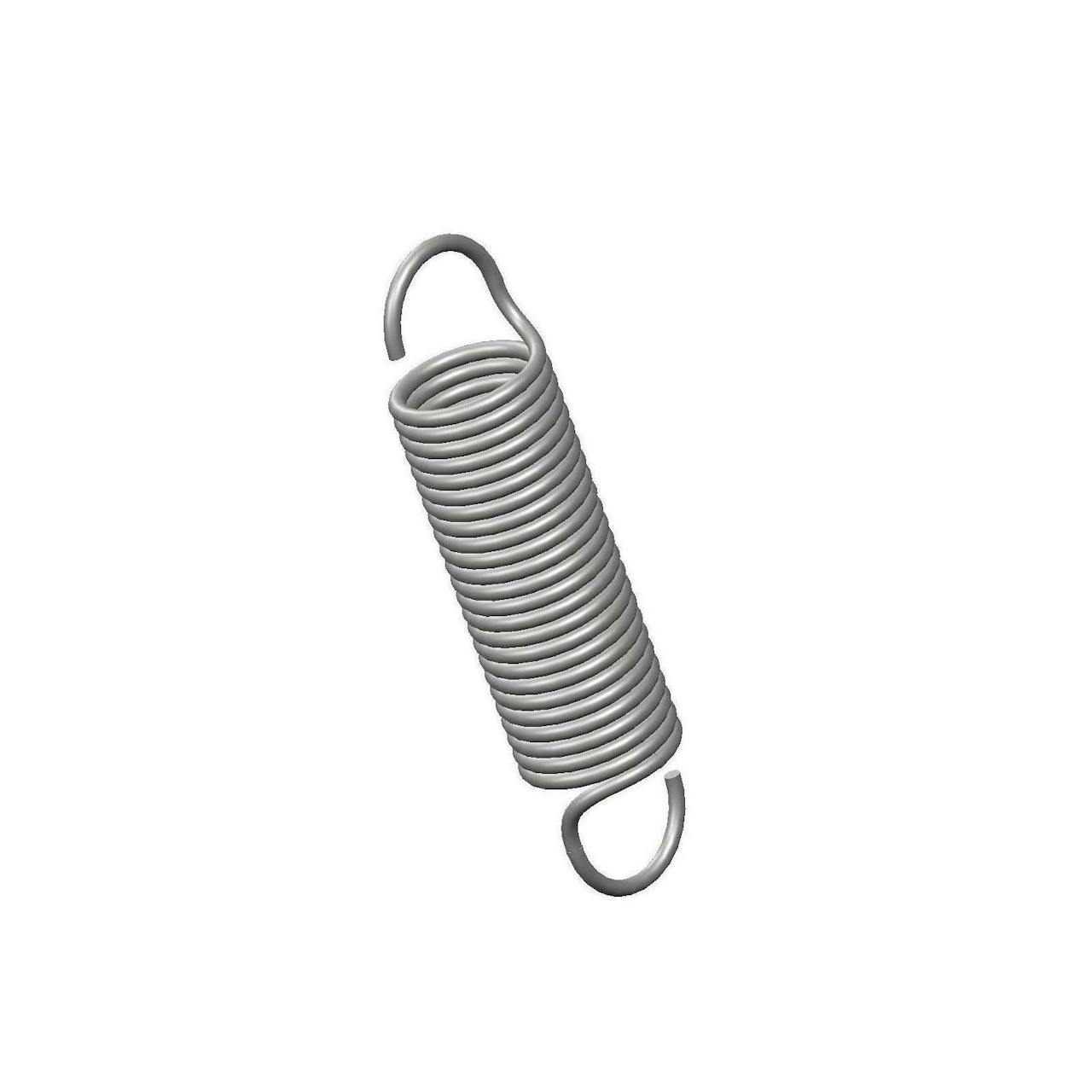

M-117CS - 0.63 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.14 Inch and an initial tension of 0.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-117
Ends Machine Hook
Finish None
Initial Tension 0.1 lb
Length 0.63 in
Material Music Wire
Outside Diameter 0.14 in
Part Type Standard
Rate 1.4 lbs/in
SKU M-117CS
Sugg Max Deflection 0.84 in
Sugg Max Load 1.3 lbf
Wind Direction Left
Wire Diameter 0.015 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name M-117
Ends Machine Hook
Finish None
Initial Tension 0.05 kg
Length 16 mm
Material Music Wire
Outside Diameter 3.56 mm
Part Type Standard
Rate 0.25 N/mm
SKU M-117CS
Sugg Max Deflection 21.34 mm
Sugg Max Load 5.78 N
Wind Direction Left
Wire Diameter 0.38 mm
