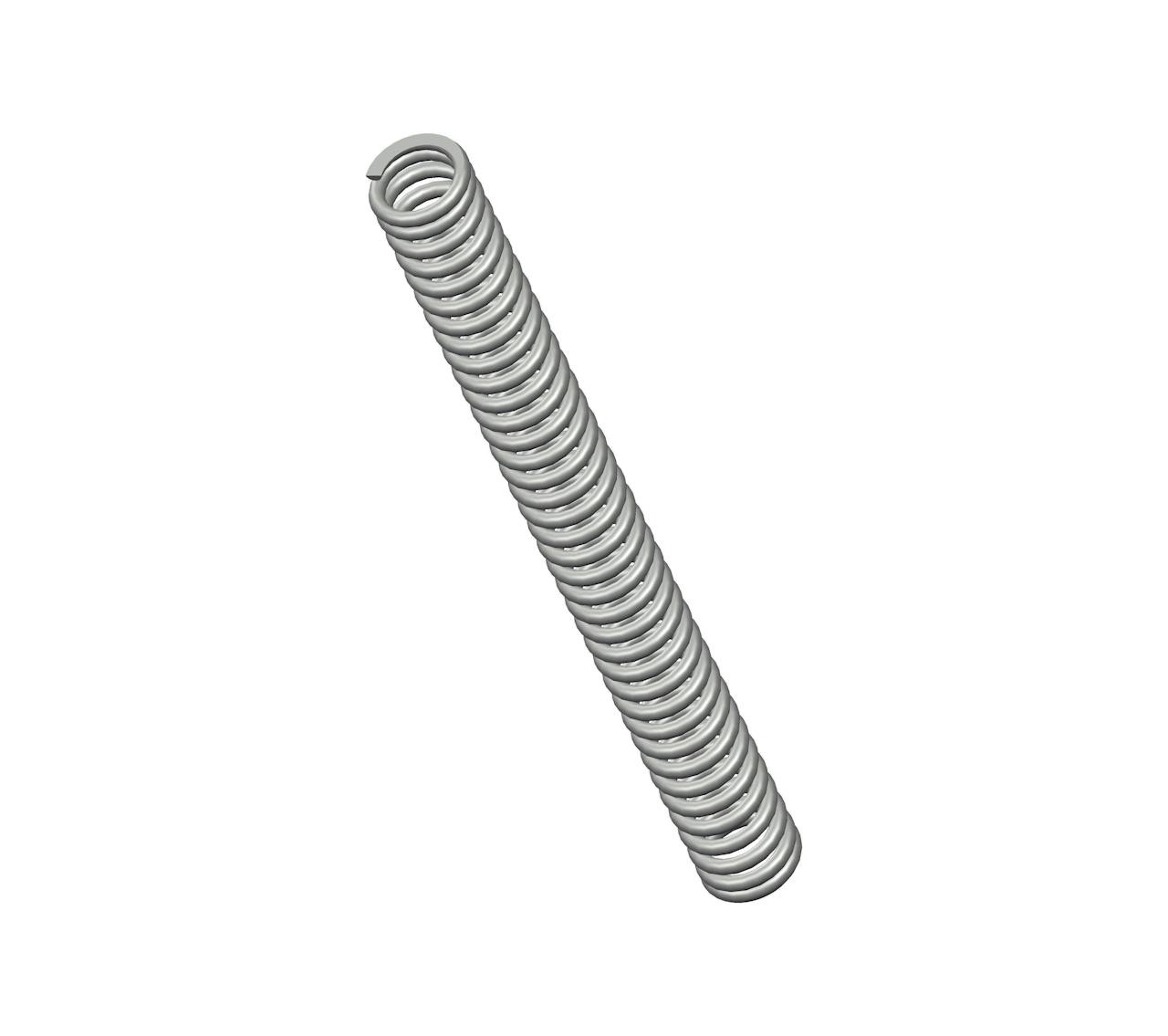

M-115CS - 3.13" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 37 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.216".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-115 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.13 in |
| Inside Diameter | 0.216 in |
| Material | Spring Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | M-115CS |
| Solid Length | 1.78 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 13 lbf |
| Total Coils | 37 |
| Wire Diameter | 0.048 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-115 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 79.5 mm |
| Inside Diameter | 5.49 mm |
| Material | Spring Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | M-115CS |
| Solid Length | 45.21 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 57.82 N |
| Total Coils | 37 |
| Wire Diameter | 1.22 mm |
The compression spring M-115CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the M-115 compression spring design exhibits exceptional tensile strength and resilience.
The M-115 design is manufactured with a free length of 3.13", with an outer diameter of 0.312", an inner diameter of 0.216", and a total of 37 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The M-115CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring M-115 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The M-115 design is manufactured with a free length of 3.13", with an outer diameter of 0.312", an inner diameter of 0.216", and a total of 37 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The M-115CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring M-115 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
