M-111CS - 1.22" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

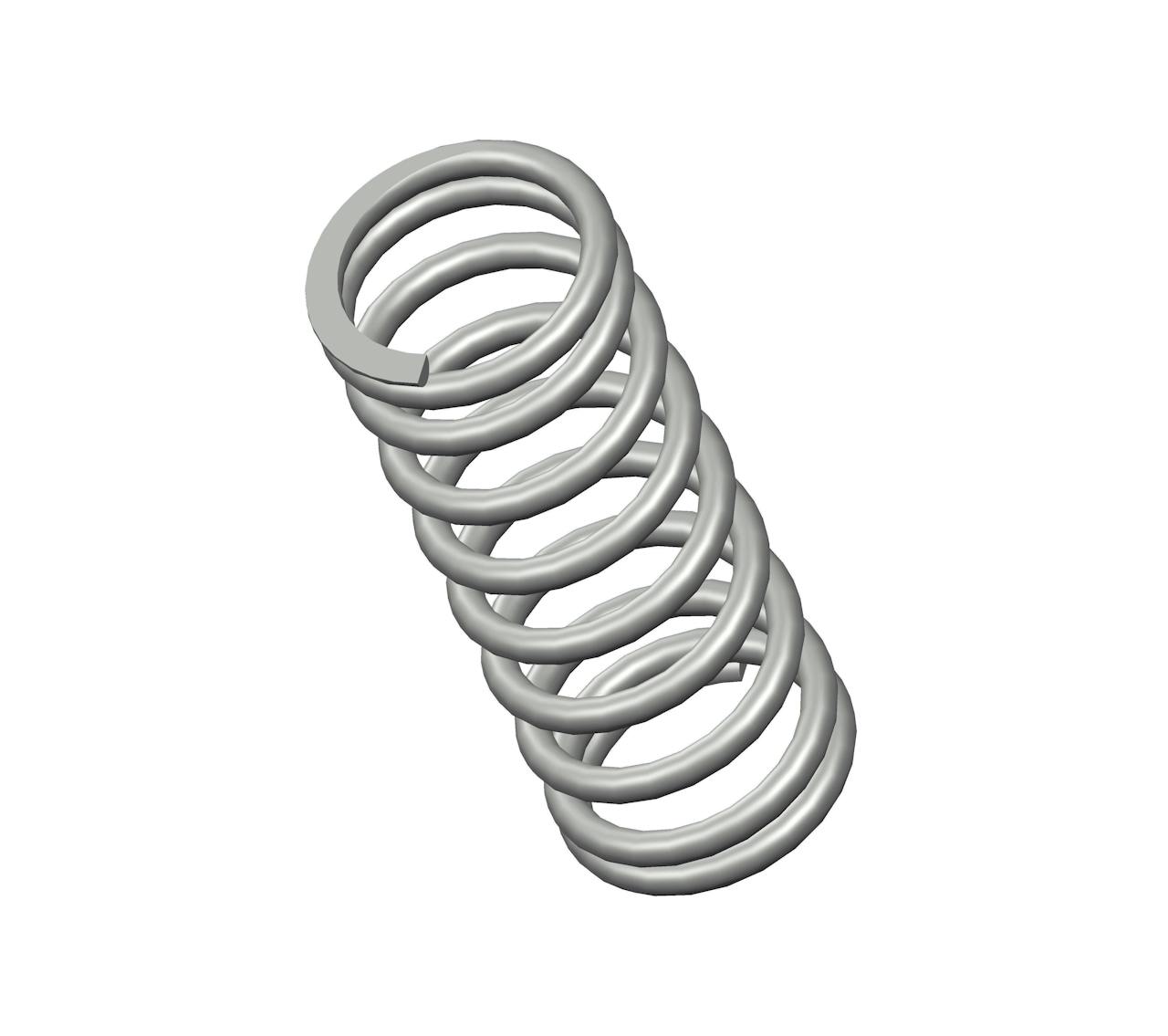

Compression spring manufactured from spring steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.468", and an I.D. of 0.36".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-111
Ends Closed & Ground
Finish Zinc
Free Length 1.22 in
Inside Diameter 0.36 in
Material Spring Steel
Outside Diameter 0.468 in
Part Type Standard
Rate 23 lbs/in
SKU M-111CS
Solid Length 0.51 in
Suggested Max Deflection 0.52 in
Suggested Max Load 12 lbf
Total Coils 9.5
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name M-111
Ends Closed & Ground
Finish Zinc
Free Length 30.99 mm
Inside Diameter 9.14 mm
Material Spring Steel
Outside Diameter 11.89 mm
Part Type Standard
Rate 4.03 N/mm
SKU M-111CS
Solid Length 12.95 mm
Suggested Max Deflection 13.21 mm
Suggested Max Load 53.38 N
Total Coils 9.5
Wire Diameter 1.37 mm
The compression spring M-111CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the M-111 compression spring design exhibits exceptional tensile strength and resilience.

The M-111 design is manufactured with a free length of 1.22", with an outer diameter of 0.468", an inner diameter of 0.36", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 23 lbs/in.

The M-111CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring M-111 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
