M-102CS - 0.53" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

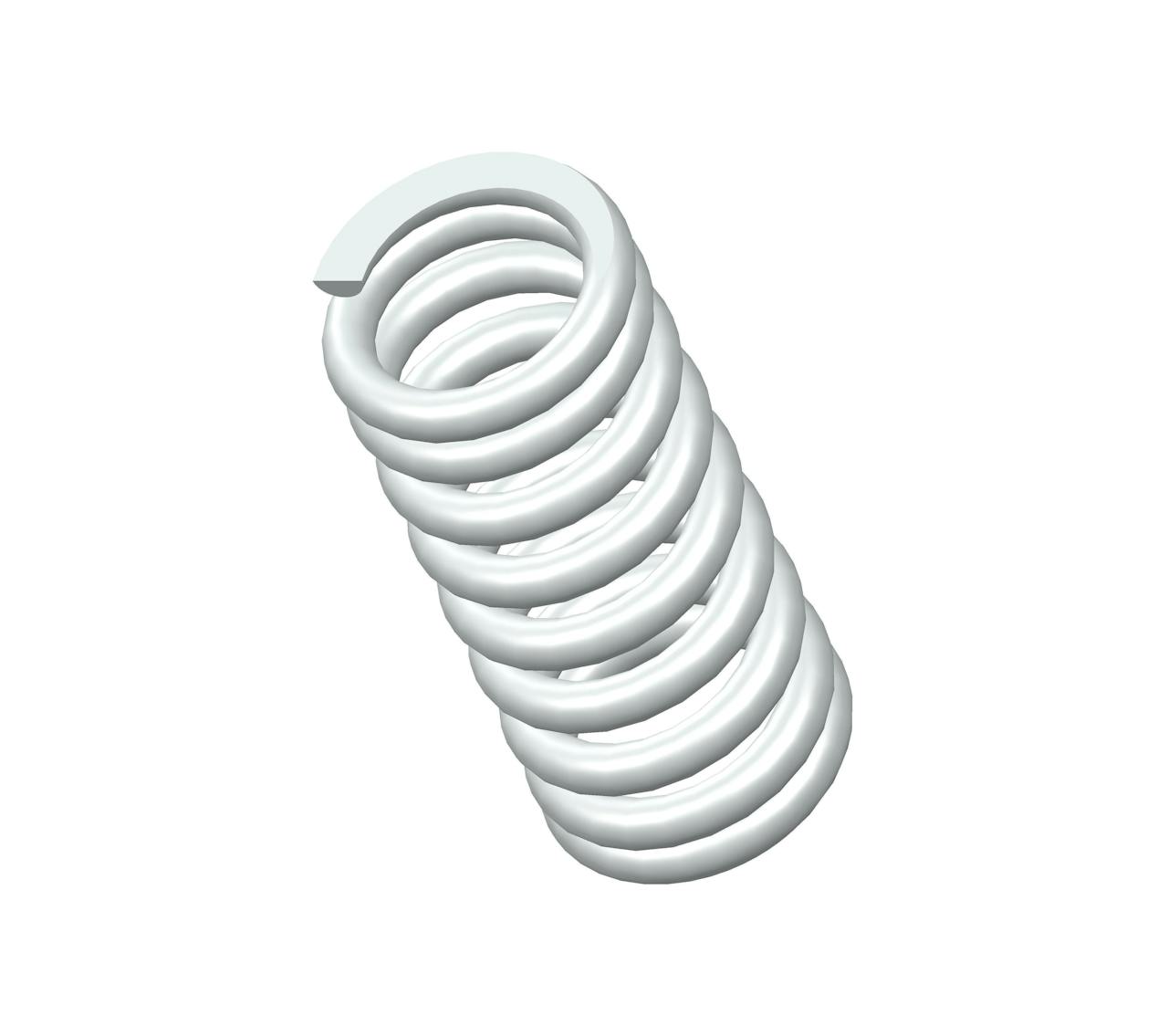

Compression spring manufactured from 302/304 stainless steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.16".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-102 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.53 in |
| Inside Diameter | 0.16 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 45 lbs/in |
| SKU | M-102CS |
| Solid Length | 0.33 in |
| Suggested Max Deflection | 0.17 in |
| Suggested Max Load | 7.5 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | M-102 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 13.46 mm |
| Inside Diameter | 4.06 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 7.88 N/mm |
| SKU | M-102CS |
| Solid Length | 8.38 mm |
| Suggested Max Deflection | 4.32 mm |
| Suggested Max Load | 33.36 N |
| Total Coils | 9 |
| Wire Diameter | 0.94 mm |
The compression spring M-102CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the M-102 compression spring design exhibits exceptional tensile strength and resilience.
The M-102 design is manufactured with a free length of 0.53", with an outer diameter of 0.234", an inner diameter of 0.16", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 45 lbs/in.
The M-102CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring M-102 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The M-102 design is manufactured with a free length of 0.53", with an outer diameter of 0.234", an inner diameter of 0.16", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 45 lbs/in.
The M-102CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring M-102 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
