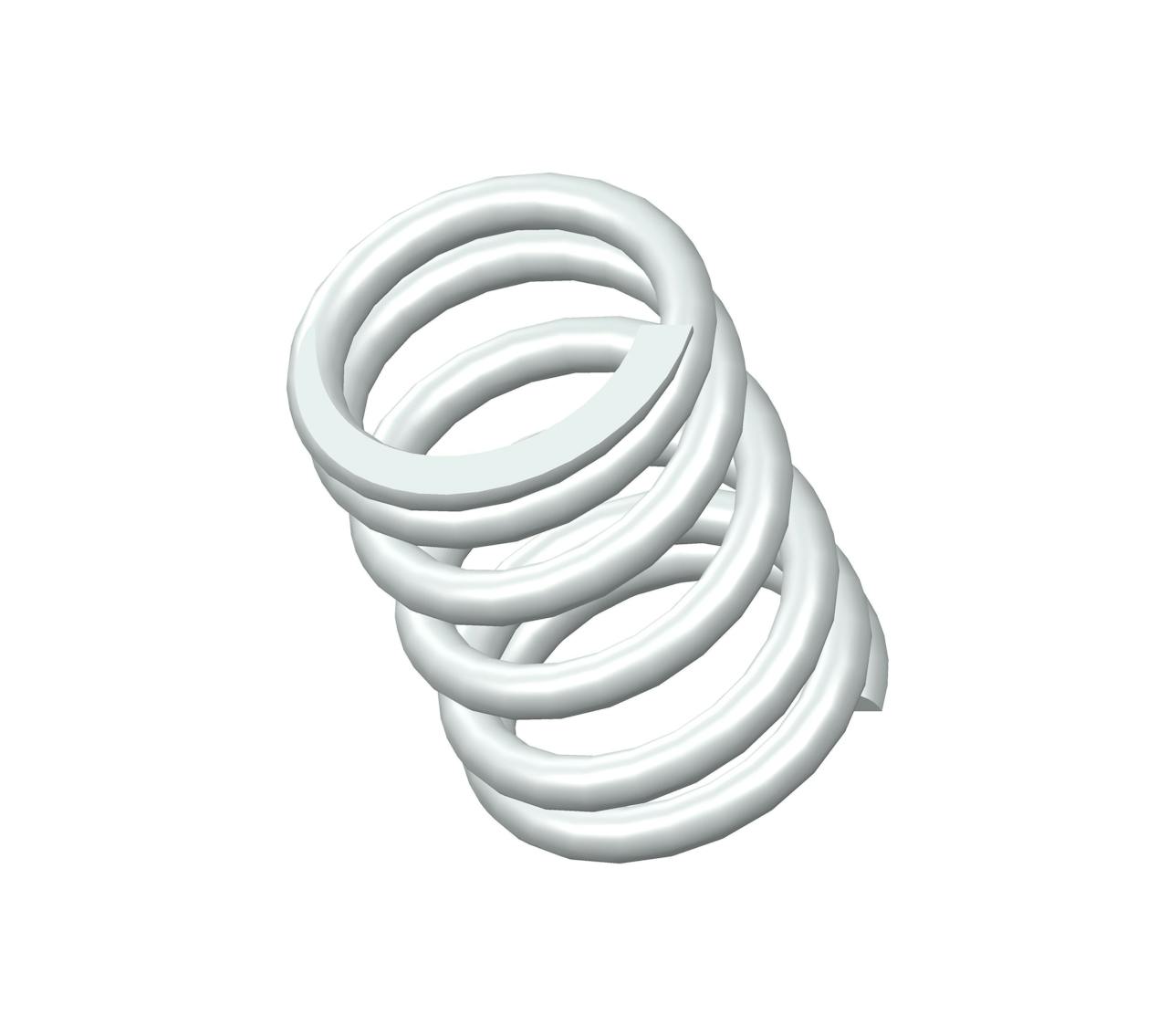

LL-16CS - 0.44" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.232".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | LL-16 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.44 in |
| Inside Diameter | 0.232 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 41 lbs/in |
| SKU | LL-16CS |
| Solid Length | 0.24 in |
| Suggested Max Deflection | 0.18 in |
| Suggested Max Load | 7.3 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | LL-16 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 11.18 mm |
| Inside Diameter | 5.89 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 7.18 N/mm |
| SKU | LL-16CS |
| Solid Length | 6.1 mm |
| Suggested Max Deflection | 4.57 mm |
| Suggested Max Load | 32.47 N |
| Total Coils | 6 |
| Wire Diameter | 1.02 mm |
The compression spring LL-16CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the LL-16 compression spring design exhibits exceptional tensile strength and resilience.
The LL-16 design is manufactured with a free length of 0.44", with an outer diameter of 0.312", an inner diameter of 0.232", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 41 lbs/in.
The LL-16CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring LL-16 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The LL-16 design is manufactured with a free length of 0.44", with an outer diameter of 0.312", an inner diameter of 0.232", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 41 lbs/in.
The LL-16CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring LL-16 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
