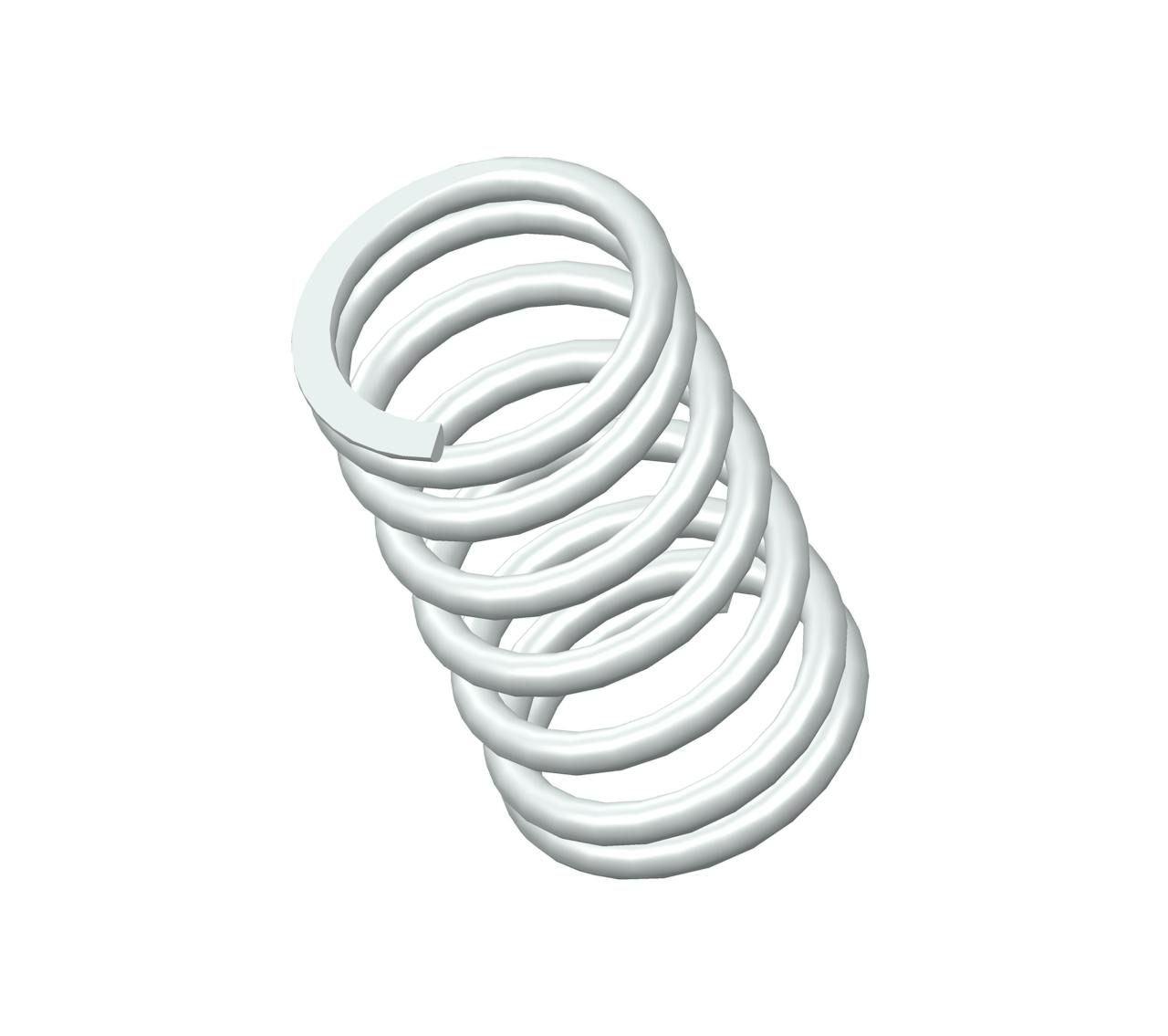

L-99CS - 0.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.28".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-99 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.28 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 18 lbs/in |
| SKU | L-99CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.33 in |
| Suggested Max Load | 5.8 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-99 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 7.11 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 3.15 N/mm |
| SKU | L-99CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 8.38 mm |
| Suggested Max Load | 25.8 N |
| Total Coils | 7.5 |
| Wire Diameter | 1.02 mm |
The compression spring L-99CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the L-99 compression spring design exhibits exceptional tensile strength and resilience.
The L-99 design is manufactured with a free length of 0.63", with an outer diameter of 0.36", an inner diameter of 0.28", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 18 lbs/in.
The L-99CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-99 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-99 design is manufactured with a free length of 0.63", with an outer diameter of 0.36", an inner diameter of 0.28", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 18 lbs/in.
The L-99CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-99 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
