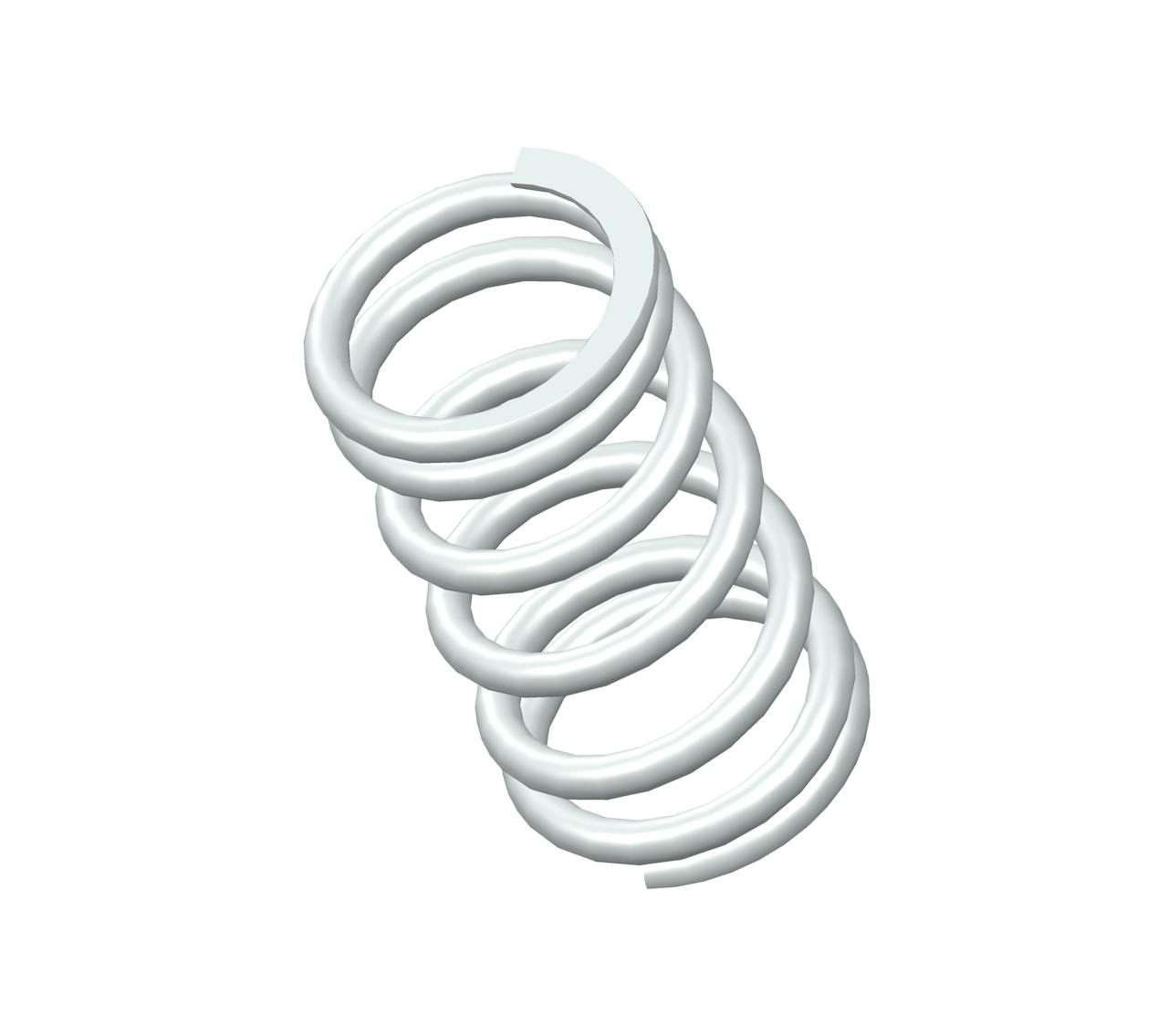

L-92CS - 0.47" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6.5 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.19".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-92 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.47 in |
| Inside Diameter | 0.19 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 22 lbs/in |
| SKU | L-92CS |
| Solid Length | 0.2 in |
| Suggested Max Deflection | 0.19 in |
| Suggested Max Load | 4 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-92 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 11.94 mm |
| Inside Diameter | 4.83 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 3.85 N/mm |
| SKU | L-92CS |
| Solid Length | 5.08 mm |
| Suggested Max Deflection | 4.83 mm |
| Suggested Max Load | 17.79 N |
| Total Coils | 6.5 |
| Wire Diameter | 0.76 mm |
The compression spring L-92CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the L-92 compression spring design exhibits exceptional tensile strength and resilience.
The L-92 design is manufactured with a free length of 0.47", with an outer diameter of 0.25", an inner diameter of 0.19", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The L-92CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-92 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-92 design is manufactured with a free length of 0.47", with an outer diameter of 0.25", an inner diameter of 0.19", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The L-92CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-92 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
