L-8CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

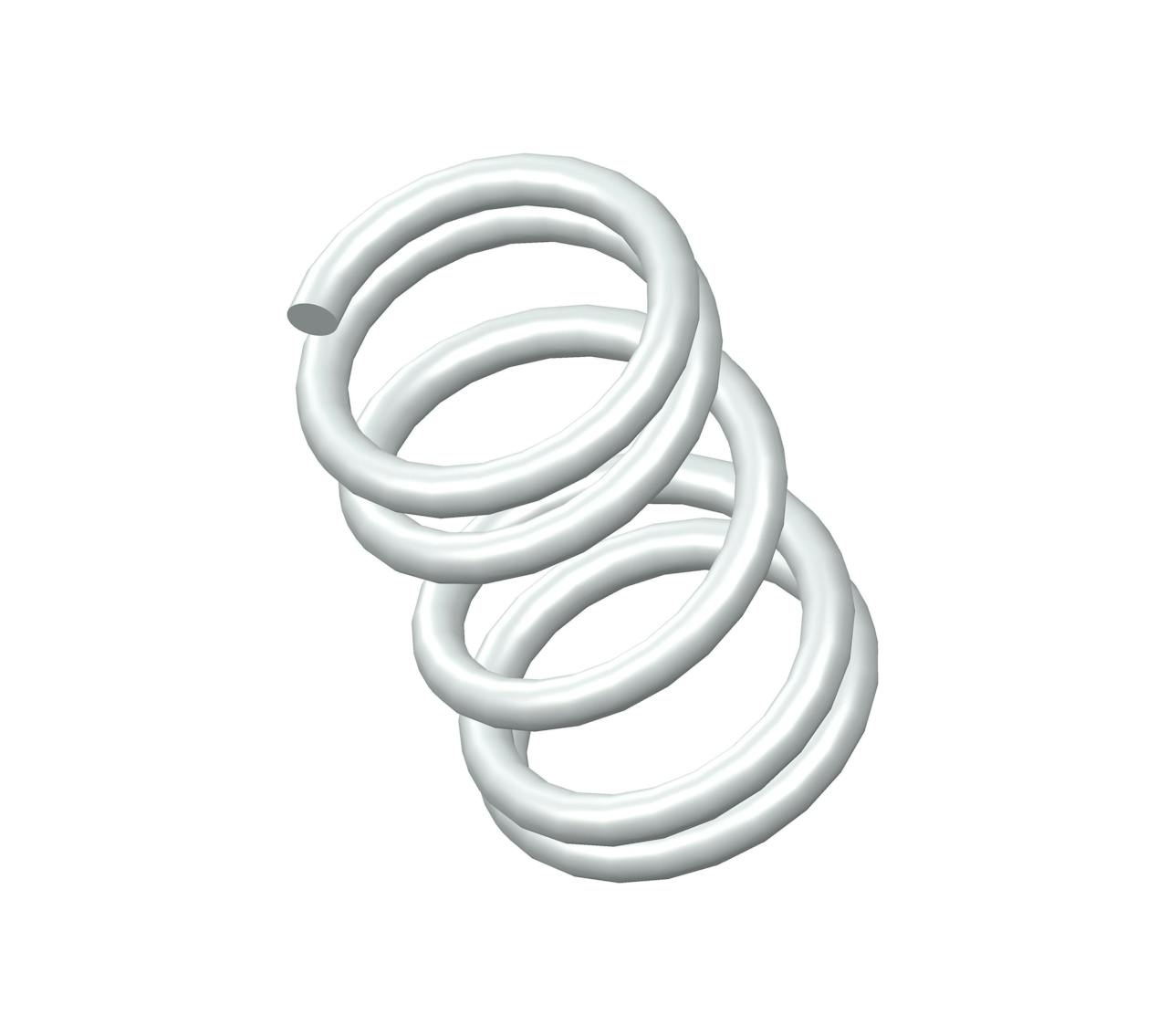

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.236".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-8 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.236 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 42 lbs/in |
| SKU | L-8CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.15 in |
| Suggested Max Load | 6.3 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.038 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-8 |
| Ends | Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 5.99 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 7.35 N/mm |
| SKU | L-8CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 3.81 mm |
| Suggested Max Load | 28.02 N |
| Total Coils | 5 |
| Wire Diameter | 0.97 mm |
The compression spring L-8CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the L-8 compression spring design exhibits exceptional tensile strength and resilience.
The L-8 design is manufactured with a free length of 0.5", with an outer diameter of 0.312", an inner diameter of 0.236", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 42 lbs/in.
The L-8CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-8 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-8 design is manufactured with a free length of 0.5", with an outer diameter of 0.312", an inner diameter of 0.236", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 42 lbs/in.
The L-8CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-8 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
