L-69CS - 0.94" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

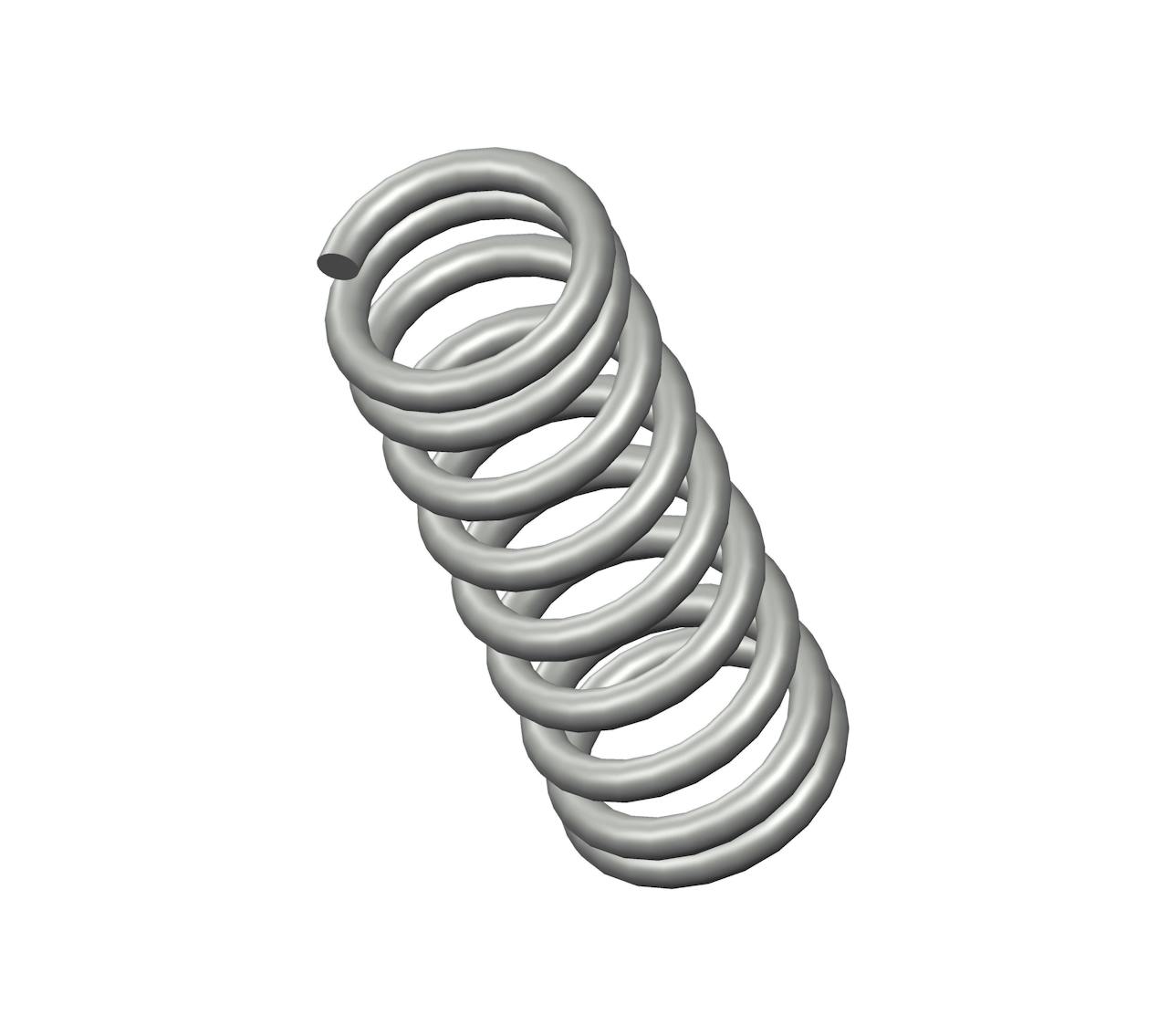

Compression spring manufactured from spring steel with 9 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.247".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name L-69
Ends Closed
Finish Zinc
Free Length 0.94 in
Inside Diameter 0.247 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 42 lbs/in
SKU L-69CS
Solid Length 0.48 in
Suggested Max Deflection 0.28 in
Suggested Max Load 12 lbf
Total Coils 9
Wire Diameter 0.048 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name L-69
Ends Closed
Finish Zinc
Free Length 23.88 mm
Inside Diameter 6.27 mm
Material Spring Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 7.35 N/mm
SKU L-69CS
Solid Length 12.19 mm
Suggested Max Deflection 7.11 mm
Suggested Max Load 53.38 N
Total Coils 9
Wire Diameter 1.22 mm
The L-69CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.048" diameter spring steel, the L-69 spring design exhibits reliable strength across its 9 active coils, withstanding repeated compression cycles with a maximum load of 12 lbf without succumbing to fatigue.

We manufacture the L-69 design to provide a compression spring that is 0.94" long at rest and provides a consistent rate of 42 lbs/in along its recommended maximum of 0.28" deflection. For best results, your application should fully accommodate the inner (0.247") and outer (0.343") diameters of this spring and be designed for its closed end configuration.
