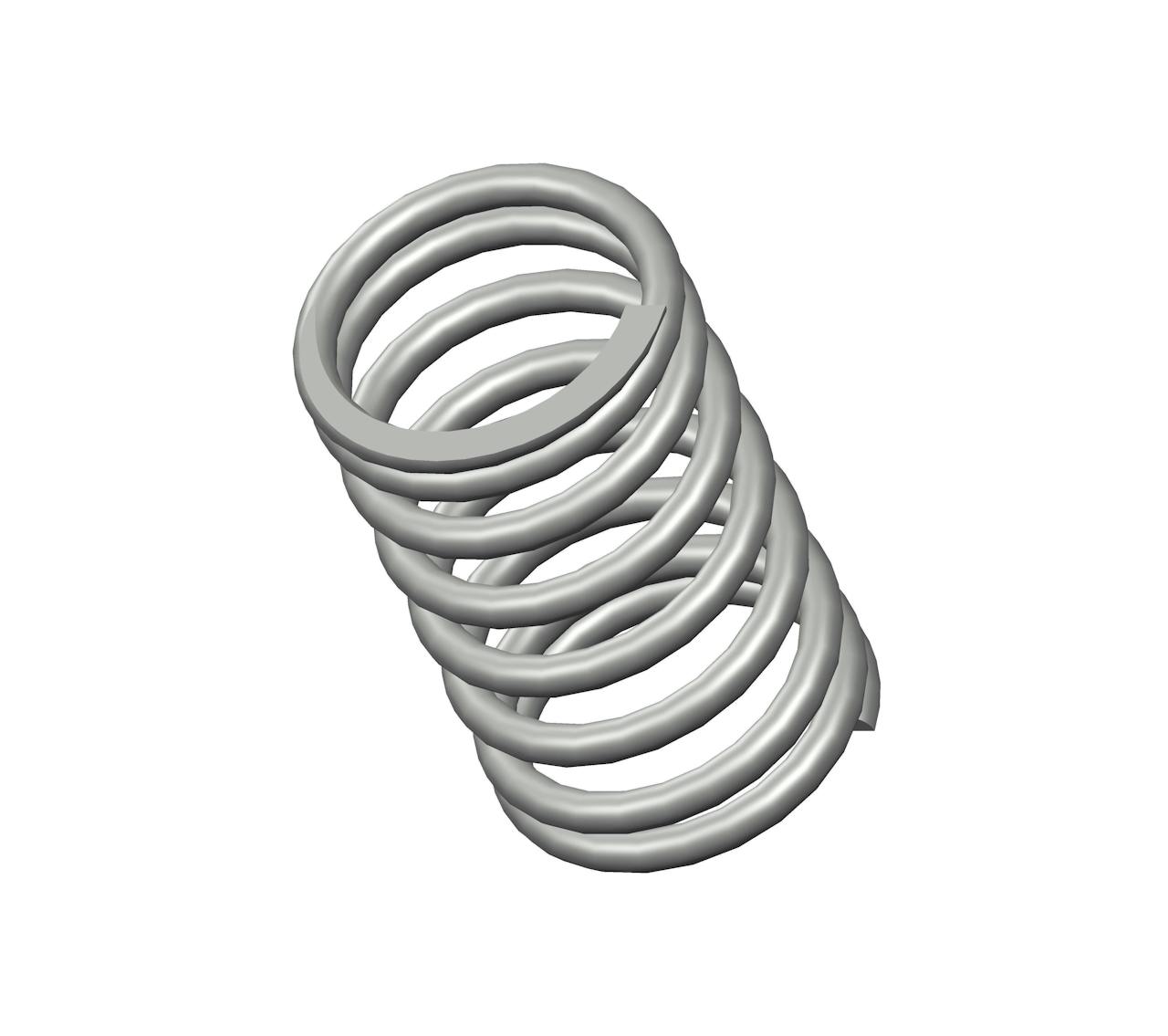

L-64CS - 1.06" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.491".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-64 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.06 in |
| Inside Diameter | 0.491 in |
| Material | Spring Steel |
| Outside Diameter | 0.625 in |
| Part Type | Standard |
| Rate | 28 lbs/in |
| SKU | L-64CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 0.53 in |
| Suggested Max Load | 15 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.067 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-64 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 26.92 mm |
| Inside Diameter | 12.47 mm |
| Material | Spring Steel |
| Outside Diameter | 15.88 mm |
| Part Type | Standard |
| Rate | 4.9 N/mm |
| SKU | L-64CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 13.46 mm |
| Suggested Max Load | 66.72 N |
| Total Coils | 8 |
| Wire Diameter | 1.7 mm |
The compression spring L-64CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the L-64 compression spring design exhibits exceptional tensile strength and resilience.
The L-64 design is manufactured with a free length of 1.06", with an outer diameter of 0.625", an inner diameter of 0.491", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.
The L-64CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-64 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-64 design is manufactured with a free length of 1.06", with an outer diameter of 0.625", an inner diameter of 0.491", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.
The L-64CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-64 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
