L-61CS - 2.31" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

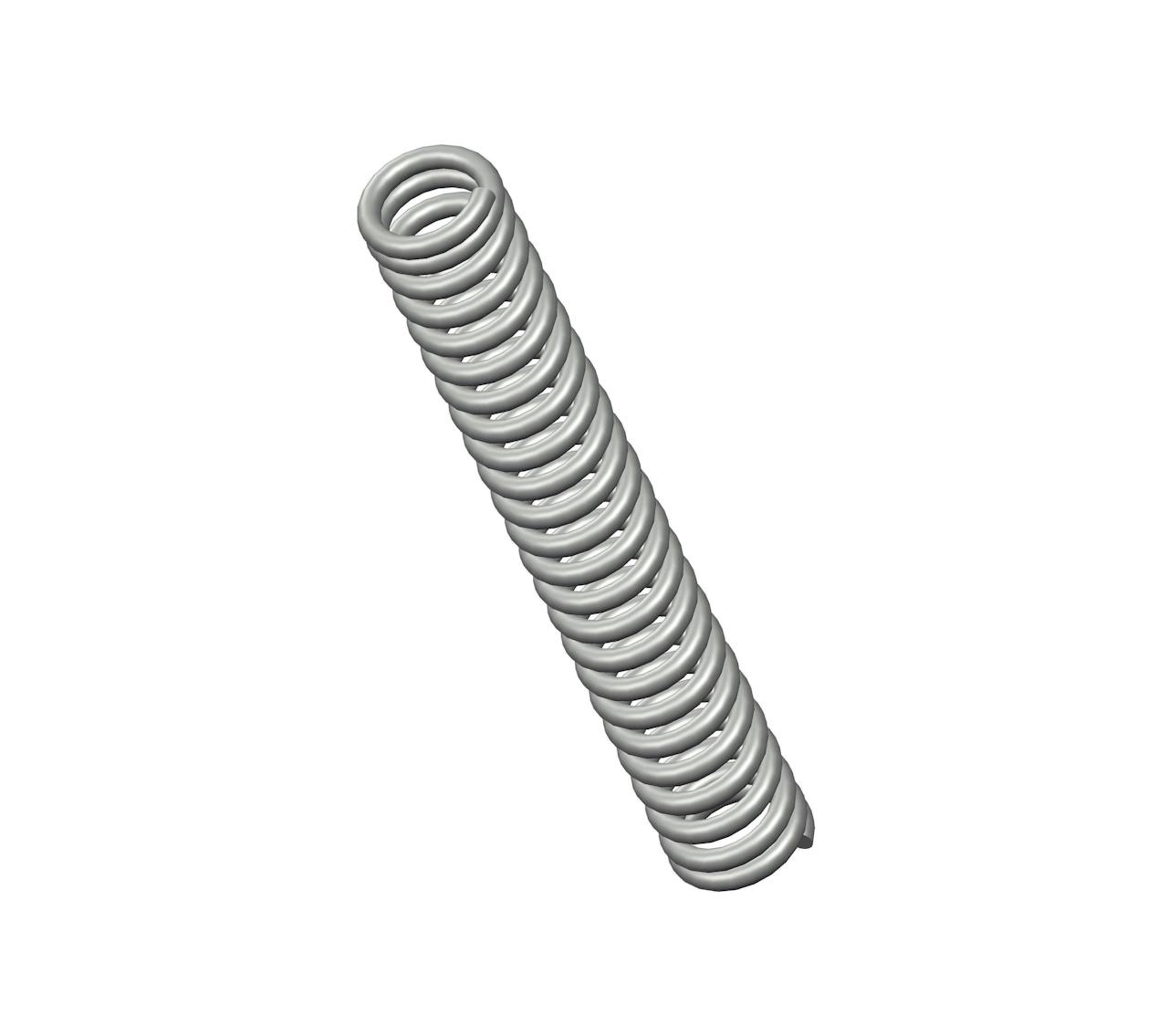

Compression spring manufactured from spring steel with 24 coils and closed ends. This spring features an O.D. of 0.328", and an I.D. of 0.222".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-61 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 2.31 in |
| Inside Diameter | 0.222 in |
| Material | Spring Steel |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 25 lbs/in |
| SKU | L-61CS |
| Solid Length | 1.33 in |
| Suggested Max Deflection | 0.63 in |
| Suggested Max Load | 16 lbf |
| Total Coils | 24 |
| Wire Diameter | 0.053 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-61 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 58.67 mm |
| Inside Diameter | 5.64 mm |
| Material | Spring Steel |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 4.38 N/mm |
| SKU | L-61CS |
| Solid Length | 33.78 mm |
| Suggested Max Deflection | 16 mm |
| Suggested Max Load | 71.17 N |
| Total Coils | 24 |
| Wire Diameter | 1.35 mm |
The compression spring L-61CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the L-61 compression spring design exhibits exceptional tensile strength and resilience.
The L-61 design is manufactured with a free length of 2.31", with an outer diameter of 0.328", an inner diameter of 0.222", and a total of 24 coils, expertly designed to deliver consistent compression characteristics including a rate of 25 lbs/in.
The L-61CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-61 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-61 design is manufactured with a free length of 2.31", with an outer diameter of 0.328", an inner diameter of 0.222", and a total of 24 coils, expertly designed to deliver consistent compression characteristics including a rate of 25 lbs/in.
The L-61CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-61 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
