L-50CS - 1.13" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

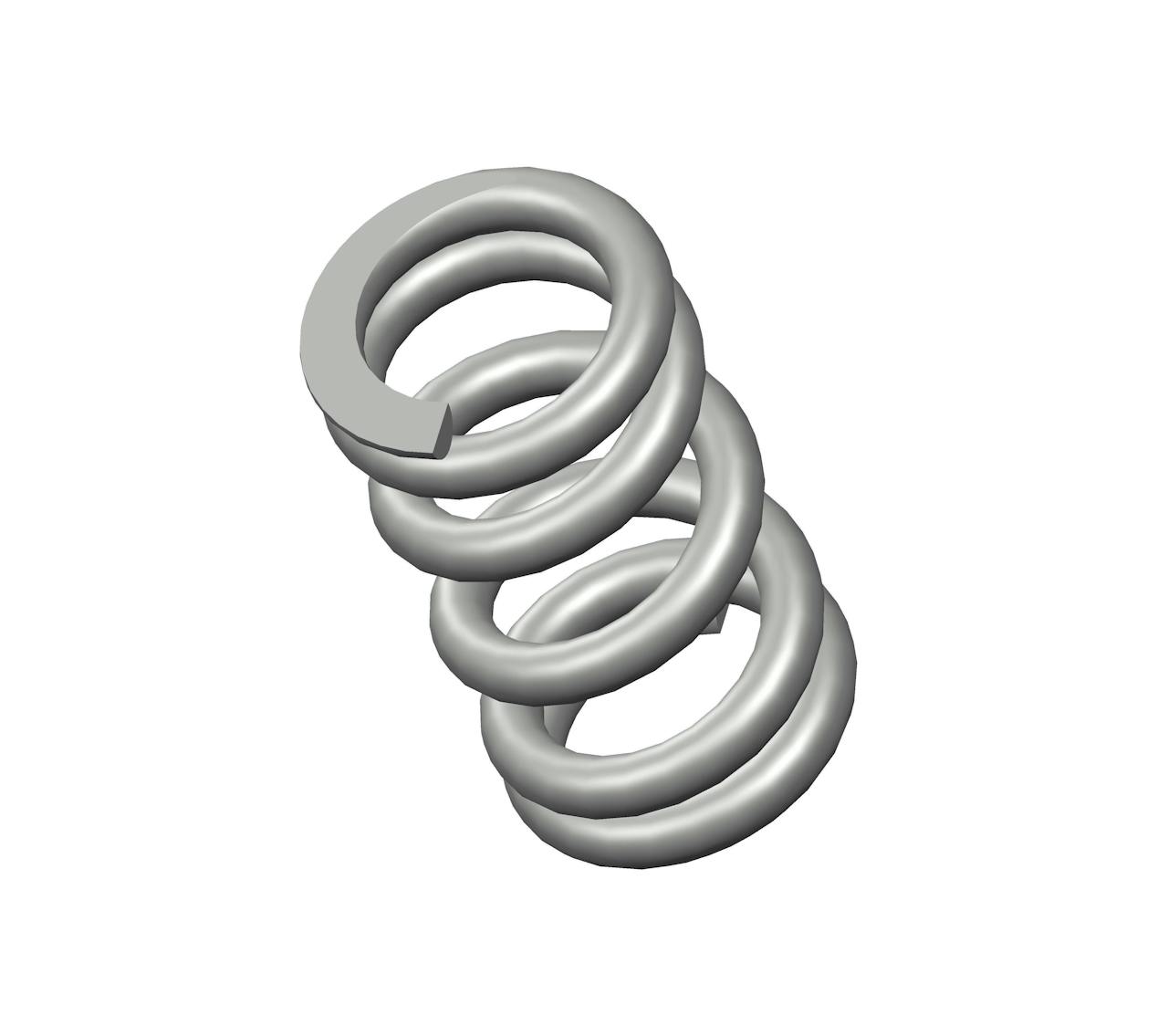

Compression spring manufactured from spring steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.415".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name L-50
Ends Closed & Ground
Finish Zinc
Free Length 1.13 in
Inside Diameter 0.415 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 355 lbs/in
SKU L-50CS
Solid Length 0.58 in
Suggested Max Deflection 0.16 in
Suggested Max Load 58 lbf
Total Coils 5.5
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name L-50
Ends Closed & Ground
Finish Zinc
Free Length 28.7 mm
Inside Diameter 10.54 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 62.16 N/mm
SKU L-50CS
Solid Length 14.73 mm
Suggested Max Deflection 4.06 mm
Suggested Max Load 257.98 N
Total Coils 5.5
Wire Diameter 2.67 mm
The L-50CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.105" diameter spring steel, the L-50 spring design exhibits reliable strength across its 5.5 active coils, withstanding repeated compression cycles with a maximum load of 58 lbf without succumbing to fatigue.

We manufacture the L-50 design to provide a compression spring that is 1.13" long at rest and provides a consistent rate of 355 lbs/in along its recommended maximum of 0.16" deflection. For best results, your application should fully accommodate the inner (0.415") and outer (0.625") diameters of this spring and be designed for its closed & ground end configuration.
