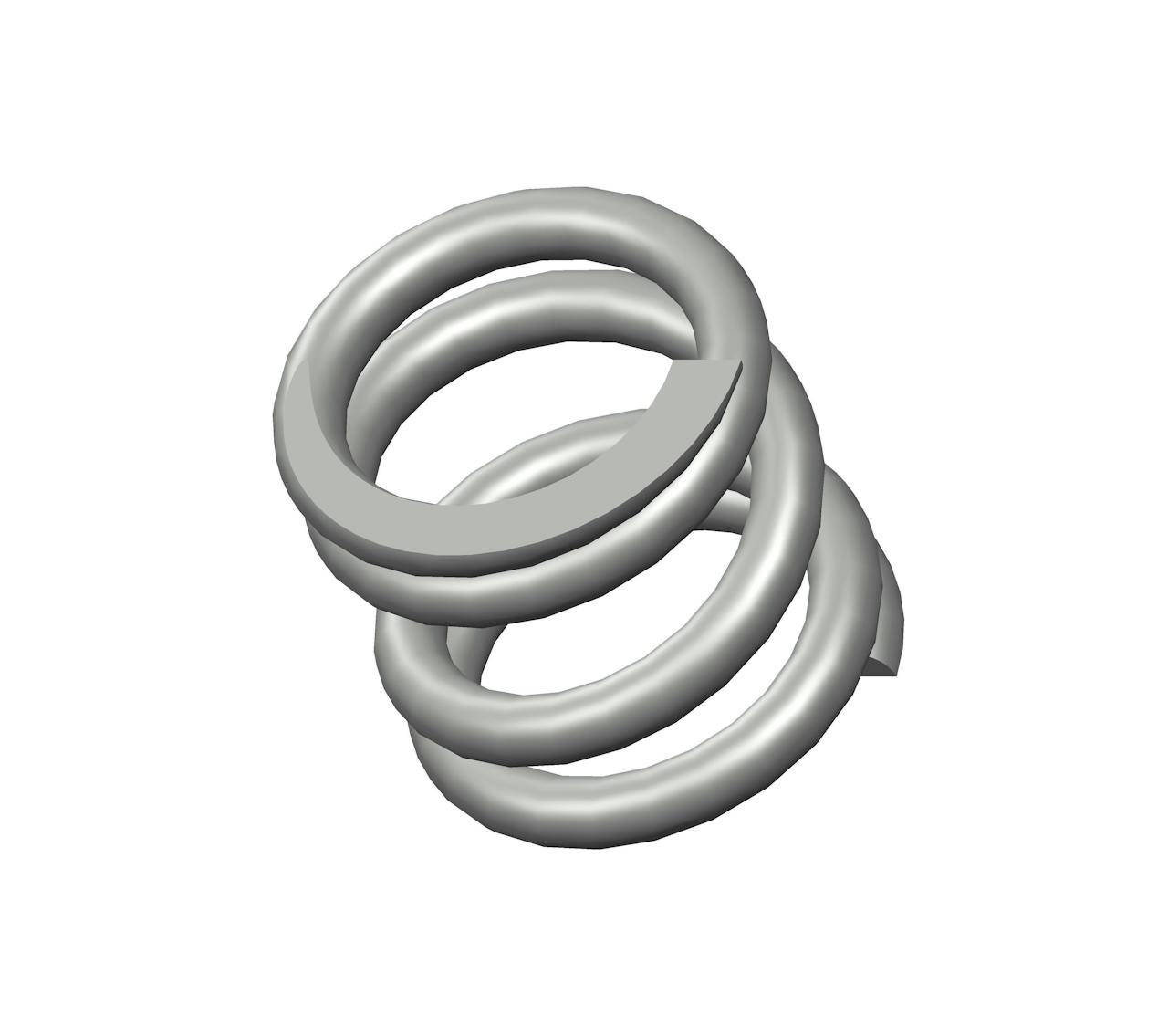

L-40CS - 0.25" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.178".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-40 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.25 in |
| Inside Diameter | 0.178 in |
| Material | Spring Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 123 lbs/in |
| SKU | L-40CS |
| Solid Length | 0.14 in |
| Suggested Max Deflection | 0.06 in |
| Suggested Max Load | 7 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.036 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-40 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 6.35 mm |
| Inside Diameter | 4.52 mm |
| Material | Spring Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 21.54 N/mm |
| SKU | L-40CS |
| Solid Length | 3.56 mm |
| Suggested Max Deflection | 1.52 mm |
| Suggested Max Load | 31.14 N |
| Total Coils | 4 |
| Wire Diameter | 0.91 mm |
The compression spring L-40CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the L-40 compression spring design exhibits exceptional tensile strength and resilience.
The L-40 design is manufactured with a free length of 0.25", with an outer diameter of 0.25", an inner diameter of 0.178", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 123 lbs/in.
The L-40CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-40 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-40 design is manufactured with a free length of 0.25", with an outer diameter of 0.25", an inner diameter of 0.178", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 123 lbs/in.
The L-40CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-40 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
