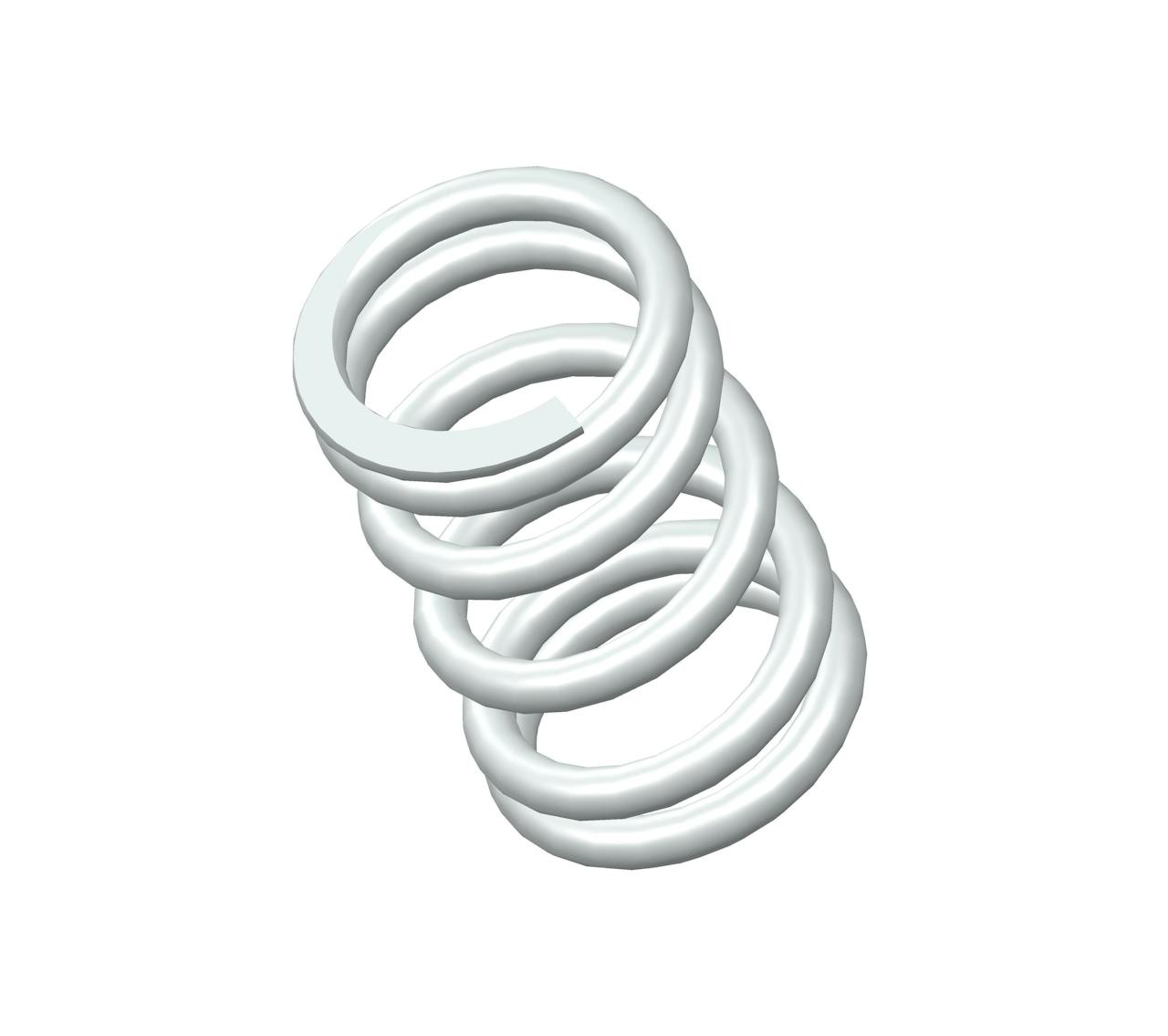

L-26CS - 0.88" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5.75 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.402".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-26 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.402 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.546 in |
| Part Type | Standard |
| Rate | 84 lbs/in |
| SKU | L-26CS |
| Solid Length | 0.41 in |
| Suggested Max Deflection | 0.25 in |
| Suggested Max Load | 21 lbf |
| Total Coils | 5.75 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-26 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 10.21 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.87 mm |
| Part Type | Standard |
| Rate | 14.71 N/mm |
| SKU | L-26CS |
| Solid Length | 10.41 mm |
| Suggested Max Deflection | 6.35 mm |
| Suggested Max Load | 93.41 N |
| Total Coils | 5.75 |
| Wire Diameter | 1.83 mm |
The compression spring L-26CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the L-26 compression spring design exhibits exceptional tensile strength and resilience.
The L-26 design is manufactured with a free length of 0.88", with an outer diameter of 0.546", an inner diameter of 0.402", and a total of 5.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 84 lbs/in.
The L-26CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-26 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-26 design is manufactured with a free length of 0.88", with an outer diameter of 0.546", an inner diameter of 0.402", and a total of 5.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 84 lbs/in.
The L-26CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-26 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
