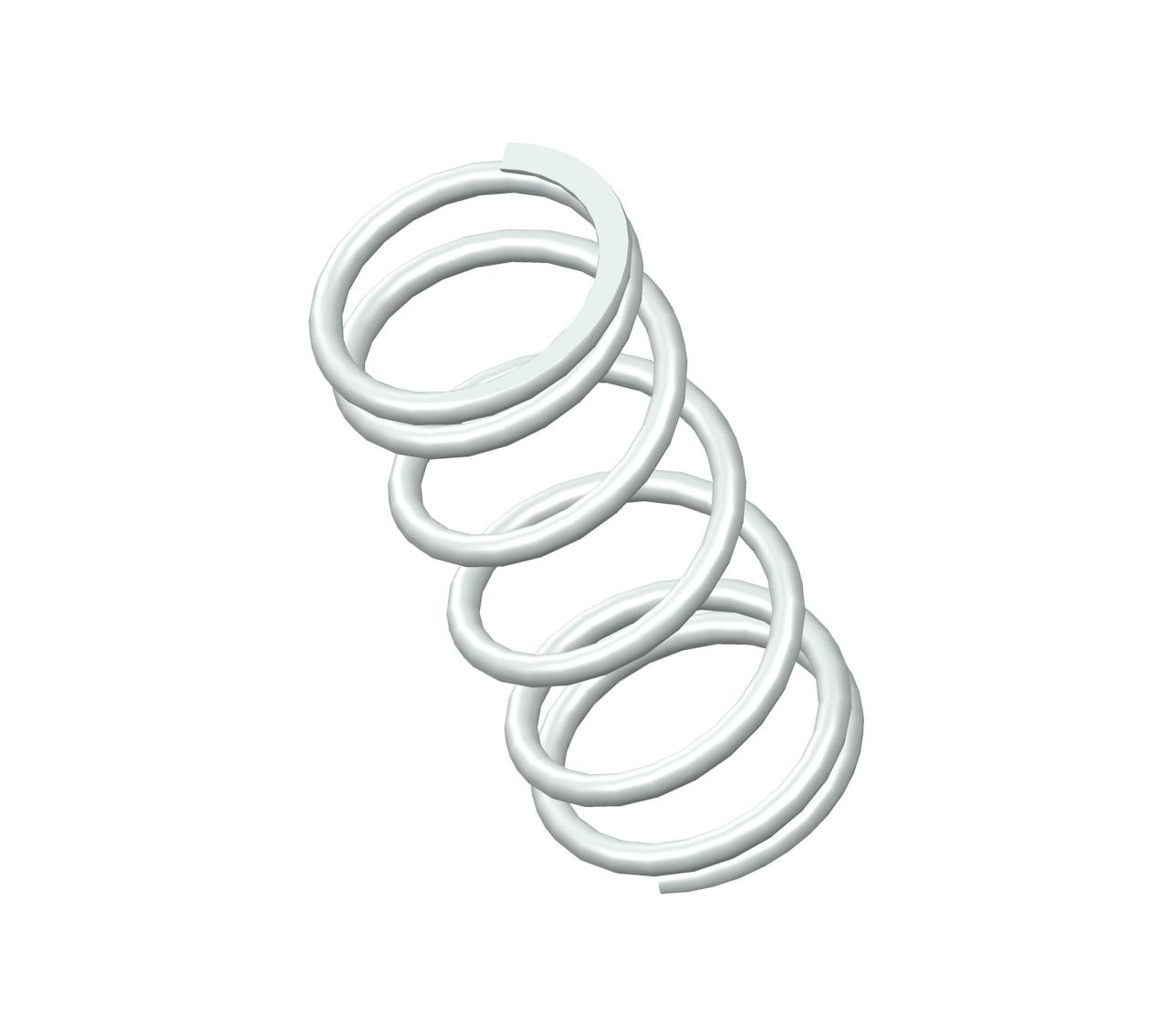

L-21CS - 1.09" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6.5 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.39".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-21 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.09 in |
| Inside Diameter | 0.39 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.484 in |
| Part Type | Standard |
| Rate | 16 lbs/in |
| SKU | L-21CS |
| Solid Length | 0.31 in |
| Suggested Max Deflection | 0.48 in |
| Suggested Max Load | 7.7 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-21 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 27.69 mm |
| Inside Diameter | 9.91 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.29 mm |
| Part Type | Standard |
| Rate | 2.8 N/mm |
| SKU | L-21CS |
| Solid Length | 7.87 mm |
| Suggested Max Deflection | 12.19 mm |
| Suggested Max Load | 34.25 N |
| Total Coils | 6.5 |
| Wire Diameter | 1.19 mm |
The compression spring L-21CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the L-21 compression spring design exhibits exceptional tensile strength and resilience.
The L-21 design is manufactured with a free length of 1.09", with an outer diameter of 0.484", an inner diameter of 0.39", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.
The L-21CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-21 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-21 design is manufactured with a free length of 1.09", with an outer diameter of 0.484", an inner diameter of 0.39", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.
The L-21CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-21 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
